Search › Model › MCV20

MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories

5,941 items

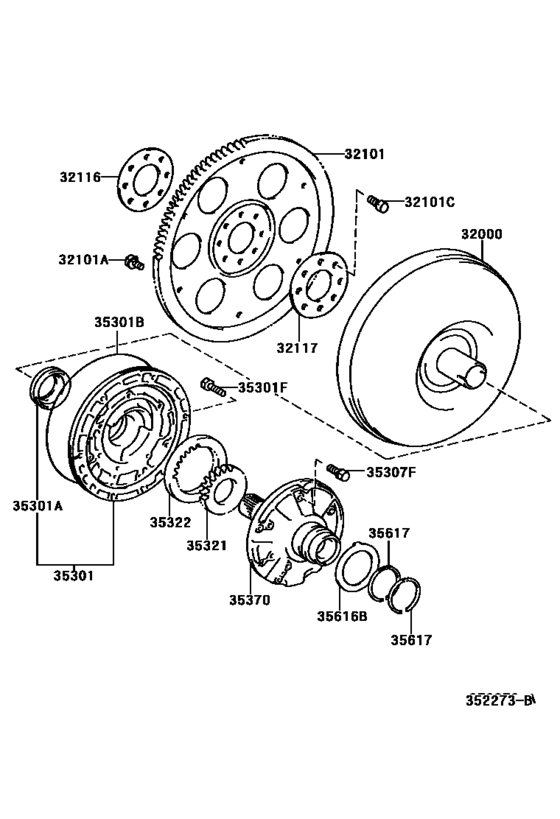

Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25) 66

#	OEM	Part name
32000	32000-33030	Converter Assy, Torque
32000	32000-48011	Converter Assy, Torque
32101	32101-33010	Gear Sub-Assy, Drive Plate & Ring
32101	32101-48010	Gear Sub-Assy, Drive Plate & Ring
32101	90109-09001	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09018	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09025	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09019	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32116	32116-32020	Spacer, Drive Plate, Front
32117	32117-32020	Spacer, Drive Plate, Rear
35301	35301-33010	Body Sub-Assy, Front Oil Pump
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90311-38064	Seal, Oil (For Front Oil Pump)
35301	90301-99079	Ring, O (For Front Oil Pump Body)
35301	90301-99099	Ring, O (For Front Oil Pump Body)
35301	90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)
35307	90119-06808	Bolt (For Stator Shaft)
35307	90119-06559	Bolt (For Stator Shaft)
35307	90148-60027	Bolt (For Stator Shaft)
35321	35321-21010	Gear, Front Oil Pump Drive
35321	35035-28H00	Body Sub-assy, Fr Oil Pump & Gear
35321	35321-21020	Gear, Front Oil Pump Drive
35321	35321-21030	Gear, Front Oil Pump Drive
35321	35321-21040	Gear, Front Oil Pump Drive
35321	35321-21050	Gear, Front Oil Pump Drive
35321	35321-21060	Gear, Front Oil Pump Drive
35321	35321-28060	Gear, Front Oil Pump Drive
35321	35321-21070	Gear, Front Oil Pump Drive
35321	35321-28070	Gear, Front Oil Pump Drive
35321	35321-21080	Gear, Front Oil Pump Drive
35321	35321-28080	Gear, Front Oil Pump Drive
35321	35321-06030	Gear, Front Oil Pump Drive
35321	35321-21090	Gear, Front Oil Pump Drive
35321	35321-28090	Gear, Front Oil Pump Drive
35321	35321-21100	Gear, Front Oil Pump Drive
35321	35321-28100	Gear, Front Oil Pump Drive
35321	35321-33010	Gear, Front Oil Pump Drive
35321	35321-33030	Gear, Front Oil Pump Drive
35321	35321-33050	Gear, Front Oil Pump Drive
35322	35322-21010	Gear, Front Oil Pump Driven
35322	35322-21020	Gear, Front Oil Pump Driven
35322	35322-21030	Gear, Front Oil Pump Driven
35322	35322-21040	Gear, Front Oil Pump Driven
35322	35322-21050	Gear, Front Oil Pump Driven
35322	35322-21060	Gear, Front Oil Pump Driven
35322	35322-28060	Gear, Front Oil Pump Driven
35322	35322-21070	Gear, Front Oil Pump Driven
35322	35322-28070	Gear, Front Oil Pump Driven
35322	35322-21080	Gear, Front Oil Pump Driven
35322	35322-28080	Gear, Front Oil Pump Driven
35322	35322-21090	Gear, Front Oil Pump Driven
35322	35322-28090	Gear, Front Oil Pump Driven
35322	35322-21100	Gear, Front Oil Pump Driven
35322	35322-28100	Gear, Front Oil Pump Driven
35322	35322-33010	Gear, Front Oil Pump Driven
35322	35322-33030	Gear, Front Oil Pump Driven
35322	35322-33050	Gear, Front Oil Pump Driven
35370	35370-21010	Shaft Assy, Stator
35370	35370-21020	Shaft Assy, Stator
35370	35370-12110	Shaft Assy, Stator
35370	35370-21030	Shaft Assy, Stator
35370	35370-33020	Shaft Assy, Stator
35616	35616-32010	Washer, Clutch Drum Thrust (For Stator Shaft)
35617	35613-21010	Ring, Forward Clutch Dram Oil Seal
35617	35617-32011	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
32000-33030	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
32000-48011	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
32101-33010	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
32101-48010	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
32116-32020	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
32117-32020	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35035-28H00	Body Sub-assy, Fr Oil Pump & Gear	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35301-33010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-06030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21010	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-21100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-28060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-28070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-28080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-28090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-28100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-33010	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-33030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35321-33050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-21100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-28060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-28070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-28080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-28090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-28100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-33010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-33030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35322-33050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35370-12110	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35370-21010	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35370-21020	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35370-21030	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35370-33020	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35613-21010	Ring, Forward Clutch Dram Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35616-32010	Washer, Clutch Drum Thrust (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35617-32011	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90109-09001	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90119-06559	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90119-06808	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90119-09018	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90119-09019	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90119-09025	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90148-60027	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90301-99079	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90301-99099	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90311-38064	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
