MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories

5,941 items

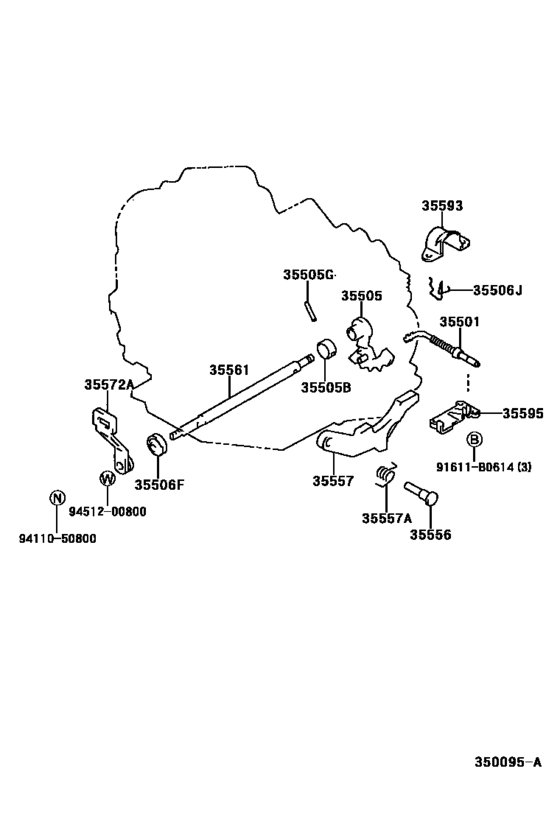

Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25) 28

#	OEM	Part name
35501	35501-21010	Rod Sub-Assy, Parking Lock
35501	35501-33010	Rod Sub-Assy, Parking Lock
35505	35505-21010	Lever Sub-Assy, Manual Valve
35505	35505-32040	Lever Sub-Assy, Manual Valve
35505	90560-20006	Spacer (For Manual Valve Lever)
35505	90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506	90311-12002	Oil Seal, Type T
35506	90524-09001	Spring, Retainer (For Manual Valve Lever Shaft)
35520	35520-33050	Cable Assy, Throttle
35523	35523-33070	Clamp, Throttle Cable
35523	35523-32010	Clamp, Throttle Cable
35556	35556-21010	Shaft, Parking Lock Pawl
35556	35556-32020	Shaft, Parking Lock Pawl
35557	35557-33010	Pawl, Parking Lock
35557	35590-21010	Pawl, Parking Lock
35557	90506-18077	Spring, Torsion (For Parking Lock Pawl)
35557	90949-03043	Spring, Torsion (For Parking Lock Pawl)
35561	35561-21010	Shaft, Manual Valve Lever
35561	35561-33010	Shaft, Manual Valve Lever
35572	35572-33010	Lever, Transmission Control Shaft
35572	35572-48010	Lever, Transmission Control Shaft
35593	35593-33010	Sleeve, Cam Guide
35595	35595-21010	Bracket, Parking Lock Pawl
35595	35595-33010	Bracket, Parking Lock Pawl
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160814	91611-60814	Bolt
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
35501-21010	Rod Sub-Assy, Parking Lock	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35501-33010	Rod Sub-Assy, Parking Lock	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35505-21010	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35505-32040	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35520-33050	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35523-32010	Clamp, Throttle Cable	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35523-33070	Clamp, Throttle Cable	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35556-21010	Shaft, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35556-32020	Shaft, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35557-33010	Pawl, Parking Lock	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35561-21010	Shaft, Manual Valve Lever	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35561-33010	Shaft, Manual Valve Lever	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35572-33010	Lever, Transmission Control Shaft	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35572-48010	Lever, Transmission Control Shaft	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35590-21010	Pawl, Parking Lock	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35593-33010	Sleeve, Cam Guide	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35595-21010	Bracket, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
35595-33010	Bracket, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90311-12002	Oil Seal, Type T	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90506-18077	Spring, Torsion (For Parking Lock Pawl)	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90524-09001	Spring, Retainer (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90560-20006	Spacer (For Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
90949-03043	Spring, Torsion (For Parking Lock Pawl)	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
91611-60814	Bolt	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
94110-50800	Nut(For Repair Actuator Set)	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Throttle Link & Valve Lever (Atm) ([04.1997 - 08.1999] A541E,A541F (9704-9908)MCV2#,SXV25 ; (9908- )MCV21,25,SXV 25)
