MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories

5,941 items

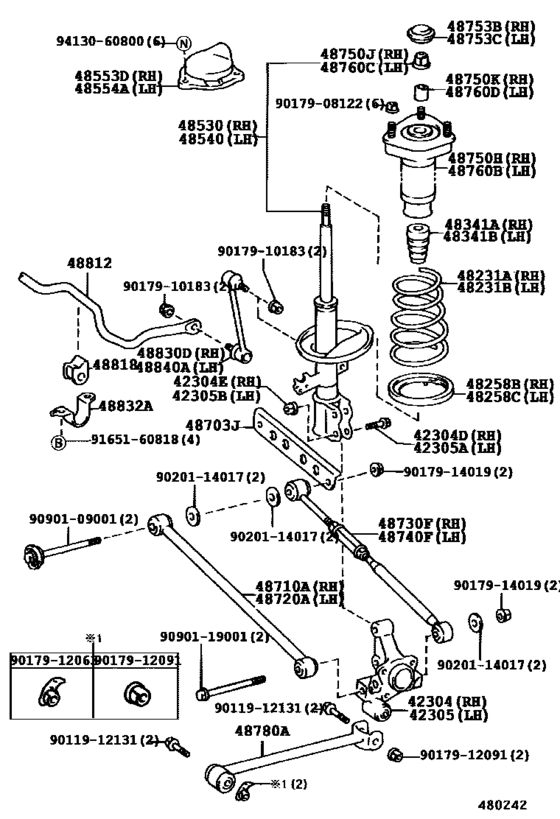

Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20) 42

#	OEM	Part name
42304	42304-20090	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90901-05001	Bolt (For Rear Axle Carrier Rh)
42304	90178-15001	Nut (For Rear Axle Carrier Rh)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-20090	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-33350	Spring, Coil, Rear Rh
48231	48231-33460	Spring, Coil, Rear Rh
48258	48258-32020	Insulator, Rear Coil Spring, Lower Rh
48341	48341-32053	Bumper, Rear Spring, No.1 Rh
48341	48341-32054	Bumper, Rear Spring, No.1
48530	48530-39445	Absorber Assy, Shock, Rear Rh
48540	48540-39305	Absorber Assy, Shock, Rear Lh
48553	48553-33030	Cap, Rear Shock Absorber, Rh
48554	48554-33030	Cap, Rear Shock Absorber, Lh
48703	48715-33020	Washer, No.2(For Rear Suspension Arm)
48710	48710-33060	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-33050	Arm Assy, Rear Suspension, No.2 Rh
48740	48740-33060	Arm Assy, Rear Suspension, No.2 Lh
48750	48750-33020	Support Assy, Rear Suspension, Rh
48750	90177-14001	Nut(For Rear Support To Rear Shock Absorber Rh)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48760	48760-33020	Support Assy Rear Suspension, Lh
48780	48780-33010	Rod Assy, Strut, Rear
48812	48812-33090	Bar, Stabilizer, Rear
48812	48812-AA030	Bar, Stabilizer, Rear
48818	48818-33040	Bush, Stabilizer, Rear
48830	48830-33010	Link Assy, Rear Stabilizer
48832	48832-33020	Bracket, Rear Stabilizer Bar, No.1
9011912131	90119-12131	Bolt(For Strut Rod)
9011912131	90080-11133	Bolt(For Strut Rod)
9017908122	90179-08122	Nut(For Rear Suspension Support)
9017910183	90179-10183	Nut(For Front Stabilizer Link)
9017912063	90179-12063	Nut(For Rear Suspension Arm)
9017912091	90179-12091	Nut(For Front Suspension Lower Arm)
9017914019	90179-14019	Nut
9020114017	90201-14017	Washer(For Rear Suspension Arm)
9090109001	90901-09001	Bolt(For Rear Suspension Arm)
9090119001	90901-19001	Bolt(For Rear Suspension Arm)
9165160818	91651-60818	BOLTWWASHER
9413060800	94130-60800	Nut(For Clutch Pedal Stopper)
9413060800	90170-A0003	New Genuine Part

OEM	Part name	Category
42304-20090	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
42305-20090	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48231-33350	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48231-33460	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48258-32020	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48341-32053	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48341-32054	Bumper, Rear Spring, No.1	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48530-39445	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48540-39305	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48553-33030	Cap, Rear Shock Absorber, Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48554-33030	Cap, Rear Shock Absorber, Lh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48710-33060	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48715-33020	Washer, No.2(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48730-33050	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48740-33060	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48750-33020	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48760-33020	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48780-33010	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48812-33090	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48812-AA030	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48818-33040	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48830-33010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
48832-33020	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90170-A0003	New Genuine Part	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90177-14001	Nut(For Rear Support To Rear Shock Absorber Rh)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90178-15001	Nut (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90179-12063	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90179-14019	Nut	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90201-14017	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90901-05001	Bolt (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90901-09001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
90901-19001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
91651-60818	BOLTWWASHER	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
94130-60800	Nut(For Clutch Pedal Stopper)	Rear Spring & Shock Absorber ([04.1997 - ] (9704- )MCV20,21,SXV20)
