Search › Model › MCV20

MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories

5,941 items

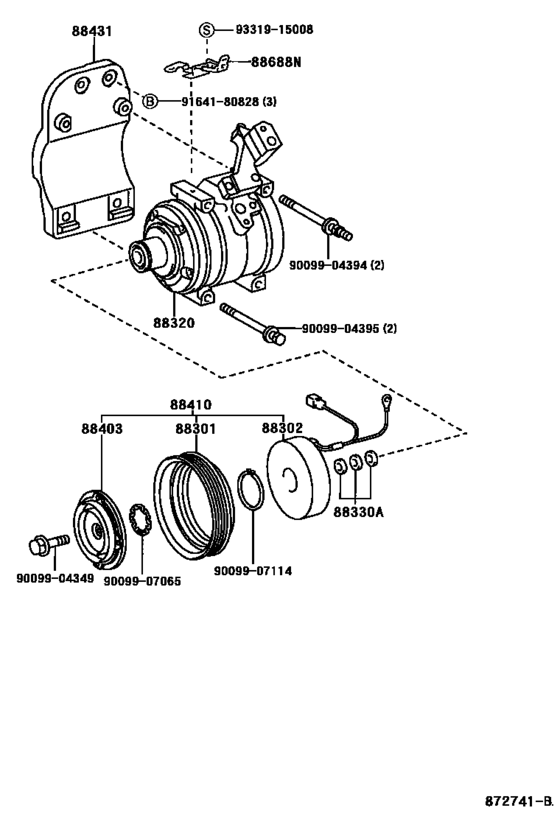

Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20) 22

#	OEM	Part name
88301	88412-33010	Rotor Sub-Assy, Magnet Clutch
88301	88412-48020	Rotor Sub-Assy, Magnet Clutch
88302	88411-33050	Stator Sub-Assy, Magnet Clutch
88302	88411-44010	Stator Sub-Assy, Magnet Clutch
88320	88320-33120	Compressor Assy, Cooler
88320	88320-33H90	Compressor Assy, Cooler
88320	88320-33140	Compressor Assy, Cooler
88330	88335-14020	Washer
88403	88403-30290	Hub Sub-Assy, Magnet Clutch
88403	88403-32010	Hub Sub-Assy, Magnet Clutch
88410	88410-33110	Clutch Assy, Magnet
88410	88410-33120	Clutch Assy, Magnet
88431	88431-33020	Bracket, Compressor Mounting, No.1
88431	88431-33041	Bracket, Compressor Mounting, No.1
88688	88688-33350	Bracket, Cooler
9009904349	90099-04349	Bolt, Magnet Clutch Setting
9009904394	90099-04394	Bolt
9009904395	90099-04395	BOLT W-WASHER
9009907065	90099-07065	SNAP RING
9009907114	90099-07114	Ring, Snap (For Magnet Clutch)
9164180828	91641-80828	New Genuine Part
9331915008	93319-15008	SCREW

OEM	Part name	Category
88320-33120	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88320-33140	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88320-33H90	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88335-14020	Washer	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88403-30290	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88403-32010	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88410-33110	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88410-33120	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88411-33050	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88411-44010	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88412-33010	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88412-48020	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88431-33020	Bracket, Compressor Mounting, No.1	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88431-33041	Bracket, Compressor Mounting, No.1	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
88688-33350	Bracket, Cooler	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
90099-04349	Bolt, Magnet Clutch Setting	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
90099-04394	Bolt	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
90099-04395	BOLT W-WASHER	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
90099-07065	SNAP RING	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
90099-07114	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
91641-80828	New Genuine Part	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
93319-15008	SCREW	Heating & Air Conditioning - Compressor ([08.1999 - ] (9908- )MCV20)
