MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories
MCV20 ×

← Back to categories

5,941 items

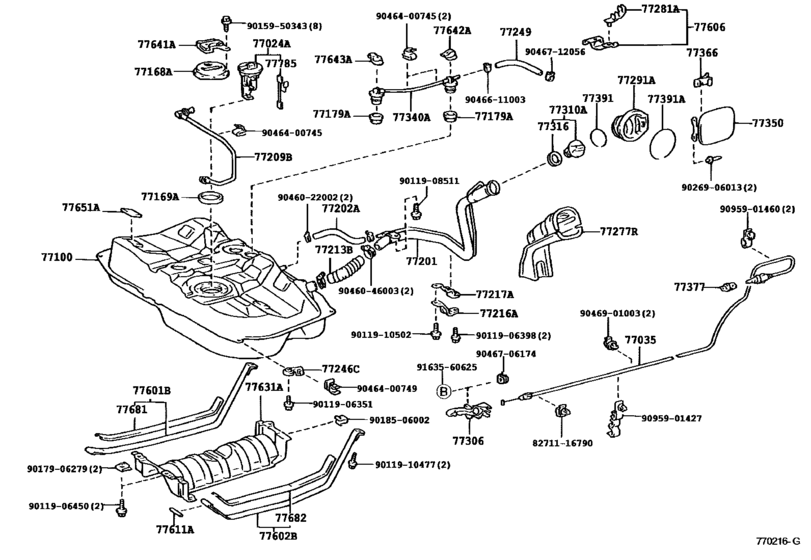

Fuel Tank & Tube ([04.1997 - ] (9704- )MCV20,21,SXV20) 80
#OEMPart name
77024 77024-33010 Plate Sub-Assy, Fuel Suction
77035 77035-33090 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-39335 Tank Assy, Fuel
77100 77001-39395 Tank Assy, Fuel
77100 77001-39355 Tank Assy, Fuel
77168 77168-33030 Plate, Fuel Tank Vent Tube Set
77169 77169-33010 Gasket, Fuel Pump Bracket
77179 77179-33010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-33040 Pipe Sub-Assy, Fuel Tank Inlet
77202 95312-13024 Hose, Fuel, No.1 (For Breather Tube)
77202 95313-13024 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77209 77209-33010 Tube Sub-Assy, Fuel Pump
77213 77213-33050 Hose, Fuel Tank To Filler Pipe
77213 77213-33120 Hose, Fuel Tank To Filler Pipe
77213 77213-33060 Hose, Fuel Tank To Filler Pipe
77216 77216-33010 Support, Fuel Tank Filler Pipe, No.1
77217 77217-33010 Support, Fuel Tank Filler Pipe, No.2
77246 77246-33010 Support, Fuel Main Tube
77249 95327-06030 Hose, Fuel Emission
77249 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77249 95337-06020 Hose, Differential Pressure Control
77277 77277-33040 Protector, Fuel Tank Filler Pipe
77277 77277-33041 Protector, Fuel Tank Filler Pipe
77281 77281-33010 Clamp, Fuel Filler Pipe
77291 77291-33030 Shield, Fuel Tank Filler Pipe
77306 77306-21010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77340 77340-33020 Valve Assy, Fuel Cut Off W/tube
77350 77350-33070 Lid Assy, Fuel Filler Opening
77366 77360-22020 Spring, Fuel Filler Opening Lid Hinge
77366 77360-33020 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-20030 Ring, Fuel Inlet Box
77601 77601-33010 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-33010 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-33010 Protector Sub-Assy, Fuel Tank, No.1
77611 90250-08019 Pin (For Fuel Tank Band)
77631 77631-33020 Protector, Fuel Tank, Lower Center
77631 77631-33021 Protector, Fuel Tank, Lower Center
77641 77641-33010 Protector, Fuel Tank, No.1
77642 77642-33010 Protector, Fuel Tank, No.2
77642 77642-33040 Protector, Fuel Tank, No.2
77643 77643-33010 Protector, Fuel Tank, No.3
77643 77643-33030 Protector, Fuel Tank, No.3
77651 77652-32030 Cushion, Fuel Tank, No.1
77681 77681-32060 Seat, Fuel Tank Band, Rh
77785 77785-33020 Harness, Fuel Pump
8271116790 82711-16790 Clamp, Wiring Harness
9011906351 90119-06351 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011906450 90119-06450 New Genuine Part
9011906450 90119-06442 BOLT WWASHER
9011908511 90119-08511 BOLT
9011910477 90119-10477 New Genuine Part
9011910477 91655-B1040 BOLT WWASHER
9011910502 90119-10502 BOLT WWASHER
9015950343 90159-50343 SCREW, W-WASHER
9017906279 90179-06279 New Genuine Part
9018506002 90185-06002 NUT CLIP
9026906013 90269-06013 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046400745 90464-00745 Clamp, Fuel Tube, No.4
9046400749 90464-00749 New Genuine Part
9046611003 90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)
9046611003 90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)
9046706174 90467-06174 New Genuine Part
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046901003 90469-01003 Clamp(For Hood Lock Control Cable)
9095901427 90959-01427 New Genuine Part
9095901460 90959-01460 Clamp (For Fuel Lid Lock Control Cable)
9163560625 91635-60625 Screw(For Steering Column Tube)
9163560625 91631-60622 Screw
