Search › Model › MCV20

MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories

5,941 items

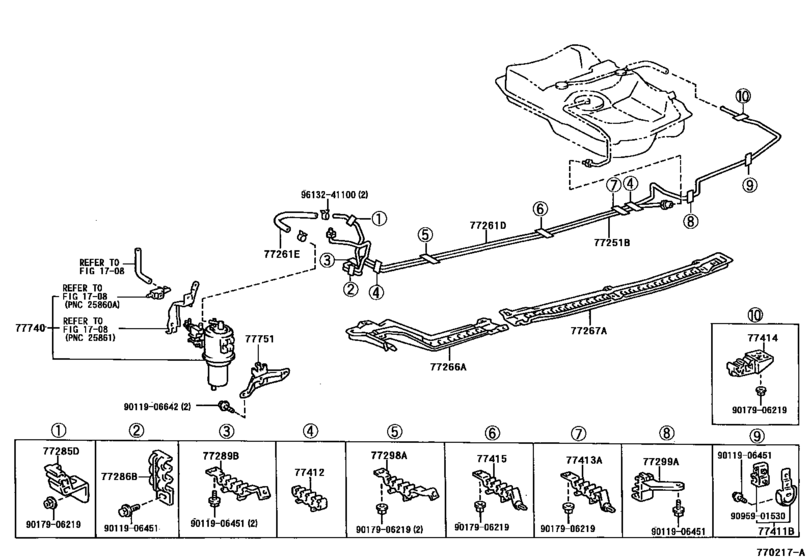

Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20) 45

#	OEM	Part name
77251	77251-33050	Tube, Fuel Main
77251	77251-33110	Tube, Fuel Main
77261	77261-33040	Tube, Fuel Tank To Canister
77261	77261-33100	Tube, Fuel Tank To Canister
77261	77261-33101	Tube, Fuel Tank To Canister
77261	95333-06030	Hose, Fuel
77261	95338-06030	HOSE, FUEL
77266	77266-33020	Protector, Fuel Tube, No.1
77267	77267-33020	Protector, Fuel Tube, No.2
77285	77285-33020	Clamp, Fuel Tube, No.1
77285	77285-33050	Clamp, Fuel Tube, No.1
77286	77286-33010	Clamp, Fuel Tube W/grommet, No.2
77286	77286-33020	Clamp, Fuel Tube W/grommet, No.2
77289	77289-33020	Clamp, Fuel Tube, No.3
77289	77289-33030	Clamp, Fuel Tube, No.3
77298	77298-33020	Clamp, Fuel Tube, No.4
77298	77298-33030	Clamp, Fuel Tube, No.4
77298	77298-06030	Clamp, Fuel Tube, No.4
77299	77299-33020	Clamp, Fuel Tube, No.5
77299	77299-33030	Clamp, Fuel Tube, No.5
77411	77411-33020	Support, Fuel Tube Grommet, No.1
77411	77411-33030	Support, Fuel Tube Grommet, No.1
77412	77412-33020	Support, Fuel Tube Grommet, No.2
77412	77412-33030	Support, Fuel Tube Grommet, No.2
77412	77412-06030	Support, Fuel Tube Grommet, No.2
77413	77413-33020	Support, Fuel Tube Grommet, No.3
77413	77413-33030	Support, Fuel Tube Grommet, No.3
77414	77414-33020	Support, Fuel Tube Grommet, No.4
77414	77414-33030	Support, Fuel Tube Grommet, No.4
77415	77415-33020	Support, Fuel Tube Grommet, No.5
77415	77415-33030	Support, Fuel Tube Grommet, No.5
77415	77415-06030	Support, Fuel Tube Grommet, No.5
77740	77740-33100	Canister Assy, Charcoal
77740	77740-41040	Canister Assy, Charcoal
77740	77740-41041	Canister Assy, Charcoal
77751	77751-33050	Bracket, Charcoal Canister Base
77751	77751-33051	Bracket, Charcoal Canister Base
9011906451	90119-06451	BOLT WWASHER
9011906642	90119-06642	New Genuine Part
9011906642	90119-06512	BOLT WWASHER
9017906219	90179-06219	Nut
9017906219	90182-A0005	Nut
9095901530	90959-01530	Grommet, Fuel Tube
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100	96132-51100	Clip (For Hose)

OEM	Part name	Category
77251-33050	Tube, Fuel Main	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77251-33110	Tube, Fuel Main	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77261-33040	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77261-33100	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77261-33101	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77266-33020	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77267-33020	Protector, Fuel Tube, No.2	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77285-33020	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77285-33050	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77286-33010	Clamp, Fuel Tube W/grommet, No.2	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77286-33020	Clamp, Fuel Tube W/grommet, No.2	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77289-33020	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77289-33030	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77298-06030	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77298-33020	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77298-33030	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77299-33020	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77299-33030	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77411-33020	Support, Fuel Tube Grommet, No.1	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77411-33030	Support, Fuel Tube Grommet, No.1	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77412-06030	Support, Fuel Tube Grommet, No.2	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77412-33020	Support, Fuel Tube Grommet, No.2	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77412-33030	Support, Fuel Tube Grommet, No.2	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77413-33020	Support, Fuel Tube Grommet, No.3	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77413-33030	Support, Fuel Tube Grommet, No.3	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77414-33020	Support, Fuel Tube Grommet, No.4	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77414-33030	Support, Fuel Tube Grommet, No.4	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77415-06030	Support, Fuel Tube Grommet, No.5	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77415-33020	Support, Fuel Tube Grommet, No.5	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77415-33030	Support, Fuel Tube Grommet, No.5	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77740-33100	Canister Assy, Charcoal	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77740-41040	Canister Assy, Charcoal	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77740-41041	Canister Assy, Charcoal	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77751-33050	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
77751-33051	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
90119-06451	BOLT WWASHER	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
90119-06512	BOLT WWASHER	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
90119-06642	New Genuine Part	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
90179-06219	Nut	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
90182-A0005	Nut	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
90959-01530	Grommet, Fuel Tube	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
95338-06030	HOSE, FUEL	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([04.1997 - 08.1999] (9704-9908)MCV20,21,SXV20 ; (9908- )MCV21,SXV 20)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 211
Collected: 2026-07-30
