Search › Model › MCV20

MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories

5,941 items

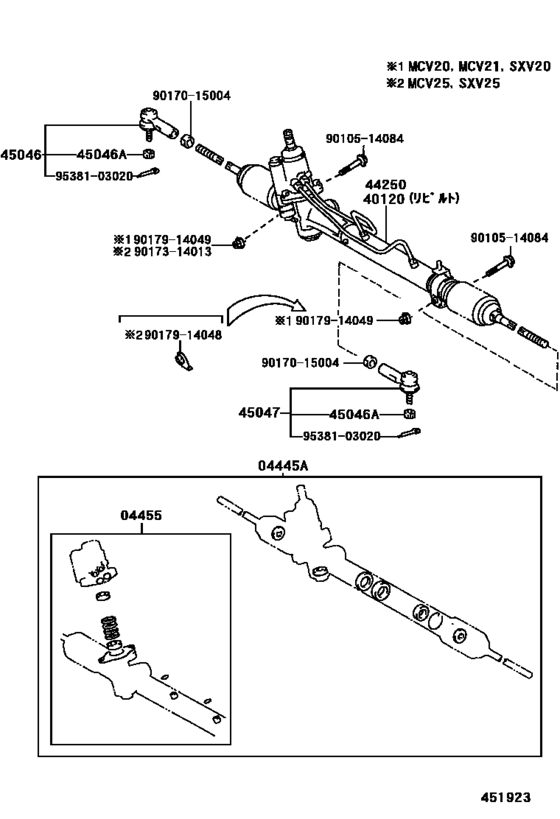

Front Steering Gear & Link ([04.1997 - ] (9704- )) 69

#	OEM	Part name
4445	04445-33080	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455	04455-33020	Gasket Kit, Power Steering Control Valve Overhole
40120	40120-33181	Gear Assy,power Steering,rebuilt
40120	40120-33171	Gear Assy,power Steering,rebuilt
44201	44201-33160	Valve Sub-Assy, Power Steering Control
44201	90560-33003	Spacer(For Power Steering Control Valve)
44201	90311-19010	Seal, Oil(For Power Steering Control Valve)
44201	90363-19007	Bearing(For Power Steering Control Valve)
44201	90365-19001	Bearing(For Power Steering Control Valve)
44201	90364-25014	Bearing(For Power Steering Control Valve Center)
44201	90363-12013	Bearing(For Power Steering Control Valve Lower)
44204	44204-33090	Rack Sub-Assy, Power Steering
44204	90080-56013	Ring(For Rack Steering Piston)
44204	90301-36008	Ring(For Rack Steering Piston)
44204	90562-40003	Ring(For Rack Steering Piston)
44205	44205-33010	Stopper Sub-Assy, Cylinder End
44205	90301-36009	Ring, O(For Power Steering Rack Bush)
44205	90080-31010	Seal, Oil(For Power Steering Rack Bush)
44205	90311-27001	Seal, Oil(For Power Steering Rack Bush)
44206	90080-31038	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90311-27006	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44210	44210-33160	Valve Assy, Power Steering Control
44210	44210-33161	Valve Assy, Power Steering Control
44210	90311-26003	Seal, Oil(For Power Steering Control Valve)
44211	44211-33020	Housing, Control Valve
44211	44211-33070	Housing, Control Valve
44211	44211-33021	Housing, Control Valve
44218	44218-12020	Gasket, Valve Housing
44240	44240-33021	Housing Assy, Power Steering Rack
44250	44250-33180	Gear Assy, Power Steering(For Rack & Pinion)
44250	44250-33171	Gear Assy, Power Steering(For Rack & Pinion)
44250	44250-33181	Gear Assy, Power Steering(For Rack & Pinion)
44275	44275-33020	Stopper, Cylinder End
44275	90580-18002	Wire(For Cylinder End Stopper)
44275	90080-58122	Wire(For Cylinder End Stopper)
44283	44283-33010	Cap, Rack Housing
44283	90179-10048	Nut, Lock(For Power Steering Control Valve)
44418	44418-33050	Tube, Steering Right Turn Pressure
44418	90301-03001	Seat, Union(For Steering Turn Pressure Tube)
44418	90080-30023	Ring, O(For Steering Turn Pressure Tube)
44419	44419-33050	Tube, Steering Left Turn Pressure
45046	45046-29255	End Sub-Assy, Tie Rod
45046	90171-12028	Nut, Castle(For Pitman Arm)
45222	45222-33010	Cover, Steering Gear Dust
45503	45503-39135	End Sub-Assy, Steering Rack
45503	90214-14002	Washer, Claw(For Power Steering Rack End)
45515	45515-33011	Bracket, Steering Rack Housing, No.2
45515	90386-15004	Collar, Steering Rack Housing Bracket
45517	45517-33021	Grommet, Steering Rack Housing, No.2
45523	45504-06010	Guide, Rack(For Steering Gear)
45523	45504-33010	Guide, Rack(For Steering Gear)
45523	90501-26075	Spring(For Power Steering Rack Guide)
45524	45524-33010	Cap, Steering Rack Guide Spring
45524	45524-33020	Cap, Steering Rack Guide Spring
45524	90179-36002	Nut(For Power Steering Pinion Cap)
45535	45535-06020	Boot, Steering Rack, No.1
45535	45535-33020	Boot, Steering Rack, No.1
45535	90467-19017	Clip(For Steering Rack Boot)
45535	90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)
45535	90460-58006	Clamp(For Steering Rack Boot No.1)
9010514084	90105-14084	Bolt(For Front Suspension Lower Arm)
9014930004	90149-30004	Screw(For Steering Rack Boot Clamp)
9017015004	90170-15004	Nut, Rack End Lock
9017314013	90173-14013	New Genuine Part
9017914048	90179-14048	Nut(For Front Suspension Lower Arm)
9017914049	90179-14049	New Genuine Part
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
04445-33080	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
04455-33020	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([04.1997 - ] (9704- ))
40120-33171	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([04.1997 - ] (9704- ))
40120-33181	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44201-33160	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44204-33090	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44205-33010	Stopper Sub-Assy, Cylinder End	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44210-33160	Valve Assy, Power Steering Control	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44210-33161	Valve Assy, Power Steering Control	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44211-33020	Housing, Control Valve	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44211-33021	Housing, Control Valve	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44211-33070	Housing, Control Valve	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44218-12020	Gasket, Valve Housing	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44240-33021	Housing Assy, Power Steering Rack	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44250-33171	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44250-33180	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44250-33181	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44275-33020	Stopper, Cylinder End	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44283-33010	Cap, Rack Housing	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44418-33050	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([04.1997 - ] (9704- ))
44419-33050	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45046-29255	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45222-33010	Cover, Steering Gear Dust	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45503-39135	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45504-06010	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45504-33010	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45515-33011	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45517-33021	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45524-33010	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45524-33020	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45535-06020	Boot, Steering Rack, No.1	Front Steering Gear & Link ([04.1997 - ] (9704- ))
45535-33020	Boot, Steering Rack, No.1	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90080-30023	Ring, O(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90080-31010	Seal, Oil(For Power Steering Rack Bush)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90080-31038	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90080-56013	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90080-58122	Wire(For Cylinder End Stopper)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90105-14084	Bolt(For Front Suspension Lower Arm)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90149-30004	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90170-15004	Nut, Rack End Lock	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90173-14013	New Genuine Part	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90179-10048	Nut, Lock(For Power Steering Control Valve)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90179-14048	Nut(For Front Suspension Lower Arm)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90179-14049	New Genuine Part	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90301-03001	Seat, Union(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90301-36008	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90301-36009	Ring, O(For Power Steering Rack Bush)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90311-19010	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90311-26003	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90311-27001	Seal, Oil(For Power Steering Rack Bush)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90311-27006	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90363-12013	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90363-19007	Bearing(For Power Steering Control Valve)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90364-25014	Bearing(For Power Steering Control Valve Center)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90365-19001	Bearing(For Power Steering Control Valve)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90386-15004	Collar, Steering Rack Housing Bracket	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90460-58006	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90467-19017	Clip(For Steering Rack Boot)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90501-26075	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90560-33003	Spacer(For Power Steering Control Valve)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90562-40003	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
90580-18002	Wire(For Cylinder End Stopper)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([04.1997 - ] (9704- ))
