Search › Model › MCV20

MCV20

Toyota MARK-2 · 1997 · 5,941 parts · 211 categories

5,941 items

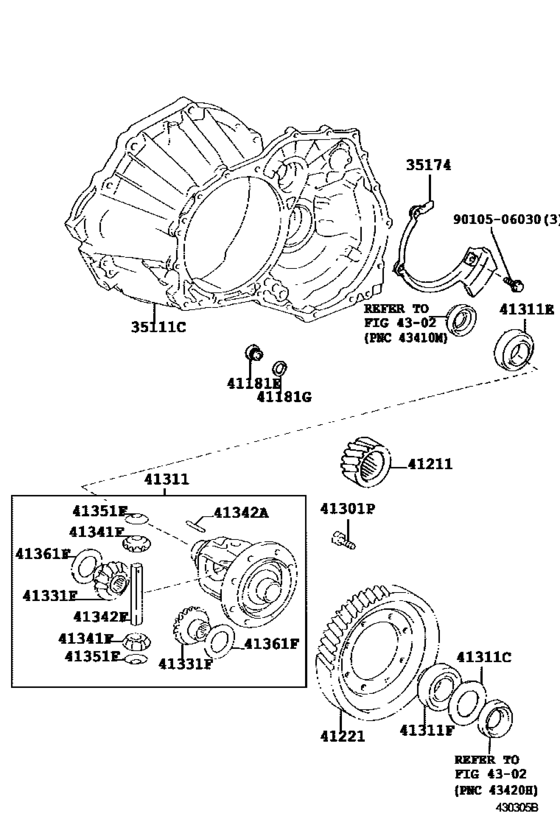

Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20) 73

#	OEM	Part name
35111	35105-48010	Housing, Transaxle
35111	35104-28083	Case Sub-Assy, Automatic Transaxle
35111	35105-28013	Housing, Transaxle
35111	35105-48060	Cover Sub-assy, Transmission Case Side
35111	90105-06320	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90301-06008	Ring, O (For Transfer Oil Strainer)
35111	90301-10189	Ring, O(For Oil Cooler Tube Union)
35174	35174-48010	Separator, Transaxle Housing Oil
41181	90341-18021	Plug, Filler(Hv)
41181	90430-18008	Gasket
41181	90430-T0021	Gasket(For Manual Transmission Filler Plug)
41211	41211-33040	Pinion, Differential Drive
41211	41211-33090	Pinion, Differential Drive
41221	41221-33040	Gear, Front Differential Ring
41221	41221-33090	Gear, Front Differential Ring
41301	90105-12303	Bolt (For Front Differential Ring Gear Set)
41311	41301-33020	Case, Front Differential
41311	41301-48010	Case, Front Differential
41311	41301-28080	Case, Front Differential
41311	90564-76001	Shim(For Differential Case)
41311	90564-76002	Shim(For Differential Case)
41311	90564-76003	Shim(For Differential Case)
41311	90564-76004	Shim(For Differential Case)
41311	90564-76005	Shim(For Differential Case)
41311	90564-76006	Shim(For Differential Case)
41311	90564-76007	Shim(For Differential Case)
41311	90564-76008	Shim(For Differential Case)
41311	90564-76009	Shim(For Differential Case)
41311	90564-76010	Shim(For Differential Case)
41311	90564-76011	Shim(For Differential Case)
41311	90564-76012	Shim(For Differential Case)
41311	90564-76013	Shim(For Differential Case)
41311	90564-76014	Shim(For Differential Case)
41311	90564-76015	Shim(For Differential Case)
41311	90564-76016	Shim(For Differential Case)
41311	90564-76017	Shim(For Differential Case)
41311	90564-76018	Shim(For Differential Case)
41311	90564-79001	Shim (For Front Differential Case Rear)
41311	90564-79002	Shim (For Front Differential Case Rear)
41311	90564-79003	Shim (For Front Differential Case Rear)
41311	90564-79004	Shim (For Front Differential Case Rear)
41311	90564-79005	Shim (For Front Differential Case Rear)
41311	90564-79006	Shim (For Front Differential Case Rear)
41311	90564-79007	Shim (For Front Differential Case Rear)
41311	90564-79008	Shim (For Front Differential Case Rear)
41311	90564-79009	Shim (For Front Differential Case Rear)
41311	90564-79010	Shim (For Front Differential Case Rear)
41311	90564-79011	Shim (For Front Differential Case Rear)
41311	90564-79012	Shim (For Front Differential Case Rear)
41311	90564-79013	Shim (For Front Differential Case Rear)
41311	90564-79014	Shim (For Front Differential Case Rear)
41311	90564-79015	Shim (For Front Differential Case Rear)
41311	90564-79016	Shim (For Front Differential Case Rear)
41311	90564-79017	Shim (For Front Differential Case Rear)
41311	90564-79018	Shim (For Front Differential Case Rear)
41311	90366-50057	Bearing, Tapered Roller (For Front Differential Case Front)
41311	04419-33010	BEARING KIT, FR
41311	90366-50106	Bearing, Tapered Roller (For Front Differential Case Front)
41311	90366-57026	Bearing, Tapered Roller (For Front Differential Case Front)
41311	90366-50030	Bearing, Tapered Roller (For Front Differential Case Rear)
41331	41331-33010	Gear, Front Differential Side
41331	41039-45H00	Gear, Front Differential Side
41341	41341-24010	Pinion, Rear Differential
41341	41341-48010	Pinion, Front Differential
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-33010	Shaft, Front Differential Pinion, No.1
41342	41342-48010	Shaft, Front Differential Pinion, No.1
41351	41351-33011	Washer, Front Differential Pinion Thrust
41361	41361-33010	Washer, Front Differential Side Gear Thrust, No.1
41361	41362-33080	Washer, Front Differential Side Gear Thrust, No.1
41361	41363-33010	Washer, Front Differential Side Gear Thrust, No.1
9010506030	90105-06030	New Genuine Part
9010506030	91511-80614	BOLT FLANGE

OEM	Part name	Category
04419-33010	BEARING KIT, FR	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
35104-28083	Case Sub-Assy, Automatic Transaxle	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
35105-28013	Housing, Transaxle	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
35105-48010	Housing, Transaxle	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
35105-48060	Cover Sub-assy, Transmission Case Side	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
35174-48010	Separator, Transaxle Housing Oil	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41039-45H00	Gear, Front Differential Side	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41211-33040	Pinion, Differential Drive	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41211-33090	Pinion, Differential Drive	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41221-33040	Gear, Front Differential Ring	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41221-33090	Gear, Front Differential Ring	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41301-28080	Case, Front Differential	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41301-33020	Case, Front Differential	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41301-48010	Case, Front Differential	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41331-33010	Gear, Front Differential Side	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41341-24010	Pinion, Rear Differential	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41341-48010	Pinion, Front Differential	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41342-33010	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41342-48010	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41351-33011	Washer, Front Differential Pinion Thrust	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41361-33010	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41362-33080	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
41363-33010	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90105-06030	New Genuine Part	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90105-06320	Bolt (For Transaxle Housing & Transaxle Case Setting)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90105-12303	Bolt (For Front Differential Ring Gear Set)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90301-06008	Ring, O (For Transfer Oil Strainer)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90341-18021	Plug, Filler(Hv)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90366-50030	Bearing, Tapered Roller (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90366-50057	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90366-50106	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90366-57026	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90430-18008	Gasket	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76001	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76002	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76003	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76004	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76005	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76006	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76007	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76008	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76009	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76010	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76011	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76012	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76013	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76014	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76015	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76016	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76017	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-76018	Shim(For Differential Case)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79001	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79002	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79003	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79004	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79005	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79006	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79007	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79008	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79009	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79010	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79011	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79012	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79013	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79014	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79015	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79016	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79017	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
90564-79018	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
91511-80614	BOLT FLANGE	Front Axle Housing & Differential ([08.1999 - ] U140E (9908- )MCV20)
