Search › Model › MCV20
MCV20

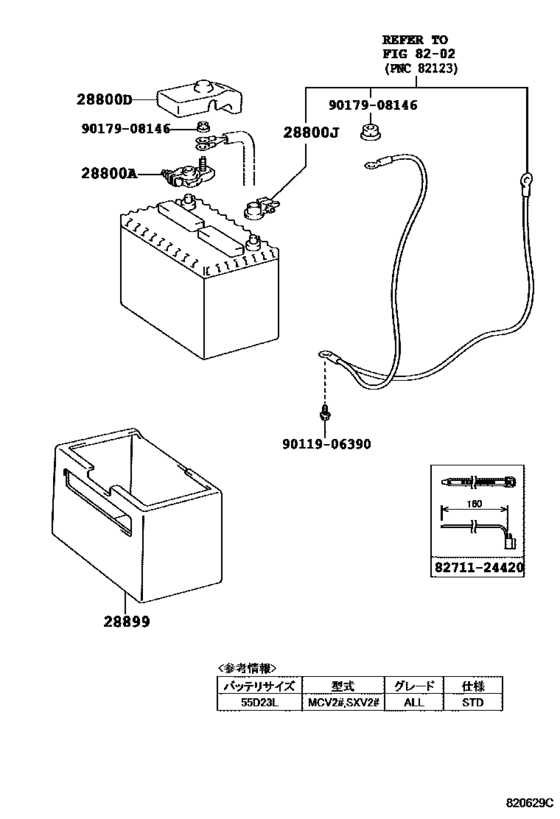

Battery & Battery Cable ([04.1997 - ] (9704- )) 8
| # | OEM | Part name |
|---|---|---|
| 28800 | 90982-05035 | Terminal, Battery Positive |
| 28800 | 82821-12290 | Cover, Connector(For Battery Terminal) |
| 28800 | 90982-06022 | Terminal, Battery Negative |
| 28899 | 28899-46060 | Insulator Assy, Battery |
| 8271124420 | 82711-24420 | Wire, Fuse To Fuse(for Combustion Heater) |
| 9011906390 | 90119-06390 | BOLT WWASHER |
| 9017908146 | 90179-08146 | Nut |
| 9017908146 | 90179-08204 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 28899-46060 | Insulator Assy, Battery | Battery & Battery Cable ([04.1997 - ] (9704- )) |
| 82711-24420 | Wire, Fuse To Fuse(for Combustion Heater) | Battery & Battery Cable ([04.1997 - ] (9704- )) |
| 82821-12290 | Cover, Connector(For Battery Terminal) | Battery & Battery Cable ([04.1997 - ] (9704- )) |
| 90119-06390 | BOLT WWASHER | Battery & Battery Cable ([04.1997 - ] (9704- )) |
| 90179-08146 | Nut | Battery & Battery Cable ([04.1997 - ] (9704- )) |
| 90179-08204 | Nut | Battery & Battery Cable ([04.1997 - ] (9704- )) |
| 90982-05035 | Terminal, Battery Positive | Battery & Battery Cable ([04.1997 - ] (9704- )) |
| 90982-06022 | Terminal, Battery Negative | Battery & Battery Cable ([04.1997 - ] (9704- )) |
