MCV10

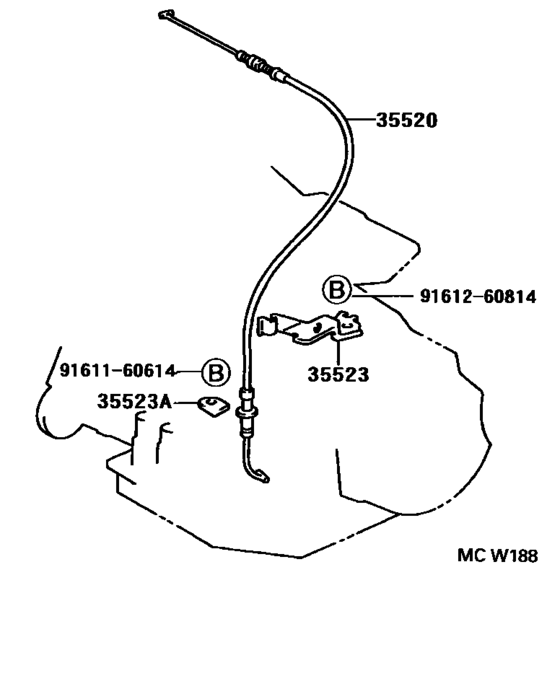

Throttle Link & Valve Lever (Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) 7
| # | OEM | Part name |
|---|---|---|
| 35520 | 35520-33050 | Cable Assy, Throttle |
| 35523 | 35523-33060 | Clamp, Throttle Cable |
| 35523 | 35523-32010 | Clamp, Throttle Cable |
| 9161160614 | 91611-60614 | Screw Or Bolt(For Valve Rocker Shaft Lock) |
| 9161160614 | 91611-B0614 | Bolt (For Rear Differential Breather Plug Oil Deflector) |
| 9161260814 | 91612-60814 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
| 9161260814 | 91611-60814 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 35520-33050 | Cable Assy, Throttle | Throttle Link & Valve Lever (Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) |
| 35523-32010 | Clamp, Throttle Cable | Throttle Link & Valve Lever (Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) |
| 35523-33060 | Clamp, Throttle Cable | Throttle Link & Valve Lever (Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) |
| 91611-60614 | Screw Or Bolt(For Valve Rocker Shaft Lock) | Throttle Link & Valve Lever (Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) |
| 91611-60814 | Bolt | Throttle Link & Valve Lever (Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) |
| 91611-B0614 | Bolt (For Rear Differential Breather Plug Oil Deflector) | Throttle Link & Valve Lever (Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) |
| 91612-60814 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) | Throttle Link & Valve Lever (Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) |
