MCV10

Toyota CAMRY-VISTA-AURION · 1993 · 7,165 parts · 344 categories

7,165 items

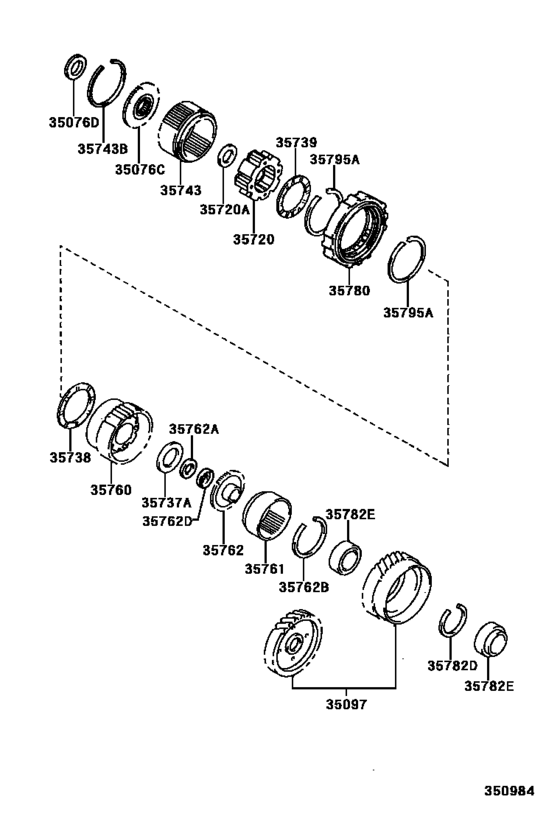

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP) 21

#	OEM	Part name
35076	35076-33011	Flange Sub-Assy, Front Planetary Ring Gear
35076	90374-31003	Bearing, Thrust Needle Roller(For Front Planetary Flange)
35097	35097-33010	Counter Gear Kit, Automatic Transaxle
35720	35720-32020	Gear Assy, Front Planetary
35720	35720-33010	Gear Assy, Front Planetary
35720	90374-30015	Bearing, Thrust Needle Roller (For Front Planetary Gear)
35737	35738-33010	Washer, Planetary Carrier Thrust, No.1
35738	35738-33020	Washer, Planetary Carrier Thrust, No.2
35739	35739-33010	Washer, Planetary Carrier Thrust, No.3
35743	35743-33020	Gear, Front Planetary Ring
35743	90520-90002	Ring, Hole Snap (For Front Planetary Ring Gear)
35760	35760-33020	Gear Assy, Rear Planetary
35761	35761-32020	Gear, Rear Planetary Ring
35762	35762-33010	Flange, Rear Planetary Ring Gear
35762	90374-22006	Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35762	90520-82002	Ring, Hole Snap (For Rear Planetary Ring Gear Flange)
35762	35789-33020	Race, Thrust Bearing (For Rear Planetary Flange)
35780	35780-33010	Clutch Assy, 1 Way No.2
35782	90521-67001	Ring, Hole Snap(For Counter Drive Gear)
35782	90366-40077	Bearing(For Counter Drive Gear)
35795	90520-99017	Ring, Hole Snap (For 1 Way Clutch Outer Race)

OEM	Part name	Category
35076-33011	Flange Sub-Assy, Front Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35097-33010	Counter Gear Kit, Automatic Transaxle	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35720-32020	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35720-33010	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35738-33010	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35738-33020	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35739-33010	Washer, Planetary Carrier Thrust, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35743-33020	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35760-33020	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35761-32020	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35762-33010	Flange, Rear Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35780-33010	Clutch Assy, 1 Way No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
35789-33020	Race, Thrust Bearing (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
90366-40077	Bearing(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
90374-22006	Bearing, Thrust Needle Roller (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
90374-30015	Bearing, Thrust Needle Roller (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
90374-31003	Bearing, Thrust Needle Roller(For Front Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
90520-82002	Ring, Hole Snap (For Rear Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
90520-90002	Ring, Hole Snap (For Front Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
90520-99017	Ring, Hole Snap (For 1 Way Clutch Outer Race)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
90521-67001	Ring, Hole Snap(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1997 - ] A541E (9708- )MCV10..JPP)
