MCV10

Toyota CAMRY-VISTA-AURION · 1993 · 7,165 parts · 344 categories

← Back to categories

7,165 items

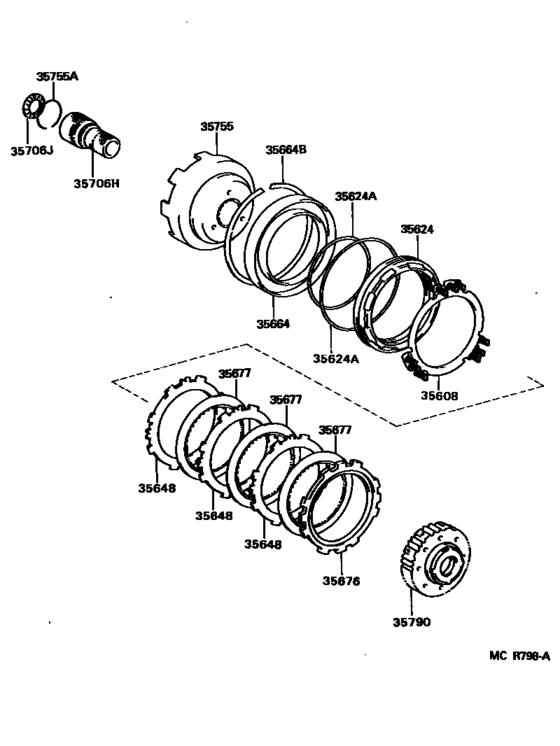

Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP) 18

#	OEM	Part name
35608	35608-33010	Spring Sub-Assy, 2Nd Brake Piston Return
35608	35608-33020	Spring Sub-Assy, 2Nd Brake Piston Return
35624	35624-32010	Piston, 2Nd Brake
35624	35624-33010	Piston, 2Nd Brake
35624	90301-99021	Ring, O (For 2Nd Brake Piston)
35624	90301-99023	Ring, O (For 2Nd Brake Piston)
35648	35648-33010	Plate, Clutch (For 2Nd Brake)
35664	35664-32010	Cylinder, 2Nd Brake
35664	90521-99013	Ring, Hole Snap (For 2Nd Brake Cylinder)
35676	35676-33010	Flange, Brake (For 2Nd Brake)
35677	35677-33050	Disc, Clutch (For 2Nd Brake)
35706	35706-33011	Gear Sub-Assy, Planetary Sun
35706	35706-33012	Gear Sub-Assy, Planetary Sun
35706	90374-30008	Bearing, Thrust Needle Roller (For Planetary Sun Gear)
35706	90374-30014	Bearing, Thrust Needle Roller (For Planetary Sun Gear)
35755	35755-33010	Drum, Sun Gear Input
35755	90520-36017	Ring, Shaft Snap (For Sun Gear Input Drum)
35790	35790-33010	Clutch Assy, 1 Way

OEM	Part name	Category
35608-33010	Spring Sub-Assy, 2Nd Brake Piston Return	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35608-33020	Spring Sub-Assy, 2Nd Brake Piston Return	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35624-32010	Piston, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35624-33010	Piston, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35648-33010	Plate, Clutch (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35664-32010	Cylinder, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35676-33010	Flange, Brake (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35677-33050	Disc, Clutch (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35706-33011	Gear Sub-Assy, Planetary Sun	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35706-33012	Gear Sub-Assy, Planetary Sun	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35755-33010	Drum, Sun Gear Input	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35790-33010	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90301-99021	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90301-99023	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90374-30008	Bearing, Thrust Needle Roller (For Planetary Sun Gear)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90374-30014	Bearing, Thrust Needle Roller (For Planetary Sun Gear)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90520-36017	Ring, Shaft Snap (For Sun Gear Input Drum)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90521-99013	Ring, Hole Snap (For 2Nd Brake Cylinder)	Center Support & Planetary Sun Gear (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
