MCV10

Toyota CAMRY-VISTA-AURION · 1993 · 7,165 parts · 344 categories

← Back to categories

7,165 items

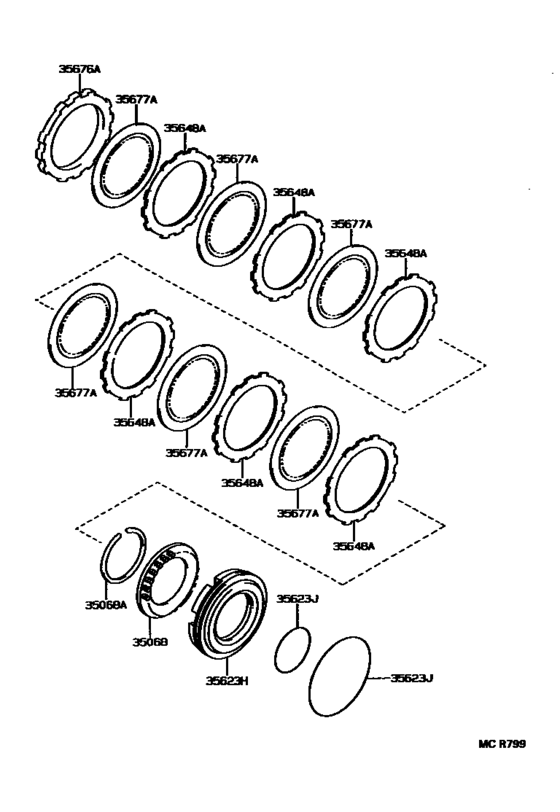

Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP) 8

#	OEM	Part name
35068	35068-33010	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-86004	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35623	35623-33010	Piston, 1St & Reverse Brake
35623	90301-90001	Ring, O (For 1St & Reverse Brake)
35623	90301-99078	Ring, O (For 1St & Reverse Brake)
35648	35648-33020	Plate, Clutch (For 1St & Reverse Brake)
35676	35676-33010	Flange, Brake (For 2Nd Brake)
35677	35677-33040	Disc, Clutch (For 1St & Reverse Brake)

OEM	Part name	Category
35068-33010	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35623-33010	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35648-33020	Plate, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35676-33010	Flange, Brake (For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35677-33040	Disc, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90301-90001	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90301-99078	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90520-86004	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([09.1993 - ] (9309- )MCV10..NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 23
Category: 344
Collected: 2026-07-22
