Search › Model › MCV10

MCV10

Toyota CAMRY-VISTA-AURION · 1993 · 7,165 parts · 344 categories

7,165 items

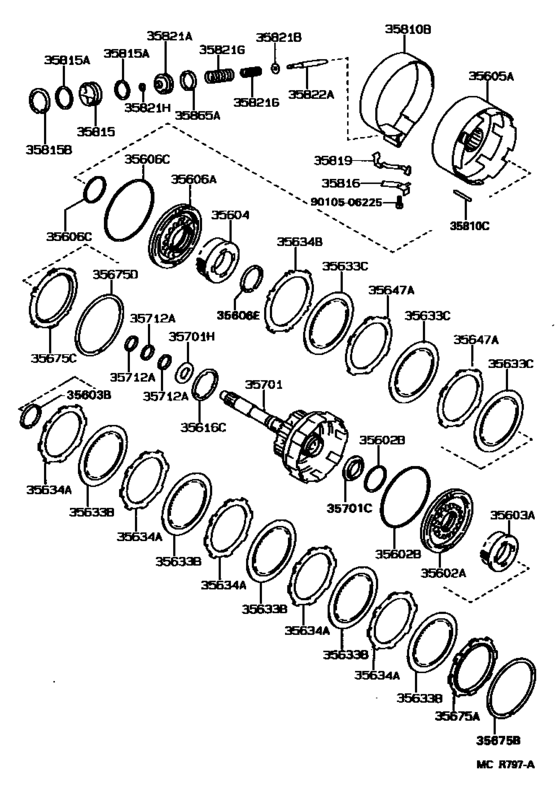

Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP) 47

#	OEM	Part name
35602	35602-33030	Piston Sub-Assy, Forward Clutch
35602	90301-59004	Ring, O (For Forward Clutch Piston)
35602	90301-99016	Ring, O (For Overdrive Direct Clutch Piston)
35603	35603-33010	Spring Sub-Assy, Forward Clutch Return
35603	90520-54002	Ring, Shaft Snap(For Forward Clutch Piston Return Spring)
35604	35604-33010	Spring Sub-Assy, Direct Clutch Return
35605	35605-33020	Drum Sub-Assy, Direct Clutch
35605	35605-33H02	Drum Sub-Assy, Direct Clutch
35605	35605-33021	Drum Sub-Assy, Direct Clutch
35606	35606-32030	Piston Sub-Assy, Direct Clutch
35606	35605-33H01	Drum Sub-Assy, Direct Clutch
35606	35606-32031	Piston Sub-Assy, Direct Clutch
35616	35616-32030	Washer, Clutch Drum Thrust (For Direct Clutch Drum)
35633	35633-33010	Disc, Clutch (For Forward Multiple Disc Clutch)
35633	35633-33040	Disc, Clutch (For Direct Multiple Disc Clutch)
35634	35634-33010	Plate, Clutch (For Forward Multiple Disc Clutch)
35634	35634-33020	Plate, Clutch (For Forward Multiple Disc Clutch)
35634	35634-33040	Plate, Clutch (For Direct Multiple Disc Clutch)
35647	35647-33020	Plate, Clutch (For Direct Multiple Disc Clutch)
35675	35675-33010	Flange, Forward Clutch
35675	35675-33020	Flange, Forward Clutch
35675	90521-99001	Ring, Hole Snap, No.2 (For Overdrive)
35675	35675-33030	Flange, Direct Clutch
35675	35675-33040	Flange, Direct Clutch
35675	90521-99032	Ring, Hole Snap (For Direct Clutch Flange)
35701	35701-33030	Shaft Sub-Assy, Input
35701	35789-33010	Race, Thrust Bearing (For Input Shaft Rear)
35701	90374-27003	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90374-27004	Bearing, Thrust Needle Roller (For Input Shaft)
35712	35712-32010	Ring, Input Shaft Oil Seal
35810	35810-33010	Band Assy, 2Nd Coast Brake
35810	90250-07001	Pin (For 2Nd Coast Brake Band)
35815	35815-33010	Cover, 2Nd Coast Brake
35815	90301-43005	Ring, O (For 2Nd Coast Brake Cover)
35815	90521-55004	Ring, Hole Snap (For 2Nd Coast Brake Cover)
35816	35816-32010	Retainer, Brake Band Guide Plate
35819	35819-33010	Plate, 2Nd Coast Brake Band Guide
35821	35821-33010	Piston, 2Nd Coast Brake
35821	90201-06014	Washer, Plate (For 2Nd Coast Brake Piston)
35821	90501-24026	Spring, Compression (For 2Nd Coast Brake Piston)
35821	90501-29046	Spring, Compression (For 2Nd Coast Brake Piston)
35821	90501-25047	Spring, Compression (For 2Nd Coast Brake Piston)
35821	96160-00500	Ring, E(For Over Center Lever)
35822	35822-32030	Rod, 2Nd Coast Brake Piston
35822	35822-32040	Rod, 2Nd Coast Brake Piston
35865	35865-33010	Ring, 2Nd Coast Brake Piston Oil Seal
9010506225	90105-06225	BOLTWASHER BASED

OEM	Part name	Category
35602-33030	Piston Sub-Assy, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35603-33010	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35604-33010	Spring Sub-Assy, Direct Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35605-33020	Drum Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35605-33021	Drum Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35605-33H01	Drum Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35605-33H02	Drum Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35606-32030	Piston Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35606-32031	Piston Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35616-32030	Washer, Clutch Drum Thrust (For Direct Clutch Drum)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35633-33010	Disc, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35633-33040	Disc, Clutch (For Direct Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35634-33010	Plate, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35634-33020	Plate, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35634-33040	Plate, Clutch (For Direct Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35647-33020	Plate, Clutch (For Direct Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35675-33010	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35675-33020	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35675-33030	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35675-33040	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35701-33030	Shaft Sub-Assy, Input	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35712-32010	Ring, Input Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35789-33010	Race, Thrust Bearing (For Input Shaft Rear)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35810-33010	Band Assy, 2Nd Coast Brake	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35815-33010	Cover, 2Nd Coast Brake	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35816-32010	Retainer, Brake Band Guide Plate	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35819-33010	Plate, 2Nd Coast Brake Band Guide	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35821-33010	Piston, 2Nd Coast Brake	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35822-32030	Rod, 2Nd Coast Brake Piston	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35822-32040	Rod, 2Nd Coast Brake Piston	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
35865-33010	Ring, 2Nd Coast Brake Piston Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90105-06225	BOLTWASHER BASED	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90201-06014	Washer, Plate (For 2Nd Coast Brake Piston)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90250-07001	Pin (For 2Nd Coast Brake Band)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90301-43005	Ring, O (For 2Nd Coast Brake Cover)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90301-59004	Ring, O (For Forward Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90301-99016	Ring, O (For Overdrive Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90374-27003	Bearing, Thrust Needle Roller (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90374-27004	Bearing, Thrust Needle Roller (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90501-24026	Spring, Compression (For 2Nd Coast Brake Piston)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90501-25047	Spring, Compression (For 2Nd Coast Brake Piston)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90501-29046	Spring, Compression (For 2Nd Coast Brake Piston)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90520-54002	Ring, Shaft Snap(For Forward Clutch Piston Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90521-55004	Ring, Hole Snap (For 2Nd Coast Brake Cover)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90521-99001	Ring, Hole Snap, No.2 (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
90521-99032	Ring, Hole Snap (For Direct Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
96160-00500	Ring, E(For Over Center Lever)	Brake Band & Multiple Disc Clutch (Atm) ([09.1993 - ] (9309- )MCV10..NAP)
