Search › Model › MCU38

MCU38

Lexus RX · 2003 · 5,506 parts · 226 categories

5,506 items

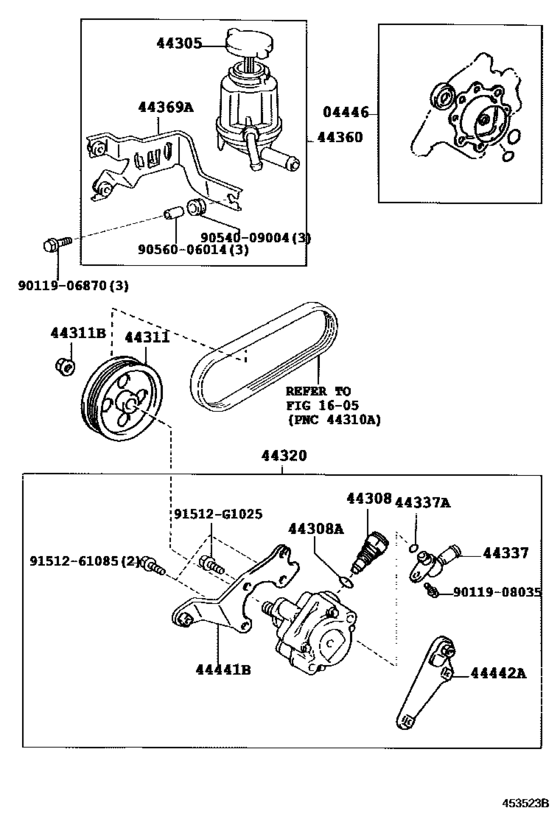

Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601)) 20

#	OEM	Part name
4446	04446-53030	Gasket Kit, Power Steering Pump
44305	44305-28030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-28061	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-32150	Union Sub-Assy, Pressure Port
44308	90301-19018	Ring, O(For Pressure Port Union)
44311	44311-28110	Pulley, Vane Pump
44311	90178-12003	Nut(For Vane Pump Pulley)
44320	44320-48040	Pump Assy, Vane
44337	44337-48020	Union, Power Steering Suction Port
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44360	44360-48040	Reservoir Assy, Vane Pump Oil
44369	44369-48040	Bracket, Oil Reservoir, No.1
44441	44441-28020	Bracket, Pump, Front
44442	44442-33021	Bracket, Vane Pump, Rear
91512	91512-G1025	BOLTFLANGE
9011906870	90119-06870	BOLT WWASHER
9011908035	90119-08035	New Genuine Part
9054009004	90540-09004	Cushion(For Vane Pump Oil Reservoir)
9056006014	90560-06014	Spacer(For Vane Pump Oil Reservoir)
9151261085	91512-61085	New Genuine Part

OEM	Part name	Category
04446-53030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44305-28030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44305-28061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44308-32150	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44311-28110	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44320-48040	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44337-48020	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44360-48040	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44369-48040	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44441-28020	Bracket, Pump, Front	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
44442-33021	Bracket, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
90119-06870	BOLT WWASHER	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
90540-09004	Cushion(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
90560-06014	Spacer(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
91512-61085	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
91512-G1025	BOLTFLANGE	Vane Pump & Reservoir (Power Steering) ([02.2003 - 01.2006] (0302-0601))
