Search › Model › MCU38

MCU38

Lexus RX · 2003 · 5,506 parts · 226 categories

5,506 items

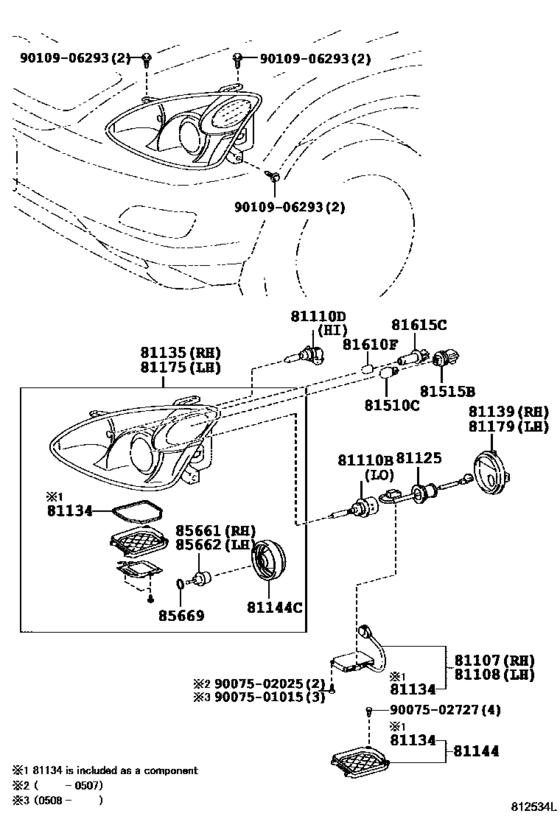

Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601)) 38

#	OEM	Part name
81107	81107-48190	Computer Sub-Assy, Headlamp Light Control, Rh
81107	81107-48210	Computer Sub-Assy, Headlamp Light Control, Rh
81107	81107-48180	Computer Sub-Assy, Headlamp Light Control, Rh
81110	90981-20005	Bulb(For Headlamp, No.1)
81110	90981-13066	Bulb(For Headlamp, No.2)
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81125	81125-48180	Cord, Headlamp
81134	90075-68005	Gasket, Headlamp
81135	81145-48250	Unit Assy, Headlamp, Rh
81135	81145-48340	Unit Assy, Headlamp, Rh
81135	81145-48341	Unit Assy, Headlamp, Rh
81135	81145-48230	Unit Assy, Headlamp, Rh
81135	81145-48231	Unit Assy, Headlamp, Rh
81135	81145-48232	Unit Assy, Headlamp, Rh
81139	81139-48180	Cover, Headlamp Socket
81144	90075-68003	Cover, Headlamp, No.1
81144	90075-68008	Cover, Headlamp, No.1
81144	90075-68009	Cover, Headlamp, No.1
81144	90075-65006	Cover, Headlamp Back, No.1
81175	81185-48250	Unit Assy, Headlamp, Lh
81175	81185-48340	Unit Assy, Headlamp, Lh
81175	81185-48341	Unit Assy, Headlamp, Lh
81175	81185-48230	Unit Assy, Headlamp, Lh
81175	81185-48231	Unit Assy, Headlamp, Lh
81175	81185-48232	Unit Assy, Headlamp, Lh
81179	81179-48180	Cover, Headlamp Socket
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81515	90075-60028	Socket, Headlamp, Bulb
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	90075-60046	Socket Plug, No.1
85661	85661-48030	Motor, Headlamp Leveling, Rh
85661	85661-50040	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
9007501015	90075-01015	SCREW
9007502025	90075-02025	Screw, Headlamp
9007502727	90075-02727	Screw, Headlamp
9010906293	90109-06293	BOLTFOLDING SEAT

OEM	Part name	Category
81107-48180	Computer Sub-Assy, Headlamp Light Control, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81107-48190	Computer Sub-Assy, Headlamp Light Control, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81107-48210	Computer Sub-Assy, Headlamp Light Control, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81125-48180	Cord, Headlamp	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81139-48180	Cover, Headlamp Socket	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81145-48230	Unit Assy, Headlamp, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81145-48231	Unit Assy, Headlamp, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81145-48232	Unit Assy, Headlamp, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81145-48250	Unit Assy, Headlamp, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81145-48340	Unit Assy, Headlamp, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81145-48341	Unit Assy, Headlamp, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81179-48180	Cover, Headlamp Socket	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81185-48230	Unit Assy, Headlamp, Lh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81185-48231	Unit Assy, Headlamp, Lh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81185-48232	Unit Assy, Headlamp, Lh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81185-48250	Unit Assy, Headlamp, Lh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81185-48340	Unit Assy, Headlamp, Lh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
81185-48341	Unit Assy, Headlamp, Lh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
85661-48030	Motor, Headlamp Leveling, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
85661-50040	Motor, Headlamp Leveling, Rh	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-01015	SCREW	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-02025	Screw, Headlamp	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-02727	Screw, Headlamp	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-60028	Socket, Headlamp, Bulb	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-60046	Socket Plug, No.1	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-65006	Cover, Headlamp Back, No.1	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-68003	Cover, Headlamp, No.1	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-68005	Gasket, Headlamp	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-68008	Cover, Headlamp, No.1	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-68009	Cover, Headlamp, No.1	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90109-06293	BOLTFOLDING SEAT	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90981-13066	Bulb(For Headlamp, No.2)	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
90981-20005	Bulb(For Headlamp, No.1)	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
99132-12050	Bulb (12V 5W)	Headlamp ([02.2003 - 01.2006] DISCHARGE HEADLAMP (0302-0601))
