Search › Model › MCU33
MCU33

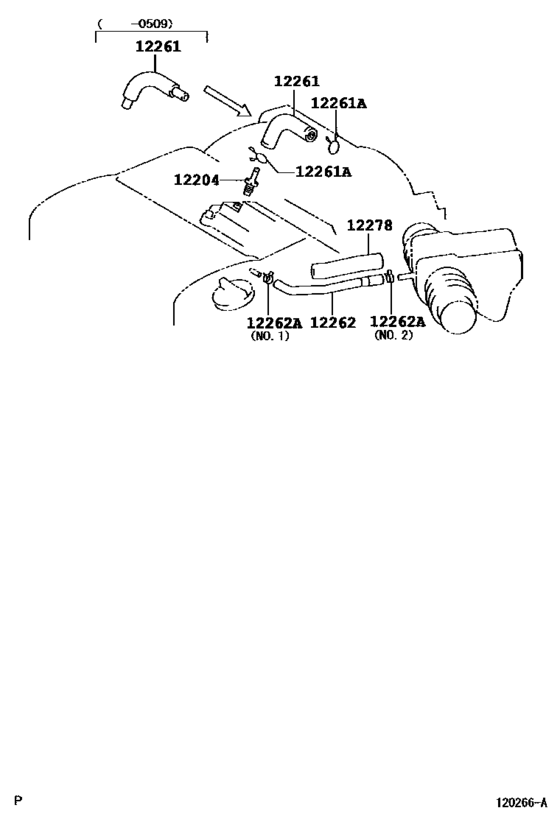

Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) 10
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-20040 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-20060 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-20011 | Hose, Ventilation |
| 12261 | 12261-20090 | Hose, Ventilation |
| 12261 | 12261-20091 | Hose, Ventilation |
| 12261 | 90467-14017 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12261-0A050 | Hose, Ventilation, No.2 |
| 12262 | 90080-46345 | Clip(For Ventilation Hose No.2) |
| 12262 | 90080-46349 | Clip Or Clamp(For Ventilation Hose) |
| 12278 | 12278-AA020 | Insulator, Ventilation Hose Heat |
| OEM | Part name | Category |
|---|---|---|
| 12204-20040 | Valve Sub-Assy, Ventilation | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 12204-20060 | Valve Sub-Assy, Ventilation | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 12261-0A050 | Hose, Ventilation, No.2 | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 12261-20011 | Hose, Ventilation | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 12261-20090 | Hose, Ventilation | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 12261-20091 | Hose, Ventilation | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 12278-AA020 | Insulator, Ventilation Hose Heat | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 90080-46345 | Clip(For Ventilation Hose No.2) | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 90080-46349 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
| 90467-14017 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.2003 - ] (0309- )3MZFE..NAP) |
