MCU33

Lexus RX · 2003 · 8,574 parts · 374 categories

8,574 items

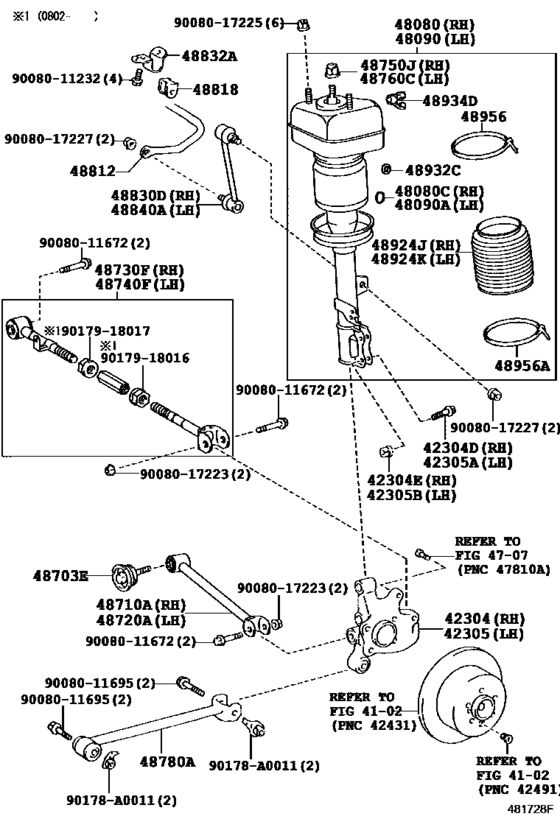

Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP) 40

#	OEM	Part name
42304	42304-48020	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-48021	Carrier Sub-Assy, Rear Axle, Rh
42304	90080-10398	Bolt (For Rear Axle Carrier Rh)
42304	90080-17213	Nut (For Rear Axle Carrier Rh)
42305	42305-48020	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-48021	Carrier Sub-Assy, Rear Axle, Lh
48080	48080-48070	Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber
48080	90301-04011	Ring, O(For Front Pneumatic Cylinder Rh)
48090	48090-48070	Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber
48703	90080-11674	Bolt(For Rear Suspension Arm)
48710	48710-0E010	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-48040	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-0E010	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-48090	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-0E020	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-48100	Arm Assy, Rear Suspension, No.2 Rh
48740	48740-0E010	Arm Assy, Rear Suspension, No.2 Lh
48740	48740-48090	Arm Assy, Rear Suspension, No.2 Lh
48740	48740-0E020	Arm Assy, Rear Suspension, No.2 Lh
48740	48740-48100	Arm Assy, Rear Suspension, No.2 Lh
48750	90080-17212	Nut(For Rear Support To Rear Shock Absorber Rh)
48780	48780-0E010	Rod Assy, Strut, Rear
48812	48812-48060	Bar, Stabilizer, Rear
48818	48818-06120	Bush, Stabilizer, Rear
48830	48830-06030	Link Assy, Rear Stabilizer, Rh
48832	48832-0E010	Bracket, Rear Stabilizer Bar, No.1
48924	48924-48020	Cover, Rear Pneumatic Cylinder, Outer Rh
48932	48932-30010	Plate, Height Control Tube
48934	48934-30010	Plug, Height Control
48956	48956-48010	Band, Rear Height Control Cover, No.1
48956	48956-48020	Band, Rear Height Control Cover, No.2
90178	90178-A0011	Nut(For Strut Rod)
9008011232	90080-11232	New Genuine Part
9008011672	90080-11672	Washer(For Rear Suspension Arm)
9008011695	90080-11695	Bolt(For Strut Rod)
9008017223	90080-17223	Nut(For Front Suspension Lower Arm)
9008017225	90080-17225	Nut(For Front Suspension Support)
9008017227	90080-17227	Nut(For Rear Stabilizer Link)
9017918016	90179-18016	Nut, No.1(For Rear Suspension Arm No.2 Rh)
9017918017	90179-18017	Nut, No.1(For Rear Suspension Arm No.2 Rh)

OEM	Part name	Category
42304-48020	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
42304-48021	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
42305-48020	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
42305-48021	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48080-48070	Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48090-48070	Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48710-0E010	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48710-48040	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48730-0E010	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48730-0E020	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48730-48090	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48730-48100	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48740-0E010	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48740-0E020	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48740-48090	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48740-48100	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48780-0E010	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48812-48060	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48818-06120	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48830-06030	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48832-0E010	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48924-48020	Cover, Rear Pneumatic Cylinder, Outer Rh	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48932-30010	Plate, Height Control Tube	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48934-30010	Plug, Height Control	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48956-48010	Band, Rear Height Control Cover, No.1	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
48956-48020	Band, Rear Height Control Cover, No.2	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-10398	Bolt (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-11232	New Genuine Part	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-11672	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-11674	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-11695	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-17212	Nut(For Rear Support To Rear Shock Absorber Rh)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-17213	Nut (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-17223	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-17225	Nut(For Front Suspension Support)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90080-17227	Nut(For Rear Stabilizer Link)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90178-A0011	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90179-18016	Nut, No.1(For Rear Suspension Arm No.2 Rh)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90179-18017	Nut, No.1(For Rear Suspension Arm No.2 Rh)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)
90301-04011	Ring, O(For Front Pneumatic Cylinder Rh)	Rear Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )GSU30,MCU33..NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 374
Collected: 2026-07-23
