MCU33

Lexus RX · 2003 · 8,574 parts · 374 categories
MCU33 ×

← Back to categories

8,574 items

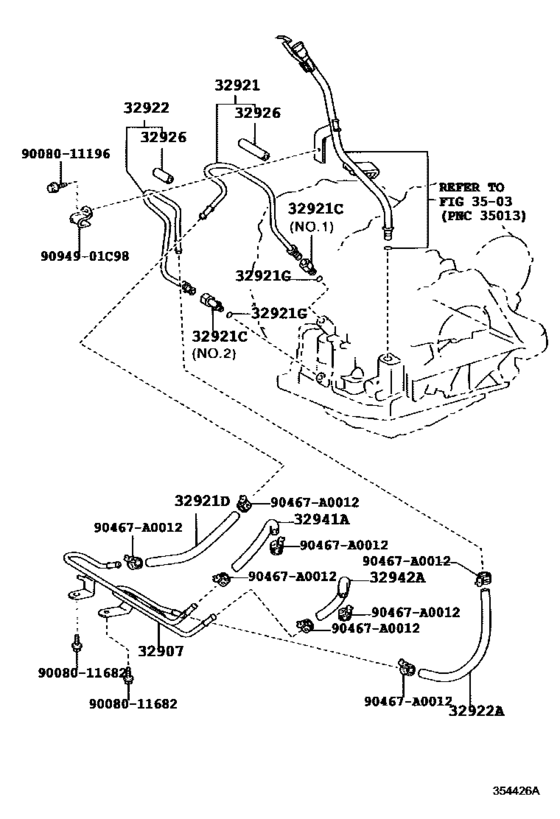

Oil Cooler & Tube (Atm) ([09.2003 - 02.2006] U151E,U151F (0309-0602)NAP) 20
#OEMPart name
32907 32907-0E010 Tube Sub-Assy, Oil Cooler Outlet, No.2
32907 32907-0E011 Tube Sub-Assy, Oil Cooler Outlet, No.2
32907 90119-06942 BOLT WWASHER
32921 32921-0E010 Tube, Oil Cooler Inlet, No.1
32921 90404-16031 Union(For Transaxle Housing)
32921 90407-16010 Union(For Oil Cooler Tube)
32921 90080-44119 Hose(For Oil Cooler Outlet)
32921 90301-10189 Ring, O(For Oil Cooler Tube Union)
32922 32922-0E010 Tube, Oil Cooler Outlet, No.1
32922 32922-0E020 Tube, Oil Cooler Outlet, No.1
32922 90080-44134 Hose(For Oil Cooler Outlet)
32922 90080-44135 Hose(For Oil Cooler Outlet)
32926 32926-04010 Cushion, Oil Cooler Tube(Atm)
32926 32926-0E010 Cushion, Oil Cooler Tube(Atm)
32941 90080-44064 Hose(For Oil Cooler Inlet) - OIL COOLER INLET, NO.2
32942 32943-0E010 Hose, Oil Cooler Outlet, No.2
90467 90467-A0012 Clip(For Water Inlet Hose)
9094901 90949-01C98 Clamp, Oil Cooler Tube, No.2
9008011196 90080-11196 New Genuine Part
9008011682 90080-11682 New Genuine Part
