Search › Model › MCU33

MCU33

Lexus RX · 2003 · 8,574 parts · 374 categories

8,574 items

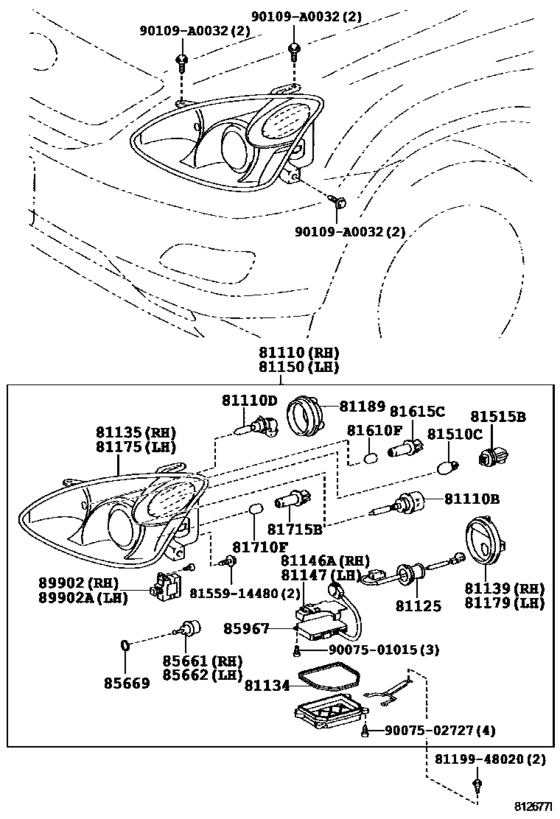

Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP) 51

#	OEM	Part name
81110	81110-0E010	Headlamp Assy, Rh
81110	81110-0E020	Headlamp Assy, Rh
81110	81110-0E030	Headlamp Assy, Rh
81110	81110-0E031	Headlamp Assy, Rh
81110	81110-0E040	Headlamp Assy, Rh
81110	90981-13075	Bulb(For Headlamp, No.1)
81110	90981-20005	Bulb(For Headlamp, No.1)
81110	90080-81041	Bulb(For Headlamp, No.1)
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81125	81125-48180	Cord, Headlamp
81134	90075-68006	Gasket, Headlamp
81135	81130-0E020	Unit Assy, Headlamp, Rh
81135	81130-0E030	Unit Assy, Headlamp, Rh
81135	81145-0E030	Unit Assy, Headlamp, Rh
81135	81130-0E031	Unit Assy, Headlamp, Rh
81135	81145-0E031	Unit Assy, Headlamp, Rh
81135	81130-0E040	Unit Assy, Headlamp, Rh
81139	81139-0E010	Cover, Headlamp Socket
81139	81139-0E020	Cover, Headlamp Socket
81146	81146-48261	Fitting, Headlamp, Rh
81150	81150-0E010	Headlamp Assy, Lh
81150	81150-0E020	Headlamp Assy, Lh
81150	81150-0E030	Headlamp Assy, Lh
81150	81150-0E031	Headlamp Assy, Lh
81150	81150-0E040	Headlamp Assy, Lh
81175	81170-0E020	Unit Assy, Headlamp, Lh
81175	81170-0E030	Unit Assy, Headlamp, Lh
81175	81185-0E030	Unit Assy, Headlamp, Lh
81175	81170-0E031	Unit Assy, Headlamp, Lh
81175	81185-0E031	Unit Assy, Headlamp, Lh
81175	81170-0E040	Unit Assy, Headlamp, Lh
81179	81179-0E010	Cover, Headlamp Socket
81179	81179-0E020	Cover, Headlamp Socket
81189	90075-65006	Cover, Headlamp Back, No.1
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81515	90075-60028	Socket, Headlamp, Bulb
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	90075-60046	Socket Plug, No.1
81715	90075-60056	Socket Plug, No.1
85661	85661-48030	Motor, Headlamp Leveling, Rh
85661	85661-50040	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
85967	85967-0E020	Computer, Light Control
89902	89902-48020	Computer Sub-Assy, Headlamp Swivel, Rh
89902	89902-48010	Computer Sub-Assy, Headlamp Swivel, Lh
90109	90109-A0032	New Genuine Part
8119948020	81199-48020	Joint, Headlamp Hose
8155914480	81559-14480	Moulding, Rear Combination Lamp, Rh
9007501015	90075-01015	SCREW
9007502727	90075-02727	Screw, Headlamp

OEM	Part name	Category
81110-0E010	Headlamp Assy, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81110-0E020	Headlamp Assy, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81110-0E030	Headlamp Assy, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81110-0E031	Headlamp Assy, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81110-0E040	Headlamp Assy, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81125-48180	Cord, Headlamp	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81130-0E020	Unit Assy, Headlamp, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81130-0E030	Unit Assy, Headlamp, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81130-0E031	Unit Assy, Headlamp, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81130-0E040	Unit Assy, Headlamp, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81139-0E010	Cover, Headlamp Socket	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81139-0E020	Cover, Headlamp Socket	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81145-0E030	Unit Assy, Headlamp, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81145-0E031	Unit Assy, Headlamp, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81146-48261	Fitting, Headlamp, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81150-0E010	Headlamp Assy, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81150-0E020	Headlamp Assy, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81150-0E030	Headlamp Assy, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81150-0E031	Headlamp Assy, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81150-0E040	Headlamp Assy, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81170-0E020	Unit Assy, Headlamp, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81170-0E030	Unit Assy, Headlamp, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81170-0E031	Unit Assy, Headlamp, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81170-0E040	Unit Assy, Headlamp, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81179-0E010	Cover, Headlamp Socket	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81179-0E020	Cover, Headlamp Socket	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81185-0E030	Unit Assy, Headlamp, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81185-0E031	Unit Assy, Headlamp, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81199-48020	Joint, Headlamp Hose	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
81559-14480	Moulding, Rear Combination Lamp, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
85661-48030	Motor, Headlamp Leveling, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
85661-50040	Motor, Headlamp Leveling, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
85967-0E020	Computer, Light Control	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
89902-48010	Computer Sub-Assy, Headlamp Swivel, Lh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
89902-48020	Computer Sub-Assy, Headlamp Swivel, Rh	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90075-01015	SCREW	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90075-02727	Screw, Headlamp	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90075-60028	Socket, Headlamp, Bulb	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90075-60046	Socket Plug, No.1	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90075-60056	Socket Plug, No.1	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90075-65006	Cover, Headlamp Back, No.1	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90075-68006	Gasket, Headlamp	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90080-81041	Bulb(For Headlamp, No.1)	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90109-A0032	New Genuine Part	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90981-13075	Bulb(For Headlamp, No.1)	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
90981-20005	Bulb(For Headlamp, No.1)	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)
99132-12050	Bulb (12V 5W)	Headlamp ([09.2003 - ] DISCHARGE HEADLAMP & W(AFS) (0309- )NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 374
Collected: 2026-07-23
