MCU33

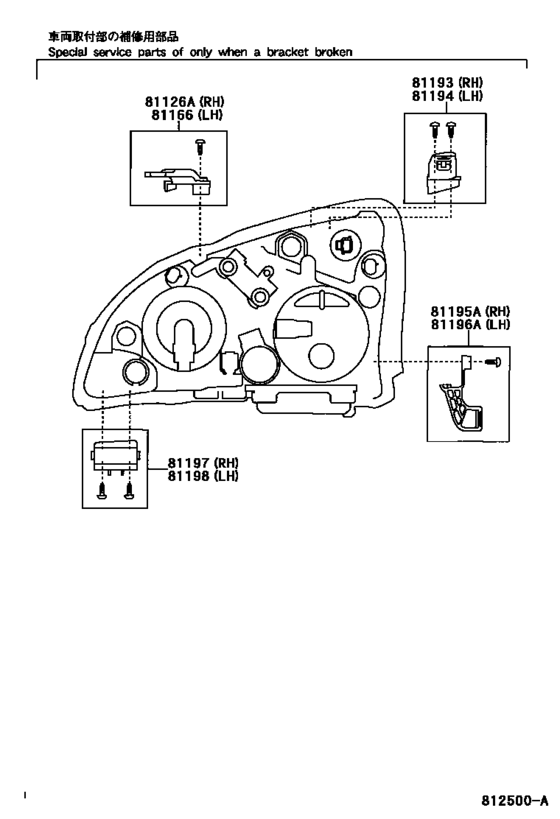

Headlamp ([02.2003 - ] (0302- )JPP) 10
| # | OEM | Part name |
|---|---|---|
| 81126 | 81126-48020 | Plate, Headlamp, Rh |
| 81166 | 81166-48020 | Plate, Headlamp, Lh |
| 81193 | 81193-48030 | Retainer, Headlamp Protector, Upper Rh |
| 81194 | 81194-48030 | Retainer, Headlamp Protector, Upper Lh |
| 81195 | 81195-48040 | Retainer, Headlamp Protector, Lower Rh |
| 81196 | 81196-48040 | Retainer, Headlamp Protector, Lower Lh |
| 81197 | 81197-48020 | Bracket, Headlamp, Lower Rh |
| 81197 | 81197-48021 | Bracket, Headlamp, Lower Rh |
| 81198 | 81198-48020 | Bracket, Headlamp, Lwr Lh |
| 81198 | 81198-48021 | Bracket, Headlamp, Lwr Lh |
| OEM | Part name | Category |
|---|---|---|
| 81126-48020 | Plate, Headlamp, Rh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81166-48020 | Plate, Headlamp, Lh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81193-48030 | Retainer, Headlamp Protector, Upper Rh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81194-48030 | Retainer, Headlamp Protector, Upper Lh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81195-48040 | Retainer, Headlamp Protector, Lower Rh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81196-48040 | Retainer, Headlamp Protector, Lower Lh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81197-48020 | Bracket, Headlamp, Lower Rh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81197-48021 | Bracket, Headlamp, Lower Rh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81198-48020 | Bracket, Headlamp, Lwr Lh | Headlamp ([02.2003 - ] (0302- )JPP) |
| 81198-48021 | Bracket, Headlamp, Lwr Lh | Headlamp ([02.2003 - ] (0302- )JPP) |
