MCU33

Lexus RX · 2003 · 8,574 parts · 374 categories
MCU33 ×

← Back to categories

8,574 items

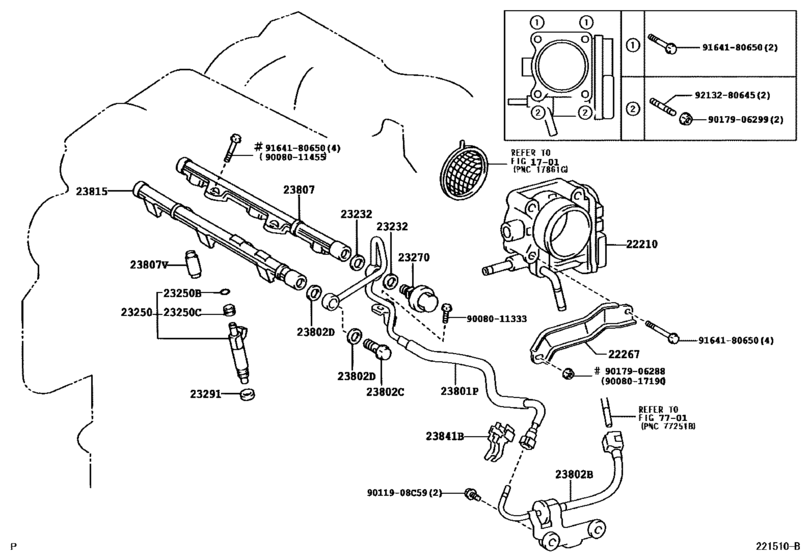

Fuel Injection System ([09.2003 - ] (0309- )3MZFE..NAP) 34
#OEMPart name
22210 22030-0A020 Body Assy, Throttle
22267 22267-20020 Bracket, Throttle Body
23232 23232-41081 Gasket(For Fuel Pump Hose)
23250 23209-0A020 Injector Assy, Fuel
23250 23209-20030 Injector Assy, Fuel
23250 23209-20040 Injector Assy, Fuel
23250 90301-07024 Ring, O(For Fuel Injector)
23250 90301-07037 Ring, O(For Fuel Injector)
23250 90480-13005 Grommet(For Fuel Injector)
23270 23270-62010 Damper Assy, Fuel Pressure Pulsation
23270 23207-20011 Damper Assy, Fuel Pressure Pulsation
23270 23270-62011 Damper Assy, Fuel Pressure Pulsation
23291 23291-41010 Insulator, Injector Vibration
23801 23801-20180 Pipe Sub-Assy, Fuel, No.1
23801 23801-20230 Pipe Sub-Assy, Fuel, No.1
23801 23801-20240 Pipe Sub-Assy, Fuel, No.1
23802 23802-20020 Pipe Sub-Assy, Fuel, No.2
23802 90401-12015 Bolt, Union(For Fuel Pipe No.2)
23802 90430-12026 Gasket
23807 23814-20020 Pipe Sub-Assy, Fuel Delivery
23807 23814-20021 Pipe Sub-Assy, Fuel Delivery
23807 90561-08020 Spacer, No.1(For Delivery Pipe)
23815 23815-20020 Pipe, Fuel Delivery, No.2
23815 23815-20021 Pipe, Fuel Delivery, No.2
23841 23841-28010 Clamp, Fuel Pipe, No.1(For Efi)
23841 23841-21050 Clamp, Fuel Pipe, No.1(For Efi)
9011908 90119-08C59 New Genuine Part
9008011333 90080-11333 New Genuine Part
9008011455 90080-11455 New Genuine Part
9008017190 90080-17190 New Genuine Part
9017906288 90179-06288 NUT
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9164180650 91641-80650 New Genuine Part
9213280645 92132-80645 New Genuine Part
