MCU33

Lexus RX · 2003 · 8,574 parts · 374 categories

← Back to categories

8,574 items

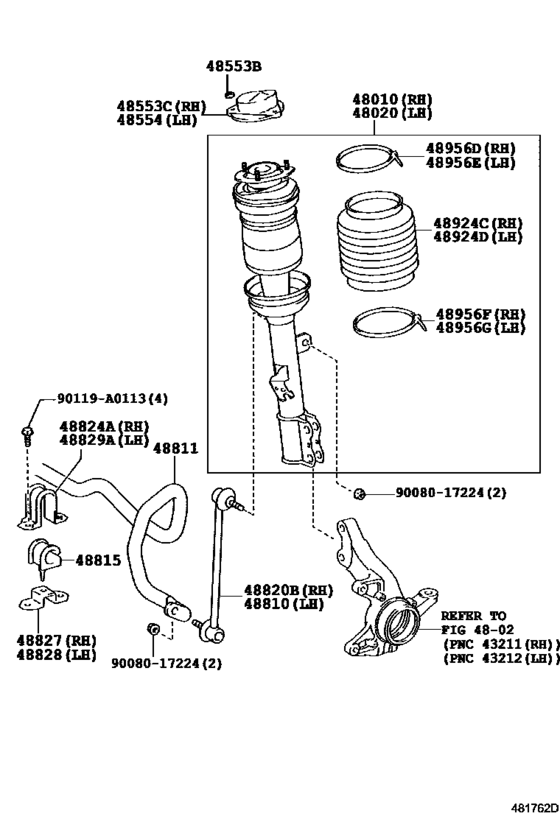

Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP) 17

#	OEM	Part name
48010	48010-48050	Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
48020	48020-48050	Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
48553	90080-17235	Nut(For Front Shock Absorber Cap)
48553	48553-48010	Cap, Front Shock Absorber, Rh
48554	48554-48010	Cap, Front Shock Absorber, Lh
48810	48820-06040	Link Assy, Front Stabilizer
48811	48811-0E010	Bar, Stabilizer, Front
48811	48811-0E020	Bar, Stabilizer, Front
48815	48815-0E010	Bush, Front Stabilizer Bar, No.1
48824	48824-0E010	Bracket, Front Stabilizer, No.1
48827	48827-0E010	Bracket, Front Stabilizer, No.2 Rh
48827	48827-08010	Bracket, Front Stabilizer, No.2
48924	48924-48010	Cover, Front Pneumatic Cylinder, Outer Rh
48956	48956-48010	Band, Rear Height Control Cover, No.1
48956	48956-48020	Band, Rear Height Control Cover, No.2
90119	90119-A0113	New Genuine Part
9008017224	90080-17224	Nut(For Front Stabilizer Link)

OEM	Part name	Category
48010-48050	Cylinder Assy, Pneumatic, Front Rh W/shock Absorber	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48020-48050	Cylinder Assy, Pneumatic, Front Lh W/shock Absorber	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48553-48010	Cap, Front Shock Absorber, Rh	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48554-48010	Cap, Front Shock Absorber, Lh	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48811-0E010	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48811-0E020	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48815-0E010	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48820-06040	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48824-0E010	Bracket, Front Stabilizer, No.1	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48827-08010	Bracket, Front Stabilizer, No.2	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48827-0E010	Bracket, Front Stabilizer, No.2 Rh	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48924-48010	Cover, Front Pneumatic Cylinder, Outer Rh	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48956-48010	Band, Rear Height Control Cover, No.1	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
48956-48020	Band, Rear Height Control Cover, No.2	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
90080-17224	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
90080-17235	Nut(For Front Shock Absorber Cap)	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
90119-A0113	New Genuine Part	Front Spring & Shock Absorber ([09.2003 - ] W(AIR SUSPENSION) (0309- )NAP)
