MCU25

Toyota HIGHLANDER-KLUGER · 2000 · 4,497 parts · 198 categories

4,497 items

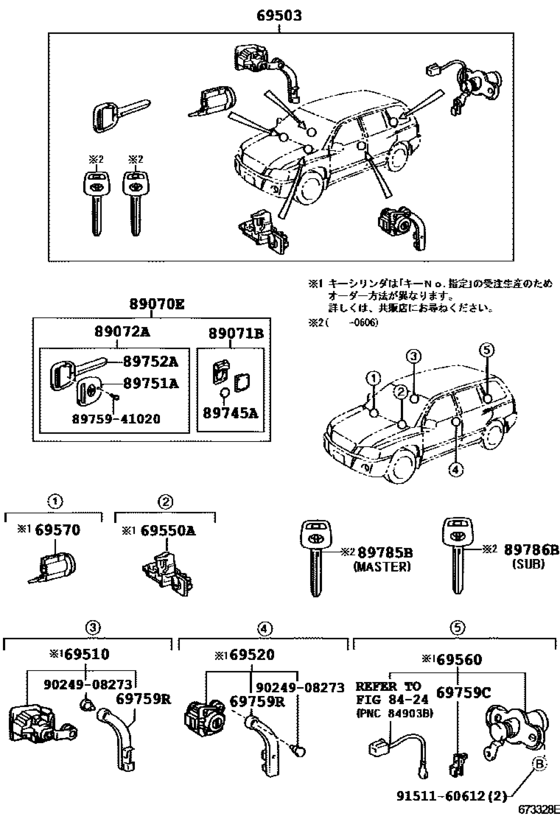

Lock Cylinder Set ([08.2003 - ] (0308- )) 23

#	OEM	Part name
69503	69005-48200	Cylinder Set, Lock
69503	69005-48201	Cylinder Set, Lock
69510	69510-22280	Cylinder Assy, Front Door Lock, Rh
69520	69520-22240	Cylinder Assy, Front Door Lock, Lh
69550	69550-22110	Cylinder Assy, Glove Compartment Door Lock
69560	69560-48050	Cylinder Assy, Back Door Lock
69560	69560-48040	Cylinder Assy, Back Door Lock
69560	84903-48010	Switch Sub-Assy, Door Unlock
69570	69570-12190	Cylinder Assy, Ignition Switch Lock
69759	69759-24080	Snap, Front Door Lock Control Rod
69759	69759-50110	Snap, Front Door Lock Cylinder
69759	69759-50120	Snap, Front Door Lock Cylinder
89070	89070-48A10	Transmitter Assy, Door Control
89071	89071-48270	Module Set, Transmitter Sub-Assy, Door Control
89072	89072-47020	Housing Set, Door Control Transmitter
89745	89745-26010	Battery, Transmitter
89751	89751-44010	Cover, Transmitter Housing
89752	89752-46020	Case, Transmitter Housing
89785	89785-60160	Blank Key
89786	89786-60170	Transmitter, Transponder Key Sub
8975941020	89759-41020	Screw, Door Control Transmitter
9024908273	90249-08273	New Genuine Part
9151160612	91511-60612	BOLT

OEM	Part name	Category
69005-48200	Cylinder Set, Lock	Lock Cylinder Set ([08.2003 - ] (0308- ))
69005-48201	Cylinder Set, Lock	Lock Cylinder Set ([08.2003 - ] (0308- ))
69510-22280	Cylinder Assy, Front Door Lock, Rh	Lock Cylinder Set ([08.2003 - ] (0308- ))
69520-22240	Cylinder Assy, Front Door Lock, Lh	Lock Cylinder Set ([08.2003 - ] (0308- ))
69550-22110	Cylinder Assy, Glove Compartment Door Lock	Lock Cylinder Set ([08.2003 - ] (0308- ))
69560-48040	Cylinder Assy, Back Door Lock	Lock Cylinder Set ([08.2003 - ] (0308- ))
69560-48050	Cylinder Assy, Back Door Lock	Lock Cylinder Set ([08.2003 - ] (0308- ))
69570-12190	Cylinder Assy, Ignition Switch Lock	Lock Cylinder Set ([08.2003 - ] (0308- ))
69759-24080	Snap, Front Door Lock Control Rod	Lock Cylinder Set ([08.2003 - ] (0308- ))
69759-50110	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([08.2003 - ] (0308- ))
69759-50120	Snap, Front Door Lock Cylinder	Lock Cylinder Set ([08.2003 - ] (0308- ))
84903-48010	Switch Sub-Assy, Door Unlock	Lock Cylinder Set ([08.2003 - ] (0308- ))
89070-48A10	Transmitter Assy, Door Control	Lock Cylinder Set ([08.2003 - ] (0308- ))
89071-48270	Module Set, Transmitter Sub-Assy, Door Control	Lock Cylinder Set ([08.2003 - ] (0308- ))
89072-47020	Housing Set, Door Control Transmitter	Lock Cylinder Set ([08.2003 - ] (0308- ))
89745-26010	Battery, Transmitter	Lock Cylinder Set ([08.2003 - ] (0308- ))
89751-44010	Cover, Transmitter Housing	Lock Cylinder Set ([08.2003 - ] (0308- ))
89752-46020	Case, Transmitter Housing	Lock Cylinder Set ([08.2003 - ] (0308- ))
89759-41020	Screw, Door Control Transmitter	Lock Cylinder Set ([08.2003 - ] (0308- ))
89785-60160	Blank Key	Lock Cylinder Set ([08.2003 - ] (0308- ))
89786-60170	Transmitter, Transponder Key Sub	Lock Cylinder Set ([08.2003 - ] (0308- ))
90249-08273	New Genuine Part	Lock Cylinder Set ([08.2003 - ] (0308- ))
91511-60612	BOLT	Lock Cylinder Set ([08.2003 - ] (0308- ))
