MCU25

Toyota HIGHLANDER-KLUGER · 2000 · 4,497 parts · 198 categories
MCU25 ×

← Back to categories

4,497 items

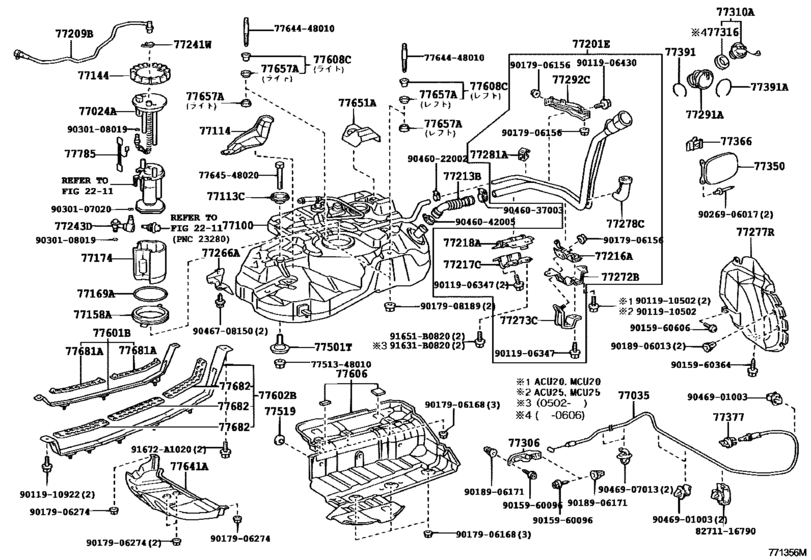

Fuel Tank & Tube ([08.2003 - ] FUEL TANK (0308- )) 95
#OEMPart name
77024 77024-48010 Plate Sub-Assy, Fuel Suction
77035 77035-48050 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-48080 Tank Assy, Fuel
77100 77001-48081 Tank Assy, Fuel
77113 77103-48021 Plate, Fuel Tank Side
77114 77114-48010 Plate, Fuel Tank Side, Rear
77144 77144-48020 Retainer, Fuel Pump Gauge
77158 77158-48020 Support, Tank Suction Tube
77169 77169-48020 Gasket, Fuel Suction Tube Set
77169 77169-48060 Gasket, Fuel Suction Tube Set
77169 77169-48040 Gasket, Fuel Suction Tube Set
77174 77174-35030 Support, Fuel Suction, No.1
77174 77174-35032 Support, Fuel Suction, No.1
77174 77174-35031 Support, Fuel Suction, No.1
77201 77210-48140 Pipe Sub-Assy, Fuel Tank Filler
77201 77210-48141 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-48020 Tube Sub-Assy, Fuel Pump
77209 77209-48030 Tube Sub-Assy, Fuel Pump
77213 77213-48070 Hose, Fuel Tank To Filler Pipe
77216 77216-48040 Support, Fuel Tank Filler Pipe, No.1
77217 77217-48040 Support, Fuel Tank Filler Pipe, No.2
77217 77217-48050 Support, Fuel Tank Filler Pipe, No.2
77218 77218-48040 Support, Fuel Tank Filler Pipe, No.3
77218 77218-48070 Support, Fuel Tank Filler Pipe, No.3
77241 77241-33011 Clip, Tube Joint
77243 77243-48020 Joint, Fuel Tube, No.1
77266 77266-48010 Protector, Fuel Tube, No.1
77272 77272-48020 Support, Breather Tube, No.1
77273 77273-48020 Support, Breather Tube, No.2
77277 77277-48060 Protector, Fuel Tank Filler Pipe
77278 77278-48010 Protector, Fuel Tank Filler Pipe, No.2
77281 77281-48030 Clamp, Fuel Filler Pipe
77281 77281-48070 Clamp, Fuel Filler Pipe
77291 77291-48030 Shield, Fuel Tank Filler Pipe
77292 77292-48010 Shield, Fuel Tank Filler Pipe, No.2
77292 77292-48020 Shield, Fuel Tank Filler Pipe, No.2
77306 77306-48010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-28010 Cap Assy, Fuel Tank
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-48070 Lid Assy, Fuel Filler Opening
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-33010 Ring, Fuel Inlet Box
77501 77501-48011 Bracket Sub-Assy, Fuel Tank
77519 77529-48010 Spacer, Fuel Tank Bracket
77601 77601-48040 Band Sub-Assy, Fuel Tank, No.1 Rh
77601 77601-48070 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-48040 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-48070 Protector Sub-Assy, Fuel Tank, No.1
77608 77608-48011 Cushion Set, Fuel Tank
77608 77608-48020 Cushion Set, Fuel Tank
77641 77641-48040 Protector, Fuel Tank, No.1
77651 77651-48010 Cushion, Fuel Tank, No.1
77657 77655-48011 Cushion, Fuel Tank, No.5
77657 77655-48020 Cushion, Fuel Tank, No.5
77681 77681-48010 Seat, Fuel Tank Band
77681 77681-48050 Seat, Fuel Tank Band
77682 77682-48010 Seat, Fuel Tank Band, Lh
77785 77785-48010 Harness, Fuel Pump
77785 77785-48011 Harness, Fuel Pump
91631 91631-B0820 BOLT WWASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91672 91672-A1020 New Genuine Part
7751348010 77513-48010 Retainer, Lpg Tank Bracket, Front
7764448010 77644-48010 Bolt, Fuel Tank
7764548020 77645-48020 Packing, Fuel Tank Bracket Upper, B
8271116790 82711-16790 Clamp, Wiring Harness
9011906347 90119-06347 New Genuine Part
9011906430 90119-06430 BOLT WWASHER
9011910502 90119-10502 BOLT WWASHER
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015960096 90159-60096 New Genuine Part
9015960364 90159-60364 SCREW WWASHER
9015960606 90159-60606 New Genuine Part
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906168 90179-06168 Nut & Washer Assy
9017906274 90179-06274 Nut
9017908189 90179-08189 NUT
9018906013 90189-06013 CLIP
9018906171 90189-06171 GROMMET SCREW
9026906017 90269-06017 RIVET
9030107020 90301-07020 Ring, O(For Fuel Pressure Regulator)
9030108019 90301-08019 Ring, O(For Fuel Pressure Regulator)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046037003 90460-37003 Clamp, Fuel Hose
9046042005 90460-42005 Clamp (For Fuel Filler Pipe)
9046042005 90460-40007 Clamp (For Fuel Filler Pipe)
9046708150 90467-08150 Clip(For Luggage Compartment Trim Cover)
9046901003 90469-01003 Clamp(For Hood Lock Control Cable)
9046907013 90469-07013 New Genuine Part
