Search › Model › MCU25

MCU25

Toyota HIGHLANDER-KLUGER · 2000 · 4,497 parts · 198 categories

4,497 items

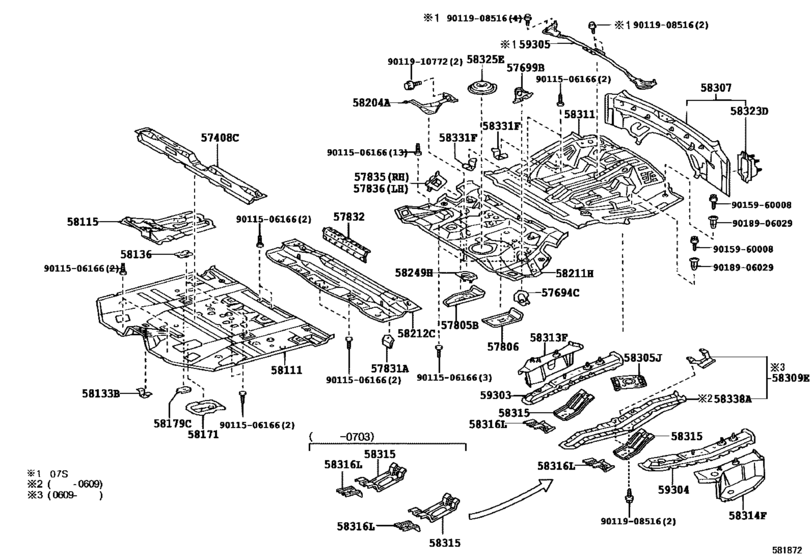

Floor Pan & Lower Back Panel ([08.2003 - ] (0308- )) 49

#	OEM	Part name
57408	58013-48010	Member Sub-Assy, Front Floor Cross
57694	57693-48010	Reinforcement, Fuel Tank Mounting Bracket, Lh
57699	57699-48010	Reinforce, Fuel Tank Mounting Bracket, No.3
57805	57805-48030	Reinforcement Sub-Assy, Belt Anchor, Rh
57806	57806-48010	Reinforcement Sub-Assy, Belt Anchor, Lh
57831	57831-48010	Reinforcement, Rear No.1 Seat Leg, Front No.1
57832	57832-48020	Reinforcement, Rear No.1 Seat Leg, Front No.2
57835	57835-48020	Reinforcement, Rear No.1 Seat Leg, Rear No.1
57836	57836-48020	Reinforcement, Rear No.1 Seat Leg, Rear No.2
58111	58111-48907	Pan, Front Floor
58111	58111-48912	Pan, Front Floor
58111	58111-48923	Pan, Front Floor
58115	58115-48040	Reinforcement, Front Floor Panel, Front
58133	58133-22040	Bracket, Front Floor Heat Insulator, No.3
58136	58136-48030	Cover, Front Floor Hole
58171	58171-48030	Reinforcement, Parking Brake Base
58179	58179-48010	Bracket, Clamp Floor
58204	58204-48030	Reinforcement Sub-Assy, Center Floor Panel, Lh
58211	58211-48903	Pan, Center Floor
58211	58211-48917	Pan, Center Floor
58211	58674-48021	Pad, Rear Floor Silencer, No.2
58211	58211-48908	Pan, Center Floor
58212	58212-48904	Pan, Center Floor, Front
58249	58249-48010	Bracket, Center Floor Board Support
58305	58305-48010	Bracket, Spare Wheel Carrier
58305	58305-48011	Bracket, Spare Wheel Carrier
58307	58307-48080	Panel Sub-Assy, Body Lower Back
58309	58309-48010	Plate Sub-Assy, Rear Floor
58311	58311-48905	Pan, Rear Floor
58313	58313-48050	Panel, Rear Floor Side, Rh
58314	58314-48030	Panel, Rear Floor Side, Lh
58315	58315-48011	Extension, Rear Floor Panel
58315	58315-48020	Extension, Rear Floor Panel
58316	58316-48010	Extension, Rear Floor Pan, Lh
58316	58316-48020	Extension, Rear Floor Pan, Lh
58323	58323-48040	Reinforcement, Rear Bumper Arm Support
58323	58324-48030	Reinforcement, Rear Bumper Arm Support
58325	58325-48020	Cover, Rear Floor Service Hole
58331	58331-10010	Bracket, Rear Floor Heat Insulator, No.3
58331	58331-10011	Cover, Rear Floor Service Hole, No.2
58338	58339-48010	Reinforcement, Rear Floor Pan, No.2
59303	59303-48010	Panel Sub-Assy, 3Rd Seat Floor Side, Rh
59304	59304-48010	Panel Sub-Assy, 3Rd Seat Floor Side, Lh
59305	59305-48010	Member Sub-Assy, 3Rd Seat Floor Cross
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011908516	90119-08516	BOLT
9011910772	90119-10772	New Genuine Part
9015960008	90159-60008	SCREW
9018906029	90189-06029	GROMMET

OEM	Part name	Category
57693-48010	Reinforcement, Fuel Tank Mounting Bracket, Lh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
57699-48010	Reinforce, Fuel Tank Mounting Bracket, No.3	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
57805-48030	Reinforcement Sub-Assy, Belt Anchor, Rh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
57806-48010	Reinforcement Sub-Assy, Belt Anchor, Lh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
57831-48010	Reinforcement, Rear No.1 Seat Leg, Front No.1	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
57832-48020	Reinforcement, Rear No.1 Seat Leg, Front No.2	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
57835-48020	Reinforcement, Rear No.1 Seat Leg, Rear No.1	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
57836-48020	Reinforcement, Rear No.1 Seat Leg, Rear No.2	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58013-48010	Member Sub-Assy, Front Floor Cross	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58111-48907	Pan, Front Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58111-48912	Pan, Front Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58111-48923	Pan, Front Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58115-48040	Reinforcement, Front Floor Panel, Front	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58133-22040	Bracket, Front Floor Heat Insulator, No.3	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58136-48030	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58171-48030	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58179-48010	Bracket, Clamp Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58204-48030	Reinforcement Sub-Assy, Center Floor Panel, Lh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58211-48903	Pan, Center Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58211-48908	Pan, Center Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58211-48917	Pan, Center Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58212-48904	Pan, Center Floor, Front	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58249-48010	Bracket, Center Floor Board Support	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58305-48010	Bracket, Spare Wheel Carrier	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58305-48011	Bracket, Spare Wheel Carrier	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58307-48080	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58309-48010	Plate Sub-Assy, Rear Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58311-48905	Pan, Rear Floor	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58313-48050	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58314-48030	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58315-48011	Extension, Rear Floor Panel	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58315-48020	Extension, Rear Floor Panel	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58316-48010	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58316-48020	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58323-48040	Reinforcement, Rear Bumper Arm Support	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58324-48030	Reinforcement, Rear Bumper Arm Support	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58325-48020	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58331-10010	Bracket, Rear Floor Heat Insulator, No.3	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58331-10011	Cover, Rear Floor Service Hole, No.2	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58339-48010	Reinforcement, Rear Floor Pan, No.2	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
58674-48021	Pad, Rear Floor Silencer, No.2	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
59303-48010	Panel Sub-Assy, 3Rd Seat Floor Side, Rh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
59304-48010	Panel Sub-Assy, 3Rd Seat Floor Side, Lh	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
59305-48010	Member Sub-Assy, 3Rd Seat Floor Cross	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
90119-08516	BOLT	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
90119-10772	New Genuine Part	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
90159-60008	SCREW	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))
90189-06029	GROMMET	Floor Pan & Lower Back Panel ([08.2003 - ] (0308- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 198
Collected: 2026-08-03
