Search › Model › MCU25

MCU25

Toyota HIGHLANDER-KLUGER · 2000 · 4,497 parts · 198 categories

4,497 items

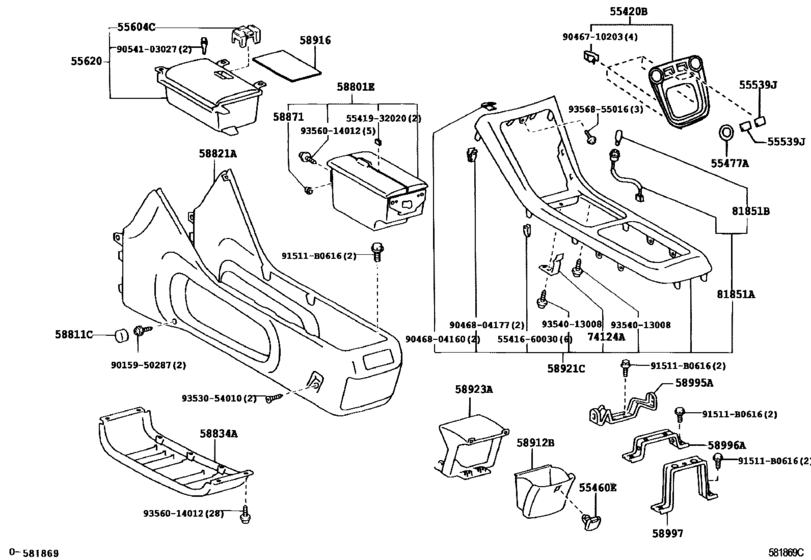

Console Box & Bracket ([08.2003 - ] (0308- )) 45

#	OEM	Part name
55420	55420-48010-B0	Panel Assy, Instrument Cluster Finish, Center No.1
55460	55460-33010-B6	Lock Assy, Instrument Panel Box
55460	55460-33010-P1	Lock Assy, Instrument Panel Box
55460	55460-33010-C1	Lock Assy, Instrument Panel Box
55477	55477-48020	Bezel, Cigarette Lighter Hole
55539	55539-48010	Cover, Spare Switch Hole
55604	55604-48020	Holder Sub-Assy, Console Box Cup
55620	55620-48020-B0	Holder Assy, Instrument Panel Cup
55620	55620-48020-E1	Holder Assy, Instrument Panel Cup
58801	58801-48040-B1	Box Sub-Assy, Console, Upper
58801	58801-48040-C0	Box Sub-Assy, Console, Upper
58811	90339-10014-B5	Cap(For Console)
58811	90339-10014-C0	Cap
58821	58821-48020-B2	Panel, Console
58821	58821-48020-C0	Panel, Console
58834	58834-48020-B2	Cover, Console, Lower
58834	58834-48020-C0	Cover, Console, Lower
58871	58871-30050	Cushion, Console Box
58912	58912-48030-B1	Box, Rear Console, Lower
58912	58912-48030-C0	Box, Rear Console, Lower
58916	58916-48020	Mat, Box Bottom
58921	58921-48050-B0	Plate, Box, Upper No.1
58921	58921-48050-C0	Plate, Box, Upper No.1
58923	58923-48010-B2	Panel, Console Rear End
58923	58923-48010-C0	Panel, Console Rear End
58995	58995-48030	Bracket, Console Box Mounting, No.1
58996	58996-48020	Bracket, Console Box Mounting, No.2
58997	58997-48020	Bracket, Console Box Mounting, No.3
74124	74124-20120	Spring, Ash Receptacle
81851	81850-48010	Lamp Assy, Indicator
81851	90981-11014	Bulb, Position Indicator Lamp
91511	91511-B0616	BOLT, FLANGE
91511	90080-10164	BOLT, FLANGE
5541660030	55416-60030	Retainer, Instrument Cluster Finish Panel
5541932020	55419-32020	Cushion, Instrument Cluster Finish Panel
9015950287	90159-50287	SCREW WWASHER
9046710203	90467-10203	Direct
9046804160	90468-04160	Clip, Instrument Panel, No.2
9046804177	90468-04177	Clip(For Instrument Panel Under Cover)
9054103027	90541-03027	New Genuine Part
9353054010	93530-54010	SCREW
9353054010	90084-16012	SCREW
9354013008	93540-13008	New Genuine Part
9356014012	93560-14012	SCREW
9356855016	93568-55016	Screw

OEM	Part name	Category
55416-60030	Retainer, Instrument Cluster Finish Panel	Console Box & Bracket ([08.2003 - ] (0308- ))
55419-32020	Cushion, Instrument Cluster Finish Panel	Console Box & Bracket ([08.2003 - ] (0308- ))
55420-48010-B0	Panel Assy, Instrument Cluster Finish, Center No.1	Console Box & Bracket ([08.2003 - ] (0308- ))
55460-33010-B6	Lock Assy, Instrument Panel Box	Console Box & Bracket ([08.2003 - ] (0308- ))
55460-33010-C1	Lock Assy, Instrument Panel Box	Console Box & Bracket ([08.2003 - ] (0308- ))
55460-33010-P1	Lock Assy, Instrument Panel Box	Console Box & Bracket ([08.2003 - ] (0308- ))
55477-48020	Bezel, Cigarette Lighter Hole	Console Box & Bracket ([08.2003 - ] (0308- ))
55539-48010	Cover, Spare Switch Hole	Console Box & Bracket ([08.2003 - ] (0308- ))
55604-48020	Holder Sub-Assy, Console Box Cup	Console Box & Bracket ([08.2003 - ] (0308- ))
55620-48020-B0	Holder Assy, Instrument Panel Cup	Console Box & Bracket ([08.2003 - ] (0308- ))
55620-48020-E1	Holder Assy, Instrument Panel Cup	Console Box & Bracket ([08.2003 - ] (0308- ))
58801-48040-B1	Box Sub-Assy, Console, Upper	Console Box & Bracket ([08.2003 - ] (0308- ))
58801-48040-C0	Box Sub-Assy, Console, Upper	Console Box & Bracket ([08.2003 - ] (0308- ))
58821-48020-B2	Panel, Console	Console Box & Bracket ([08.2003 - ] (0308- ))
58821-48020-C0	Panel, Console	Console Box & Bracket ([08.2003 - ] (0308- ))
58834-48020-B2	Cover, Console, Lower	Console Box & Bracket ([08.2003 - ] (0308- ))
58834-48020-C0	Cover, Console, Lower	Console Box & Bracket ([08.2003 - ] (0308- ))
58871-30050	Cushion, Console Box	Console Box & Bracket ([08.2003 - ] (0308- ))
58912-48030-B1	Box, Rear Console, Lower	Console Box & Bracket ([08.2003 - ] (0308- ))
58912-48030-C0	Box, Rear Console, Lower	Console Box & Bracket ([08.2003 - ] (0308- ))
58916-48020	Mat, Box Bottom	Console Box & Bracket ([08.2003 - ] (0308- ))
58921-48050-B0	Plate, Box, Upper No.1	Console Box & Bracket ([08.2003 - ] (0308- ))
58921-48050-C0	Plate, Box, Upper No.1	Console Box & Bracket ([08.2003 - ] (0308- ))
58923-48010-B2	Panel, Console Rear End	Console Box & Bracket ([08.2003 - ] (0308- ))
58923-48010-C0	Panel, Console Rear End	Console Box & Bracket ([08.2003 - ] (0308- ))
58995-48030	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([08.2003 - ] (0308- ))
58996-48020	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([08.2003 - ] (0308- ))
58997-48020	Bracket, Console Box Mounting, No.3	Console Box & Bracket ([08.2003 - ] (0308- ))
74124-20120	Spring, Ash Receptacle	Console Box & Bracket ([08.2003 - ] (0308- ))
81850-48010	Lamp Assy, Indicator	Console Box & Bracket ([08.2003 - ] (0308- ))
90080-10164	BOLT, FLANGE	Console Box & Bracket ([08.2003 - ] (0308- ))
90084-16012	SCREW	Console Box & Bracket ([08.2003 - ] (0308- ))
90159-50287	SCREW WWASHER	Console Box & Bracket ([08.2003 - ] (0308- ))
90339-10014-B5	Cap(For Console)	Console Box & Bracket ([08.2003 - ] (0308- ))
90339-10014-C0	Cap	Console Box & Bracket ([08.2003 - ] (0308- ))
90467-10203	Direct	Console Box & Bracket ([08.2003 - ] (0308- ))
90468-04160	Clip, Instrument Panel, No.2	Console Box & Bracket ([08.2003 - ] (0308- ))
90468-04177	Clip(For Instrument Panel Under Cover)	Console Box & Bracket ([08.2003 - ] (0308- ))
90541-03027	New Genuine Part	Console Box & Bracket ([08.2003 - ] (0308- ))
90981-11014	Bulb, Position Indicator Lamp	Console Box & Bracket ([08.2003 - ] (0308- ))
91511-B0616	BOLT, FLANGE	Console Box & Bracket ([08.2003 - ] (0308- ))
93530-54010	SCREW	Console Box & Bracket ([08.2003 - ] (0308- ))
93540-13008	New Genuine Part	Console Box & Bracket ([08.2003 - ] (0308- ))
93560-14012	SCREW	Console Box & Bracket ([08.2003 - ] (0308- ))
93568-55016	Screw	Console Box & Bracket ([08.2003 - ] (0308- ))
