MCU25

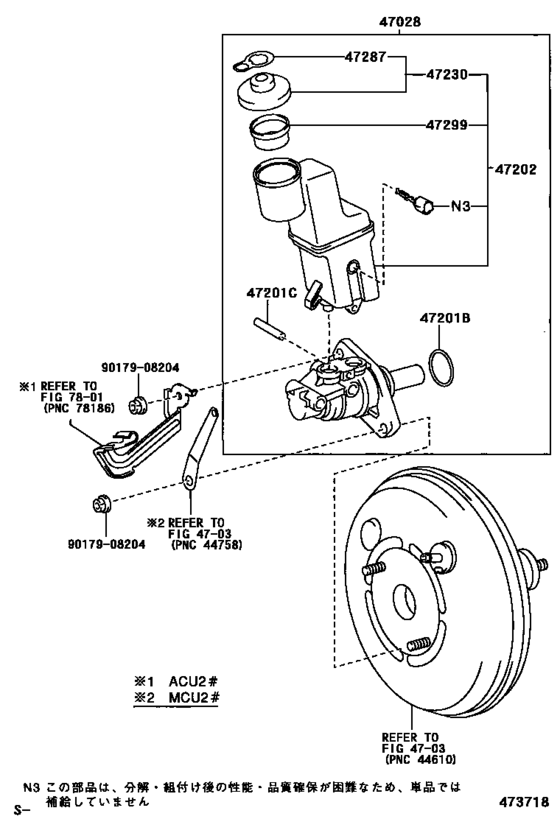

Brake Master Cylinder ([08.2003 - ] (0308- )) 10
| # | OEM | Part name |
|---|---|---|
| 47028 | 47028-48030 | Cylinder Sub-Assy, Brake Master W/plate |
| 47028 | 47028-48031 | Cylinder Sub-Assy, Brake Master W/plate |
| 47201 | 90029-20059 | Ring, O(For Brake Master Cylinder) |
| 47201 | 90029-15803 | Ring Pin, Brake Master Cylinder |
| 47202 | 47220-48150 | Reservoir Sub-Assy, Brake Master Cylinder |
| 47230 | 47230-20140 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47287 | 47287-20010 | Label, Brake Fluid Information |
| 47299 | 47299-25010 | Strainer, Master Cylinder Reservoir |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 47028-48030 | Cylinder Sub-Assy, Brake Master W/plate | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 47028-48031 | Cylinder Sub-Assy, Brake Master W/plate | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 47220-48150 | Reservoir Sub-Assy, Brake Master Cylinder | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 47230-20140 | Cap Assy, Brake Master Cylinder Reservoir Filler | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 47287-20010 | Label, Brake Fluid Information | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 47299-25010 | Strainer, Master Cylinder Reservoir | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 90029-15803 | Ring Pin, Brake Master Cylinder | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 90029-20059 | Ring, O(For Brake Master Cylinder) | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 90080-18070 | NUT, WWASHER | Brake Master Cylinder ([08.2003 - ] (0308- )) |
| 90179-08204 | Nut | Brake Master Cylinder ([08.2003 - ] (0308- )) |
