Search › Model › MCU25
MCU25

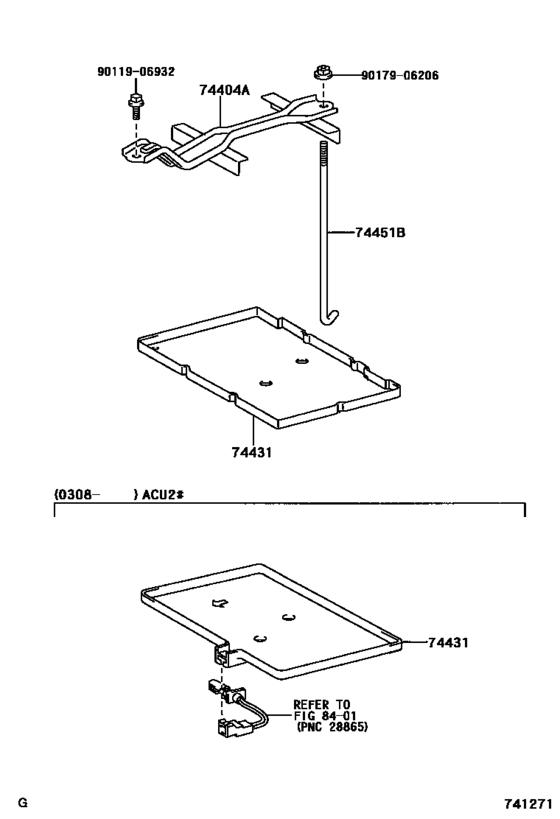

Battery Carrier ([11.2000 - ] (0011- )) 5
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-48020 | Clamp Sub-Assy, Battery |
| 74431 | 74431-33011 | Tray, Battery |
| 74451 | 74452-33010 | Bolt, Battery Clamp |
| 9011906932 | 90119-06932 | BOLT WWASHER |
| 9017906206 | 90179-06206 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74404-48020 | Clamp Sub-Assy, Battery | Battery Carrier ([11.2000 - ] (0011- )) |
| 74431-33011 | Tray, Battery | Battery Carrier ([11.2000 - ] (0011- )) |
| 74452-33010 | Bolt, Battery Clamp | Battery Carrier ([11.2000 - ] (0011- )) |
| 90119-06932 | BOLT WWASHER | Battery Carrier ([11.2000 - ] (0011- )) |
| 90179-06206 | Nut | Battery Carrier ([11.2000 - ] (0011- )) |
