Search › Model › MCU23
MCU23

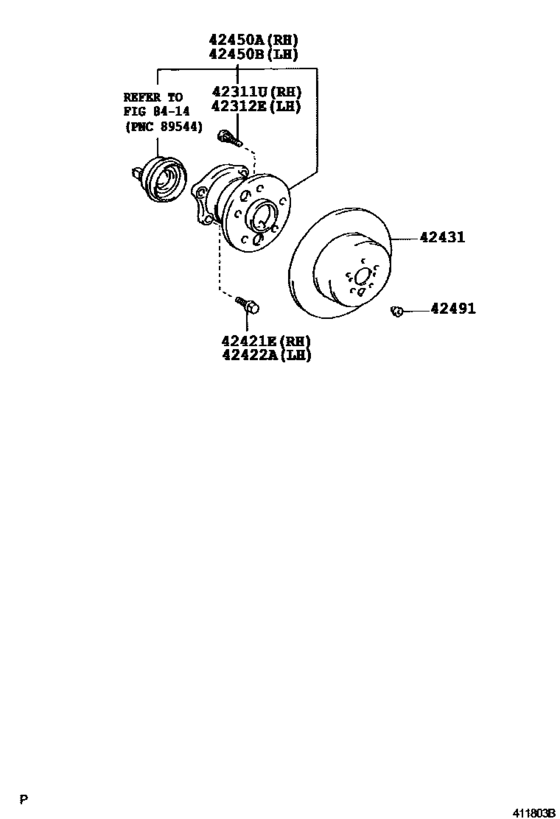

Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) 8
| # | OEM | Part name |
|---|---|---|
| 42311 | 90942-02049 | Bolt, Hub |
| 42311 | 90942-02082 | Bolt, Hub |
| 42421 | 90105-12332 | Bolt (For Rear Axle Bearing Case Rh) |
| 42431 | 42431-48041 | Disc, Rear |
| 42431 | 42431-48050 | Disc, Rear |
| 42450 | 42450-48030 | Hub & Bearing Assy, Rear Axle, Rh |
| 42450 | 42460-48030 | Hub & Bearing Assy, Rear Axle, Lh |
| 42491 | 47491-22020 | Plug, Shoe Adjusting Hole (For Parking Brake) |
| OEM | Part name | Category |
|---|---|---|
| 42431-48041 | Disc, Rear | Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) |
| 42431-48050 | Disc, Rear | Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) |
| 42450-48030 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) |
| 42460-48030 | Hub & Bearing Assy, Rear Axle, Lh | Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) |
| 47491-22020 | Plug, Shoe Adjusting Hole (For Parking Brake) | Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) |
| 90105-12332 | Bolt (For Rear Axle Bearing Case Rh) | Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) |
| 90942-02049 | Bolt, Hub | Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) |
| 90942-02082 | Bolt, Hub | Rear Axle Shaft & Hub ([11.2000 - ] (0011- )ACU20,MCU20,23) |
