MCU15

Toyota HARRIER · 1998 · 6,540 parts · 209 categories
MCU15 ×

← Back to categories

6,540 items

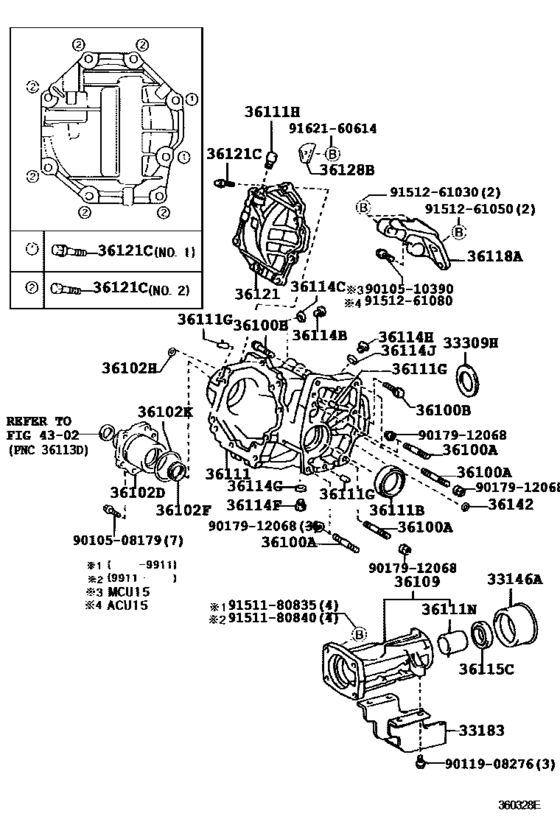

Transfer Case & Extension Housing ([12.1997 - ] (9712- )ACU15,MCU15) 98
#OEMPart name
33146 33146-30010 Deflector, Extension Housing Dust(Mtm)
33146 33146-30020 Deflector, Extension Housing Dust(Mtm)
33183 33183-33010 Damper, Transfer Dynamic
33309 36275-21010 Washer, Transfer Output Shaft
33309 36275-21020 Washer, Transfer Output Shaft
33309 36275-21030 Washer, Transfer Output Shaft
33309 36275-21040 Washer, Transfer Output Shaft
33309 36275-21050 Washer, Transfer Output Shaft
33309 36275-21060 Washer, Transfer Output Shaft
33309 36275-21070 Washer, Transfer Output Shaft
33309 36275-21080 Washer, Transfer Output Shaft
33309 36275-21090 Washer, Transfer Output Shaft
33309 36275-21100 Washer, Transfer Output Shaft
33309 36275-21110 Washer, Transfer Output Shaft
33309 36275-21120 Washer, Transfer Output Shaft
33309 36275-21130 Washer, Transfer Output Shaft
33309 36275-21140 Washer, Transfer Output Shaft
33309 36275-21150 Washer, Transfer Output Shaft
33309 36275-21160 Washer, Transfer Output Shaft
33309 36275-21170 Washer, Transfer Output Shaft
33309 36275-21180 Washer, Transfer Output Shaft
33309 36275-21190 Washer, Transfer Output Shaft
33309 36275-21200 Washer, Transfer Output Shaft
33309 36275-21210 Washer, Transfer Output Shaft
33309 36275-21220 Washer, Transfer Output Shaft
33309 36275-21230 Washer, Transfer Output Shaft
33309 36275-21240 Washer, Transfer Output Shaft
33309 36275-21250 Washer, Transfer Output Shaft
33309 36275-21260 Washer, Transfer Output Shaft
33309 36275-21270 Washer, Transfer Output Shaft
33309 36275-21280 Washer, Transfer Output Shaft
33309 36275-21290 Washer, Transfer Output Shaft
33309 36275-21300 Washer, Transfer Output Shaft
33309 36275-21310 Washer, Transfer Output Shaft
33309 36275-21320 Washer, Transfer Output Shaft
33309 36275-21330 Washer, Transfer Output Shaft
33309 36275-21340 Washer, Transfer Output Shaft
33309 36275-21350 Washer, Transfer Output Shaft
33309 36275-21360 Washer, Transfer Output Shaft
33309 36275-21370 Washer, Transfer Output Shaft
33309 36275-21380 Washer, Transfer Output Shaft
33309 36275-21390 Washer, Transfer Output Shaft
33309 36275-21400 Washer, Transfer Output Shaft
33309 36275-21410 Washer, Transfer Output Shaft
33309 36275-21420 Washer, Transfer Output Shaft
33309 36275-21430 Washer, Transfer Output Shaft
33309 36275-21440 Washer, Transfer Output Shaft
33309 36275-21450 Washer, Transfer Output Shaft
33309 36275-21460 Washer, Transfer Output Shaft
36100 90116-12033 Bolt, Stud (For Transfer & Transaxle Setting)
36100 90116-12034 Bolt, Stud (For Transfer & Transaxle Setting)
36100 90105-12228 Bolt (For Transfer & Transaxle Setting)
36102 36102-21010 Retainer Sub-Assy, Transfer Rh Bearing
36102 36102-48010 Retainer Sub-Assy, Transfer Rh Bearing
36102 90316-37001 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)
36102 90301-11018 Ring, O (For Transfer Rh Bearing Retainer)
36102 90301-70002 Ring, O
36109 36109-33010 Housing Sub-Assy, Transfer Extension
36109 36109-48010 Housing Sub-Assy, Transfer Extension
36111 36111-48010 Case, Transfer
36111 36111-48040 Case, Transfer
36111 36141-21010 Gasket, Transfer Cover
36111 36121-48010 Cover, Transfer Case, No.1
36111 36111-48020 Case, Transfer
36111 90311-58009 Seal, Oil (For Transfer Case)
36111 90250-08030 Pin, Straight(For Crankshaft)
36111 90250-08046 Pin, Straight(For Intake Manifold Setting)
36111 90250-10017 Pin, Straight(For Clutch Housing Set)
36111 90930-03133 Plug, Breather
36111 90999-73105 Bush(For Manual Transmission Extension Housing)
36114 90341-18055 Plug, No.1 (For Transfer Case)
36114 90341-18072 Plug, No.1 (For Transfer Case)
36114 12157-10010 Gasket (For Drain Plug)
36114 90341-18057 Drain Plug (with Magnet)
36114 90341-18006 Plug (No magnet)
36115 90311-38062 Seal, Type T Oil (For Transfer Extension Housing)
36115 90311-38090 Seal, Type T Oil (For Transfer Extension Housing)
36118 36118-33020 Plate, Transfer Stiffener, Rh
36121 36121-21020 Cover, Transfer Case, No.1
36121 90105-08351 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
36121 91511-60820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
36121 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
36128 36128-21010 Deflector, Breather Oil
36142 36142-12010 Gasket, Transfer Cover
9010508179 90105-08179 Bolt (For Front Oil Pump Setting)
9010508179 90105-08198 Bolt (For Front Oil Pump Setting)
9010510390 90105-10390 Bolt(For Vane Pump Bracket Settinng)
9011908276 90119-08276 New Genuine Part
9011908276 90119-08336 BOLT
9017912068 90179-12068 Nut(For Transaxle Case Cover)
9151180835 91511-80835 Bolt(For Transaxle Case & Engine Setting)
9151180835 91511-C0835 Bolt(For Transaxle Case & Engine Setting)
9151180840 91511-80840 Bolt(For Crankshaft Bearing Cap Set)
9151180840 91511-K0840 Bolt(For Crankshaft Bearing Cap Set)
9151261030 91512-61030 Bolt (For Transaxle Case Upper Cover)
9151261050 91512-61050 Bolt(For Alternator)
9151261080 91512-61080 Bolt
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
