MCU10

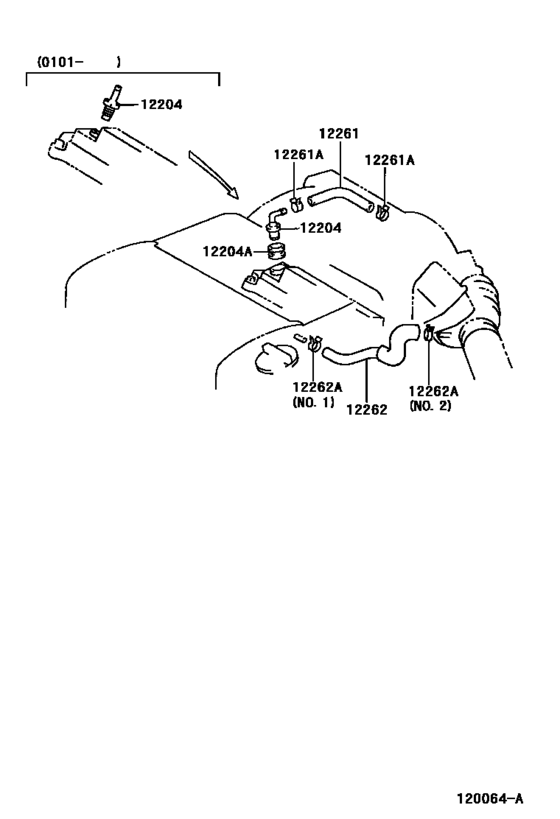

Ventilation Hose ([12.1997 - ] (9712- )1MZFE) 10
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-20010 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-20040 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12261 | 12261-20011 | Hose, Ventilation |
| 12261 | 90467-14017 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12261-20020 | Hose, Ventilation, No.2 |
| 12262 | 90467-17011 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 96134-51700 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90467-20005 | Clip(For Ventilation Hose No.2) |
| 12262 | 96134-41900 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-20010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 12204-20040 | Valve Sub-Assy, Ventilation | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 12261-20011 | Hose, Ventilation | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 12261-20020 | Hose, Ventilation, No.2 | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 90467-14017 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 90467-17011 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 90467-20005 | Clip(For Ventilation Hose No.2) | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 96134-41900 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
| 96134-51700 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([12.1997 - ] (9712- )1MZFE) |
