Search › Model › MCU10

MCU10

Toyota HARRIER · 1997 · 6,103 parts · 205 categories

6,103 items

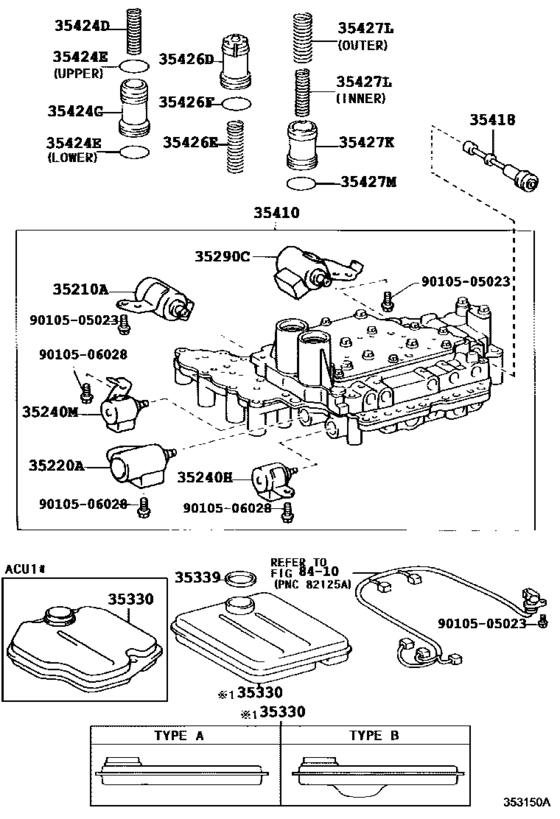

Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- )) 43

#	OEM	Part name
35195	35195-21010	Clamp, Transaxle Apply Tube, No.1
35196	35196-21010	Clamp, Transaxle Apply Tube, No.2
35210	35210-21010	Solenoid Assy, Clutch Control, No.1
35220	35220-21010	Solenoid Assy, Clutch Control, No.2
35240	35230-21010	Solenoid Assy, Transmission 3Way, No.2
35240	35240-21010	Solenoid Assy, Automatic Transmission 3Way
35251	35251-30020	Body, Check Ball
35251	90501-03005	Spring, Compression (For Check Ball Body)
35290	35290-21010	Solenoid Assy, Line Pressure Control
35330	35330-06010	Strainer Assy, Valve Body Oil
35330	35330-21011	Strainer Assy, Valve Body Oil
35330	35330-21020	Strainer Assy, Valve Body Oil
35339	90301-32010	O-ring (Gasket, Oil Strainer)
35409	35409-21010	Spring Sub-Assy, Manual Detent
35410	35410-48010	Body Assy, Transmission Valve
35410	35410-48011	Body Assy, Transmission Valve
35410	35418-21011	Valve, Manual
35418	35418-21010	Valve, Manual
35424	35424-21010	Piston, C-1 Accumulator
35424	90501-20151	Spring, Compression (For C-1 Accumulator Piston)
35424	90301-27008	Ring, O (For C-1 Accumulator Piston)
35424	90301-30007	Ring, O (For C-1 Accumulator Piston)
35426	35406-21010	Piston, C-3 Accumulator
35426	90905-01035	Spring, Compression (For C-3 Accumulator Piston)
35427	35427-21010	Piston, B-3 Accumulator
35427	90501-22041	Spring, Compression (For B-3 Accumulator Piston)
35427	90501-25053	Spring, Compression (For B-3 Accumulator Piston)
35427	90301-28008	Ring, O (For C-2 Accumulator Piston)
35599	35599-21010	Cover, Manual Detent Spring
35666	35666-21010	Tube, Brake Apply
35882	35882-21010	Tube, Differential Gear Lube Apply
35895	35895-21010	Tube, Front Clutch Apply
9010505023	90105-05023	New Genuine Part
9010506017	90105-06017	Bolt(for Cylinder Head Cover)
9010506017	91551-A0625	Bolt(For Cylinder Head Cover)
9010506028	90105-06028	New Genuine Part
9010506053	90105-06053	Bolt(For Sensor Rotor Adapter)
9010506070	90105-06070	New Genuine Part
9010506071	90105-06071	New Genuine Part
9010506079	90105-06079	Bolt
9151180614	91511-80614	BOLT FLANGE
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)

OEM	Part name	Category
35195-21010	Clamp, Transaxle Apply Tube, No.1	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35196-21010	Clamp, Transaxle Apply Tube, No.2	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35210-21010	Solenoid Assy, Clutch Control, No.1	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35220-21010	Solenoid Assy, Clutch Control, No.2	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35230-21010	Solenoid Assy, Transmission 3Way, No.2	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35240-21010	Solenoid Assy, Automatic Transmission 3Way	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35251-30020	Body, Check Ball	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35290-21010	Solenoid Assy, Line Pressure Control	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35330-06010	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35330-21011	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35330-21020	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35406-21010	Piston, C-3 Accumulator	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35409-21010	Spring Sub-Assy, Manual Detent	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35410-48010	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35410-48011	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35418-21010	Valve, Manual	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35418-21011	Valve, Manual	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35424-21010	Piston, C-1 Accumulator	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35427-21010	Piston, B-3 Accumulator	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35599-21010	Cover, Manual Detent Spring	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35666-21010	Tube, Brake Apply	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35882-21010	Tube, Differential Gear Lube Apply	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
35895-21010	Tube, Front Clutch Apply	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90105-05023	New Genuine Part	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90105-06017	Bolt(for Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90105-06028	New Genuine Part	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90105-06053	Bolt(For Sensor Rotor Adapter)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90105-06070	New Genuine Part	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90105-06071	New Genuine Part	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90105-06079	Bolt	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90301-27008	Ring, O (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90301-28008	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90301-30007	Ring, O (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90301-32010	O-ring (Gasket, Oil Strainer)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90501-03005	Spring, Compression (For Check Ball Body)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90501-20151	Spring, Compression (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90501-22041	Spring, Compression (For B-3 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90501-25053	Spring, Compression (For B-3 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
90905-01035	Spring, Compression (For C-3 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
91511-80614	BOLT FLANGE	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
91551-A0625	Bolt(For Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
91611-60616	Bolt(For Transaxle Case Receiver)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))
91611-B0616	Bolt(For Transaxle Case Receiver)	Valve Body & Oil Strainer (Atm) ([11.2000 - ] U140E,U140F,U241E (0011- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 205
Collected: 2026-07-30
