Search › Model › MCU10

MCU10

Toyota HARRIER · 1997 · 6,103 parts · 205 categories
MCU10 ×

← Back to categories

6,103 items

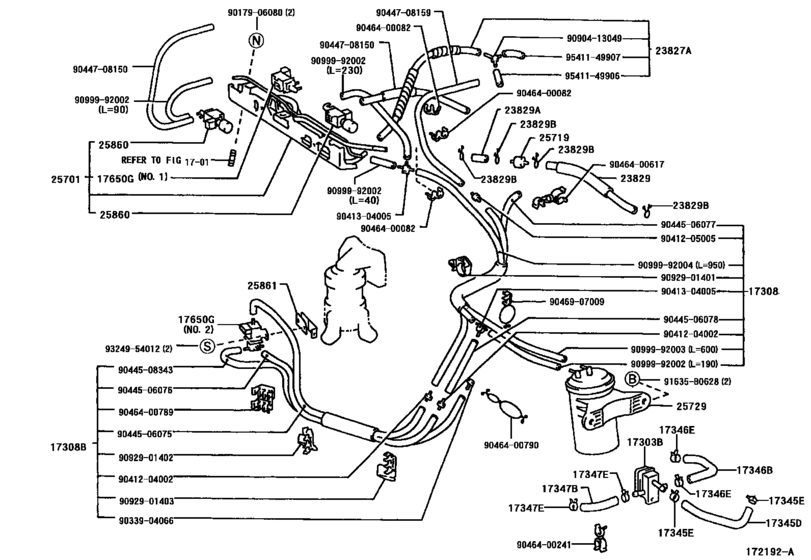

Vacuum Piping ([08.1999 - 11.2000] (9908-0011)1MZFE) 60
#OEMPart name
17303 17303-20010 Pipe Sub-Assy, Air, No.1
17308 17308-20060 Hose Sub-Assy, Vacuum(For Idle-Up)
17308 17308-20130 Hose Sub-Assy, Vacuum(For Idle-Up)
17308 17308-20080 Hose Sub-Assy, Vacuum
17345 17345-20030 Hose, Air, No.5
17345 90467-16003 Clip Or Clamp(For Ventilation Hose)
17345 96133-41500 Clamp Or Clip(For Air Hose, No.5)
17346 17346-20010 Hose, Air, No.6
17346 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
17346 96132-51300 Clip(For Ventilation Hose No.2)
17346 96133-41300 Clip(For Air Hose No.6)
17347 17347-20010 Hose, Air, No.7
17650 90910-12150 Valve, Duty Vacuum Switching
17650 90910-12196 Valve, Duty Vacuum Switching
17650 90910-12192 Valve, Duty Vacuum Switching
17650 90910-12241 Valve, Duty Vacuum Switching
23827 23827-20030 Hose, Fuel Vapor Feed, No.2
23829 23829-20040 Hose, Fuel Vapor Feed, No.3
23829 23829-20050 Hose, Fuel Vapor Feed, No.3
23829 23829-20100 Hose, Fuel Vapor Feed
23829 96132-30600 Clip(For Actuator Hose)
23829 96132-51100 Clip (For Hose)
25701 25701-20120 Valve Set, Emission Control
25701 25701-20140 Valve Set, Emission Control
25701 25701-20160 Valve Set, Emission Control
25719 25719-20020 Tank, Vacuum Surge
25729 25729-20010 Tank, Vacuum Surge W/bracket
25729 25729-20030 Tank, Vacuum Surge W/bracket
25860 25860-62010 Valve Assy, Vacuum Switching
25861 25861-20060 Bracket, Vacuum Switching Valve
91635 91635-B0628 New Genuine Part
91635 91631-B0625 BOLT W-WASHER
9017906080 90179-06080 NUT
9033904066 90339-04066 New Genuine Part
9041204002 90412-04002 New Genuine Part
9041205005 90412-05005 New Genuine Part
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9044506075 90445-06075 New Genuine Part
9044506076 90445-06076 New Genuine Part
9044506077 90445-06077 New Genuine Part
9044506078 90445-06078 New Genuine Part
9044508343 90445-08343 Hose, Vacuum, No.1 (For Front Drive Shift)
9044508343 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
9044708150 90447-08150 New Genuine Part
9044708159 90447-08159 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400241 90464-00241 New Genuine Part
9046400617 90464-00617 Clamp(For Resistive Cord)
9046400789 90464-00789 New Genuine Part
9046400790 90464-00790 New Genuine Part
9046907009 90469-07009 New Genuine Part
9090413049 90904-13049 New Genuine Part
9092901401 90929-01401 Clamp Or Clip(For Water By-Pass Hose No.5)
9092901402 90929-01402 New Genuine Part
9092901403 90929-01403 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9324954012 93249-54012 New Genuine Part
9541149906 95411-49906 Hose, Vacuum, No.1 (For Front Drive Shift)
9541149907 95411-49907 New Genuine Part
