Search › Model › MCU10

MCU10

Toyota HARRIER · 1997 · 6,103 parts · 205 categories

6,103 items

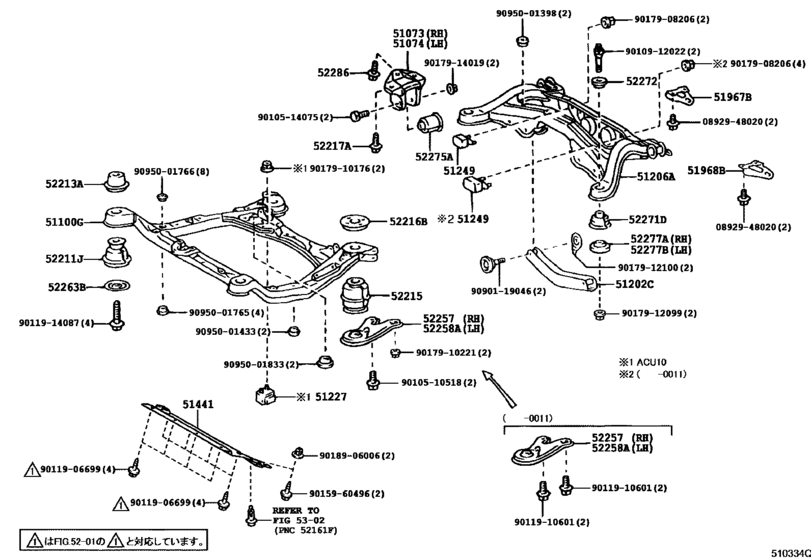

Suspension Crossmember & Under Cover ([12.1997 - ] (9712- )) 58

#	OEM	Part name
51073	51073-48010	Bracket Sub-Assy, Rear Body Mounting, No.2 Rh
51074	51074-48010	Bracket Sub-Assy, Rear Body Mounting, No.2 Lh
51100	51100-48010	Frame Assy, Front
51202	51202-48010	Crossmember Sub-Assy, Front Suspension, Lower
51206	51206-48010	Member Sub-Assy, Rear Suspension
51206	48409-48020	Cam Sub-Assy, Rear Suspension Toe Adjust
51206	48198-48010	Cam, Camber Adjust, No.2
51206	51206-48022	Member Sub-Assy, Rear Suspension
51206	48730-48031	Arm Assy, Rear Suspension, No.2 Rh
51206	48730-48041	Arm Assy, Rear Suspension, No.2 Rh
51206	48730-48051	Arm Assy, Rear Suspension, No.2 Rh
51206	48730-48061	Arm Assy, Rear Suspension, No.2 Rh
51206	48740-48021	Arm Assy, Rear Suspension, No.2 Lh
51206	90179-14069	Nut
51206	51206-48020	Member Sub-Assy, Rear Suspension
51206	51206-48021	Member Sub-Assy, Rear Suspension
51441	51441-48010	Cover, Engine Under, No.1
51967	51967-48010	Hook, Transport, Rear Rh
51968	51968-48010	Hook, Transport, Rear Lh
52211	52211-33050	Cushion, Front Suspension Member Body Mounting, Front
52213	52213-33050	Stopper, Front Suspension Member Body Mounting, Front
52215	52215-33010	Cushion, Front Suspension Member Body Mounting, Rear
52216	52216-33020	Stopper, Front Suspension Member Body Mounting, Rear
52217	52217-48010	Bolt, Body Mounting
52257	51023-48010	Brace, Front Suspension Member, Rear Rh
52257	51023-48011	Brace, Front Suspension Member, Rear Rh
52257	52257-48010	Brace, Front Suspension Member, Rear Rh
52258	51024-48010	Brace, Front Suspension Member, Rear Lh
52258	51024-48011	Brace, Front Suspension Member, Rear Lh
52258	52258-48010	Brace, Front Suspension Member, Rear Lh
52263	52263-48010	Retainer, Front Suspension Member Cushion, No.1
52271	52271-32010	Cushion, Rear Suspension Member Body Mounting, Front
52272	52272-32010	Cushion, Rear Suspension Member
52275	52275-48010	Cushion, Rear Suspension Member Body Mounting, Rear
52277	52277-32010	Retainer, Rear Suspension Member Lower Stopper, Rh
52286	52286-48010	Bolt, Differential Support Member Mounting, No.2
892948020	08929-48020	New Genuine Part
9010510518	90105-10518	BOLT FLANGE
9010514075	90105-14075	New Genuine Part
9010912022	90109-12022	BOLT
9011906699	90119-06699	BOLT WWASHER
9011910601	90119-10601	BOLT W-WASHER
9011914087	90119-14087	New Genuine Part
9015960496	90159-60496	SCREW WWASHER
9017908206	90179-08206	Nut(For Front Suspension Support)
9017910176	90179-10176	NUT
9017910221	90179-10221	New Genuine Part
9017912099	90179-12099	New Genuine Part
9017912100	90179-12100	Nut(For Rear Suspension Arm)
9017914019	90179-14019	Nut
9018906006	90189-06006	Grommet
9090119046	90901-19046	Bolt(For Rear Suspension Arm)
9090119046	90119-12438	Bolt(For Rear Suspension Arm)
9095001398	90950-01398	CUSHION
9095001433	90950-01433	New Genuine Part
9095001765	90950-01765	New Genuine Part
9095001766	90950-01766	PLUG HOLE
9095001833	90950-01833	PLUG HOLE

OEM	Part name	Category
08929-48020	New Genuine Part	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
48198-48010	Cam, Camber Adjust, No.2	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
48409-48020	Cam Sub-Assy, Rear Suspension Toe Adjust	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
48730-48031	Arm Assy, Rear Suspension, No.2 Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
48730-48041	Arm Assy, Rear Suspension, No.2 Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
48730-48051	Arm Assy, Rear Suspension, No.2 Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
48730-48061	Arm Assy, Rear Suspension, No.2 Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
48740-48021	Arm Assy, Rear Suspension, No.2 Lh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51023-48010	Brace, Front Suspension Member, Rear Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51023-48011	Brace, Front Suspension Member, Rear Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51024-48010	Brace, Front Suspension Member, Rear Lh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51024-48011	Brace, Front Suspension Member, Rear Lh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51073-48010	Bracket Sub-Assy, Rear Body Mounting, No.2 Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51074-48010	Bracket Sub-Assy, Rear Body Mounting, No.2 Lh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51100-48010	Frame Assy, Front	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51202-48010	Crossmember Sub-Assy, Front Suspension, Lower	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51206-48010	Member Sub-Assy, Rear Suspension	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51206-48020	Member Sub-Assy, Rear Suspension	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51206-48021	Member Sub-Assy, Rear Suspension	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51206-48022	Member Sub-Assy, Rear Suspension	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51441-48010	Cover, Engine Under, No.1	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51967-48010	Hook, Transport, Rear Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
51968-48010	Hook, Transport, Rear Lh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52211-33050	Cushion, Front Suspension Member Body Mounting, Front	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52213-33050	Stopper, Front Suspension Member Body Mounting, Front	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52215-33010	Cushion, Front Suspension Member Body Mounting, Rear	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52216-33020	Stopper, Front Suspension Member Body Mounting, Rear	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52217-48010	Bolt, Body Mounting	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52257-48010	Brace, Front Suspension Member, Rear Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52258-48010	Brace, Front Suspension Member, Rear Lh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52263-48010	Retainer, Front Suspension Member Cushion, No.1	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52271-32010	Cushion, Rear Suspension Member Body Mounting, Front	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52272-32010	Cushion, Rear Suspension Member	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52275-48010	Cushion, Rear Suspension Member Body Mounting, Rear	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52277-32010	Retainer, Rear Suspension Member Lower Stopper, Rh	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
52286-48010	Bolt, Differential Support Member Mounting, No.2	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90105-10518	BOLT FLANGE	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90105-14075	New Genuine Part	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90109-12022	BOLT	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90119-06699	BOLT WWASHER	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90119-10601	BOLT W-WASHER	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90119-12438	Bolt(For Rear Suspension Arm)	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90119-14087	New Genuine Part	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90159-60496	SCREW WWASHER	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90179-08206	Nut(For Front Suspension Support)	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90179-10176	NUT	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90179-10221	New Genuine Part	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90179-12099	New Genuine Part	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90179-12100	Nut(For Rear Suspension Arm)	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90179-14019	Nut	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90179-14069	Nut	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90189-06006	Grommet	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90901-19046	Bolt(For Rear Suspension Arm)	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90950-01398	CUSHION	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90950-01433	New Genuine Part	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90950-01765	New Genuine Part	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90950-01766	PLUG HOLE	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
90950-01833	PLUG HOLE	Suspension Crossmember & Under Cover ([12.1997 - ] (9712- ))
