Search › Model › MCR40

MCR40

Toyota ESTIMA-EMINA-LUCIDA · 1999 · 6,610 parts · 259 categories

6,610 items

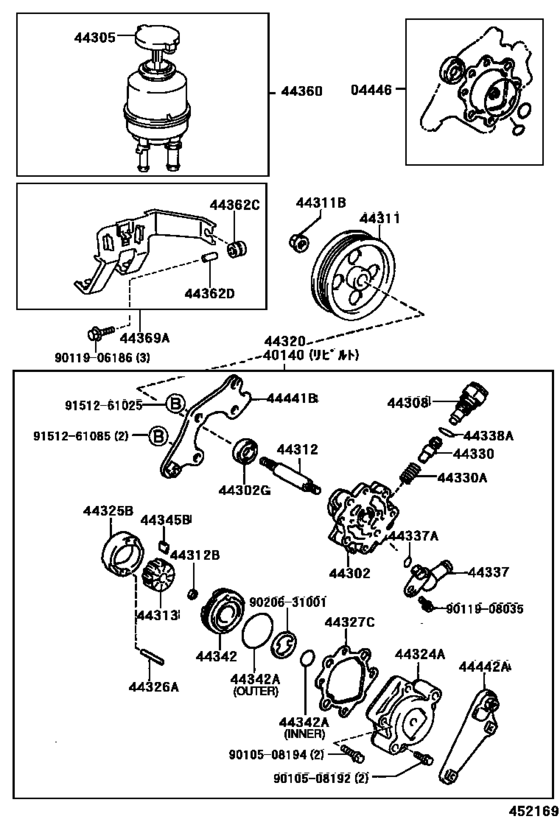

Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40) 61

#	OEM	Part name
4446	04446-34010	Gasket Kit, Power Steering Pump
4446	04446-53030	Gasket Kit, Power Steering Pump
40140	40140-28160	Pump Assy,vane Rebuilt
40140	44320-58010	Pump Assy, Vane
44302	44302-33020	Housing Sub-Assy, Vane Pump, Front
44302	90311-18015	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-28030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-28061	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-28030	Union Sub-Assy, Pressure Port
44311	44311-28110	Pulley, Vane Pump
44311	90178-12003	Nut(For Vane Pump Pulley)
44312	44312-32020	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-26060	Rotor, Vane Pump
44313	44313-26070	Rotor, Vane Pump
44313	44313-26080	Rotor, Vane Pump
44313	44313-26090	Rotor, Vane Pump
44313	44313-26100	Rotor, Vane Pump
44320	44320-28160	Pump Assy, Vane
44324	44324-33030	Housing, Pump, Rear
44325	44325-12270	Ring, Vane Pump Cam
44325	44325-12280	Ring, Vane Pump Cam
44325	44325-12290	Ring, Vane Pump Cam
44325	44325-12300	Ring, Vane Pump Cam
44325	44325-12310	Ring, Vane Pump Cam
44326	90250-04071	Pin, Straight(For Vane Pump Cam Ring)
44327	44327-26010	Gasket, Vane Pump Housing
44330	44330-26071	Valve Assy, Flow Control
44330	44330-26081	Valve Assy, Flow Control
44330	44330-26091	Valve Assy, Flow Control
44330	44330-26101	Valve Assy, Flow Control
44330	44330-26111	Valve Assy, Flow Control
44330	44330-26121	Valve Assy, Flow Control
44330	90501-13034	Spring, Compression(For Flow Control Valve)
44337	44337-28110	Union, Power Steering Suction Port
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	90301-19013	Seal, Oil, No.1(For Vane Pump Housing)
44338	90301-19018	Ring, O(For Pressure Port Union)
44342	44342-26020	Plate, Vane Pump Side, Rear
44342	90301-18007	Ring, O(For Pump Housing Rear)
44342	90301-47001	Ring, O(For Vane Pump Side Plate Rear)
44345	44345-26010	Plate, Vane Pump
44345	44345-26020	Plate, Vane Pump
44345	44345-26030	Plate, Vane Pump
44345	44345-26040	Plate, Vane Pump
44345	44345-26050	Plate, Vane Pump
44360	44360-28150	Reservoir Assy, Vane Pump Oil
44362	90540-09004	Cushion(For Vane Pump Oil Reservoir)
44362	90560-06014	Spacer(For Vane Pump Oil Reservoir)
44369	44390-28030	Bracket, Oil Reservoir, No.1
44441	44441-28020	Bracket, Pump, Front
44442	44442-33021	Bracket, Vane Pump, Rear
9010508192	90105-08192	New Genuine Part
9010508194	90105-08194	New Genuine Part
9011906186	90119-06186	BOLT
9011906186	90119-06420	BOLT WWASHER
9011908035	90119-08035	New Genuine Part
9020631001	90206-31001	WASHER WAVE
9151261025	91512-61025	BOLT WASHER BASED H
9151261025	91512-G1025	BOLTFLANGE
9151261085	91512-61085	New Genuine Part

OEM	Part name	Category
04446-34010	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
04446-53030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
40140-28160	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44302-33020	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44305-28030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44305-28061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44308-28030	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44311-28110	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44312-32020	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44313-26060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44313-26070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44313-26080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44313-26090	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44313-26100	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44320-28160	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44320-58010	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44324-33030	Housing, Pump, Rear	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44325-12270	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44325-12280	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44325-12290	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44325-12300	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44325-12310	Ring, Vane Pump Cam	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44327-26010	Gasket, Vane Pump Housing	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44330-26071	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44330-26081	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44330-26091	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44330-26101	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44330-26111	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44330-26121	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44337-28110	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44342-26020	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44345-26010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44345-26020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44345-26030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44345-26040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44345-26050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44360-28150	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44390-28030	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44441-28020	Bracket, Pump, Front	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
44442-33021	Bracket, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90105-08192	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90105-08194	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90119-06186	BOLT	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90119-06420	BOLT WWASHER	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90206-31001	WASHER WAVE	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90250-04071	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90301-18007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90301-19013	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90301-47001	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90311-18015	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90501-13034	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90540-09004	Cushion(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
90560-06014	Spacer(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
91512-61025	BOLT WASHER BASED H	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
91512-61085	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
91512-G1025	BOLTFLANGE	Vane Pump & Reservoir (Power Steering) ([12.1999 - 04.2003] (9912-0304)MCR30,40)
