Search › Model › MCR40

MCR40

Toyota ESTIMA-EMINA-LUCIDA · 1999 · 6,610 parts · 259 categories

6,610 items

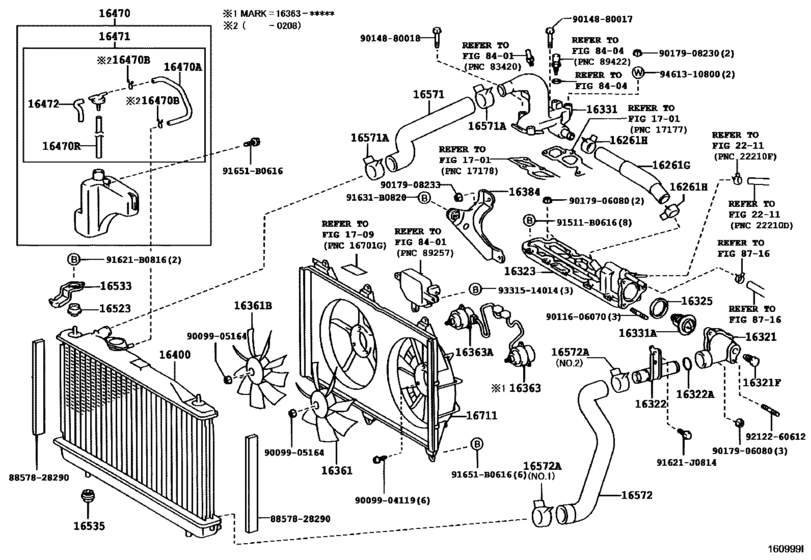

Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE) 60

#	OEM	Part name
16261	16261-20010	Hose, Water By-Pass, No.1
16261	90467-28007	Clip Or Clamp(For Ventilation Hose)
16261	90467-28008	Clip(For Water By-Pass Hose No.1)
16321	16321-20030	Inlet, Water
16321	90341-16094	Plug, W/head Taper Screw, No.1
16322	16322-20031	Pipe, Water Inlet
16322	96761-35031	Ring, O(For Water Inlet Pipe)
16323	16323-20020	Housing, Water Inlet
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16331	16331-20050	Outlet, Water
16331	90916-03084	Thermostat
16331	90916-03129	Thermostat
16361	16361-20170	Fan
16361	16361-20130	Fan, No.2
16361	16361-20060	Fan
16363	16363-20300	Motor, Cooling Fan
16363	16363-20290	Motor, Cooling Fan, No.2
16363	16363-50060	Motor, Cooling Fan
16363	16363-20160	Motor, Cooling Fan, No.2
16384	16384-20020	Bracket, Fan Belt Adjusting Bar
16400	16400-20170	Radiator Assy
16400	16417-15210	Plug, Radiator Drain Cock
16400	16418-15520	Packing(For Radiator Drain Cock)
16401	16401-7A470	Cap Sub-Assy, Radiator
16470	16470-20050	Tank Assy, Radiator Reserve
16470	16472-20050	Hose Or Pipe(For Radiator Reserve Tank)
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16405-20030	Cap Sub-Assy, Reserve Tank
16472	85338-74140	Hose, Breather
16523	16523-74010	Cushion, Sub-Radiator Support
16533	16533-20021	Support, Radiator, Upper
16535	16535-20010	Support, Radiator, Lower
16571	16571-20040	Hose, Radiator, Inlet
16571	90467-37005	Clip(For Water Inlet Hose)
16571	90467-37008	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-20050	Hose, Radiator, Outlet
16572	90466-41007	Clamp Or Clip, Hose(For Radiator Inlet)
16572	90466-41001	Clamp Or Clip, Hose(For Radiator Inlet)
16572	90466-41008	Clamp, Hose(For Radiator Hose)
16572	90467-41002	Clamp Or Clip, Hose(For Radiator Inlet)
16711	16711-20111	Shroud, Fan
91511	91511-B0616	BOLT, FLANGE
91511	90080-10164	BOLT, FLANGE
91621	91621-B0816	BOLT WWASHER
91621	91621-J0814	Bolt (For Transmission Control Cable Bracket)
91631	91631-B0820	BOLT WWASHER
91651	91651-B0616	BOLT WWASHER
8857828290	88578-28290	Paking, Cooler Air Duct
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9011606070	90116-06070	BOLT
9014880017	90148-80017	New Genuine Part
9014880018	90148-80018	New Genuine Part
9017906080	90179-06080	NUT
9017908230	90179-08230	New Genuine Part
9017908233	90179-08233	NUT
9212260612	92122-60612	Bolt, Stud(For Engine Rear Oil Seal Retainer)
9331514014	93315-14014	SCREW
9461310800	94613-10800	Spacer (For Control Select Lever Support)

OEM	Part name	Category
16261-20010	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16321-20030	Inlet, Water	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16322-20031	Pipe, Water Inlet	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16323-20020	Housing, Water Inlet	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16331-20050	Outlet, Water	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16361-20060	Fan	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16361-20130	Fan, No.2	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16361-20170	Fan	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16363-20160	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16363-20290	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16363-20300	Motor, Cooling Fan	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16363-50060	Motor, Cooling Fan	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16384-20020	Bracket, Fan Belt Adjusting Bar	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16400-20170	Radiator Assy	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16401-7A470	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16405-20030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16417-15210	Plug, Radiator Drain Cock	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16470-20050	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16472-20050	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16523-74010	Cushion, Sub-Radiator Support	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16533-20021	Support, Radiator, Upper	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16535-20010	Support, Radiator, Lower	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16571-20040	Hose, Radiator, Inlet	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16572-20050	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
16711-20111	Shroud, Fan	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
85338-74140	Hose, Breather	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
88578-28290	Paking, Cooler Air Duct	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90080-10164	BOLT, FLANGE	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90099-05164	Nut	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90116-06070	BOLT	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90148-80017	New Genuine Part	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90148-80018	New Genuine Part	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90179-06080	NUT	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90179-08230	New Genuine Part	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90179-08233	NUT	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90341-16094	Plug, W/head Taper Screw, No.1	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90466-41001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90466-41007	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90466-41008	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90467-28007	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90467-28008	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90467-37008	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90467-41002	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90916-03084	Thermostat	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
90916-03129	Thermostat	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
91511-B0616	BOLT, FLANGE	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
91621-B0816	BOLT WWASHER	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
91631-B0820	BOLT WWASHER	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
92122-60612	Bolt, Stud(For Engine Rear Oil Seal Retainer)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
93315-14014	SCREW	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
94613-10800	Spacer (For Control Select Lever Support)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
96761-35031	Ring, O(For Water Inlet Pipe)	Radiator & Water Outlet ([12.1999 - ] (9912- )1MZFE)
