Search › Model › MCL25

MCL25

Toyota SIENNA · 2003 · 6,250 parts · 238 categories

← Back to categories

6,250 items

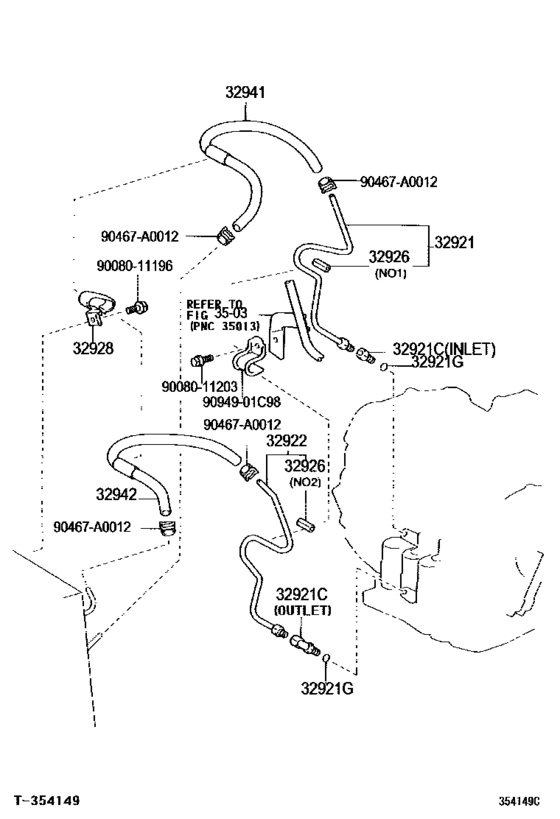

Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612)) 17

#	OEM	Part name
32921	32921-08020	Tube, Oil Cooler Inlet, No.1
32921	32921-08030	Tube, Oil Cooler Inlet, No.1
32921	90404-16031	Union(For Transaxle Housing)
32921	90407-16010	Union(For Oil Cooler Tube)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90301-A0016	Ring, O(For Oil Cooler Tube Union)
32922	32922-08010	Tube, Oil Cooler Outlet, No.1
32926	32926-04010	Cushion, Oil Cooler Tube(Atm)
32926	32926-08010	Cushion, Oil Cooler Tube(Atm)
32928	32928-45010	Clamp, Flexible Hose, No.1
32941	32941-08010	Hose, Oil Cooler Inlet, No.1
32941	32943-08010	Hose, Oil Cooler Inlet, No.1
32942	32942-08010	Hose, Oil Cooler Outlet, No.1
90467	90467-A0012	Clip(For Water Inlet Hose)
9094901	90949-01C98	Clamp, Oil Cooler Tube, No.2
9008011196	90080-11196	New Genuine Part
9008011203	90080-11203	New Genuine Part

OEM	Part name	Category
32921-08020	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
32921-08030	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
32922-08010	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
32926-04010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
32926-08010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
32928-45010	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
32941-08010	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
32942-08010	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
32943-08010	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
90080-11196	New Genuine Part	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
90080-11203	New Genuine Part	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
90301-A0016	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
90404-16031	Union(For Transaxle Housing)	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
90407-16010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
90467-A0012	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
90949-01C98	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([01.2003 - 12.2006] U151E,U151F (0301-0612))
