MCL23

Toyota SIENNA · 2003 · 3,818 parts · 193 categories

3,818 items

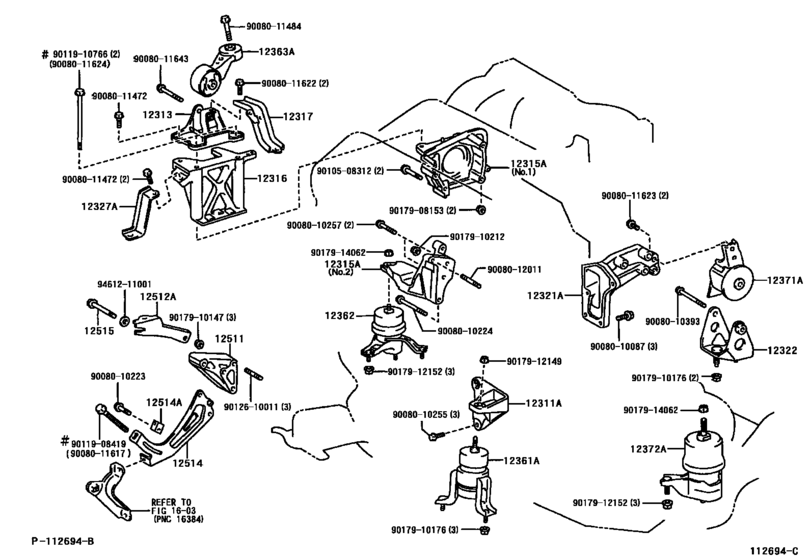

Mounting ([01.2003 - ] (0301- )3MZFE) 49

#	OEM	Part name
12311	12311-0A070	Bracket, Engine Mounting, Front(For Transverse Engine)
12311	12311-20070	Bracket, Engine Mounting, Front(For Transverse Engine)
12313	12313-0A090	Bracket, Engine Mounting Control(For Transverse Engine)
12315	12315-0A010	Bracket, Engine Mounting, Rh(For Transverse Engine)
12315	12315-0A030	Bracket, Engine Mounting, Rh(For Transverse Engine)
12315	12315-20040	Bracket, Engine Mounting, Rh(For Transverse Engine)
12316	12316-0A040	Bracket, Engine Mounting, No.2 Rh
12317	12317-0A020	Stay, Engine Mounting, Rh
12327	12327-0A020	Stay, Engine Mounting, No.2 Rh
12361	12361-0A090	Insulator, Engine Mounting, Front(For Transverse Engine)
12361	12361-0A130	Insulator, Engine Mounting, Front(For Transverse Engine)
12362	12362-0A020	Insulator, Engine Mounting, Rh(For Transverse Engine)
12362	12362-0A030	Insulator, Engine Mounting, Rh(For Transverse Engine)
12363	12363-0A081	Rod, Engine Moving Control
12372	12372-0A040	Insulator, Engine Mounting, Lh(For Transverse Engine)
12372	12372-0A050	Insulator, Engine Mounting, Lh(For Transverse Engine)
12372	12372-20080	Insulator, Engine Mounting, Lh(For Transverse Engine)
12511	12511-20020	Bracket, Alternator, No.1
12512	12512-20020	Bracket, Alternator, No.2
12514	12514-0A010	Bar, Alternator Belt Adjusting
12514	16385-20010	Slider, Fan Belt Adjusting
12515	12515-0A010	Bolt, Alternator Through
12515	12515-20010	Bolt, Alternator Through
9008010087	90080-10087	Bolt(For Drive Shaft Bearring Bracket Setting No.2)
9008010223	90080-10223	New Genuine Part
9008010224	90080-10224	New Genuine Part
9008010255	90080-10255	New Genuine Part
9008010257	90080-10257	New Genuine Part
9008010393	90080-10393	New Genuine Part
9008011472	90080-11472	New Genuine Part
9008011484	90080-11484	New Genuine Part
9008011617	90080-11617	New Genuine Part
9008011622	90080-11622	New Genuine Part
9008011623	90080-11623	New Genuine Part
9008011624	90080-11624	New Genuine Part
9008011643	90080-11643	New Genuine Part
9008012011	90080-12011	New Genuine Part
9010508312	90105-08312	BOLT WASHER BASED
9011908419	90119-08419	BOLT
9011910766	90119-10766	BOLT WWASHER
9012610011	90126-10011	New Genuine Part
9017908153	90179-08153	NUT
9017910147	90179-10147	New Genuine Part
9017910176	90179-10176	NUT
9017910212	90179-10212	Nut(For Front Suspension Support)
9017912149	90179-12149	New Genuine Part
9017912152	90179-12152	NUT
9017914062	90179-14062	Nut (For Steering Knuckle Rh)
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
12311-0A070	Bracket, Engine Mounting, Front(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12311-20070	Bracket, Engine Mounting, Front(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12313-0A090	Bracket, Engine Mounting Control(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12315-0A010	Bracket, Engine Mounting, Rh(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12315-0A030	Bracket, Engine Mounting, Rh(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12315-20040	Bracket, Engine Mounting, Rh(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12316-0A040	Bracket, Engine Mounting, No.2 Rh	Mounting ([01.2003 - ] (0301- )3MZFE)
12317-0A020	Stay, Engine Mounting, Rh	Mounting ([01.2003 - ] (0301- )3MZFE)
12327-0A020	Stay, Engine Mounting, No.2 Rh	Mounting ([01.2003 - ] (0301- )3MZFE)
12361-0A090	Insulator, Engine Mounting, Front(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12361-0A130	Insulator, Engine Mounting, Front(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12362-0A020	Insulator, Engine Mounting, Rh(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12362-0A030	Insulator, Engine Mounting, Rh(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12363-0A081	Rod, Engine Moving Control	Mounting ([01.2003 - ] (0301- )3MZFE)
12372-0A040	Insulator, Engine Mounting, Lh(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12372-0A050	Insulator, Engine Mounting, Lh(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12372-20080	Insulator, Engine Mounting, Lh(For Transverse Engine)	Mounting ([01.2003 - ] (0301- )3MZFE)
12511-20020	Bracket, Alternator, No.1	Mounting ([01.2003 - ] (0301- )3MZFE)
12512-20020	Bracket, Alternator, No.2	Mounting ([01.2003 - ] (0301- )3MZFE)
12514-0A010	Bar, Alternator Belt Adjusting	Mounting ([01.2003 - ] (0301- )3MZFE)
12515-0A010	Bolt, Alternator Through	Mounting ([01.2003 - ] (0301- )3MZFE)
12515-20010	Bolt, Alternator Through	Mounting ([01.2003 - ] (0301- )3MZFE)
16385-20010	Slider, Fan Belt Adjusting	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-10087	Bolt(For Drive Shaft Bearring Bracket Setting No.2)	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-10223	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-10224	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-10255	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-10257	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-10393	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-11472	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-11484	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-11617	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-11622	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-11623	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-11624	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-11643	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90080-12011	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90105-08312	BOLT WASHER BASED	Mounting ([01.2003 - ] (0301- )3MZFE)
90119-08419	BOLT	Mounting ([01.2003 - ] (0301- )3MZFE)
90119-10766	BOLT WWASHER	Mounting ([01.2003 - ] (0301- )3MZFE)
90126-10011	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90179-08153	NUT	Mounting ([01.2003 - ] (0301- )3MZFE)
90179-10147	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90179-10176	NUT	Mounting ([01.2003 - ] (0301- )3MZFE)
90179-10212	Nut(For Front Suspension Support)	Mounting ([01.2003 - ] (0301- )3MZFE)
90179-12149	New Genuine Part	Mounting ([01.2003 - ] (0301- )3MZFE)
90179-12152	NUT	Mounting ([01.2003 - ] (0301- )3MZFE)
90179-14062	Nut (For Steering Knuckle Rh)	Mounting ([01.2003 - ] (0301- )3MZFE)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Mounting ([01.2003 - ] (0301- )3MZFE)
