MCL23

Toyota SIENNA · 2003 · 3,818 parts · 193 categories

3,818 items

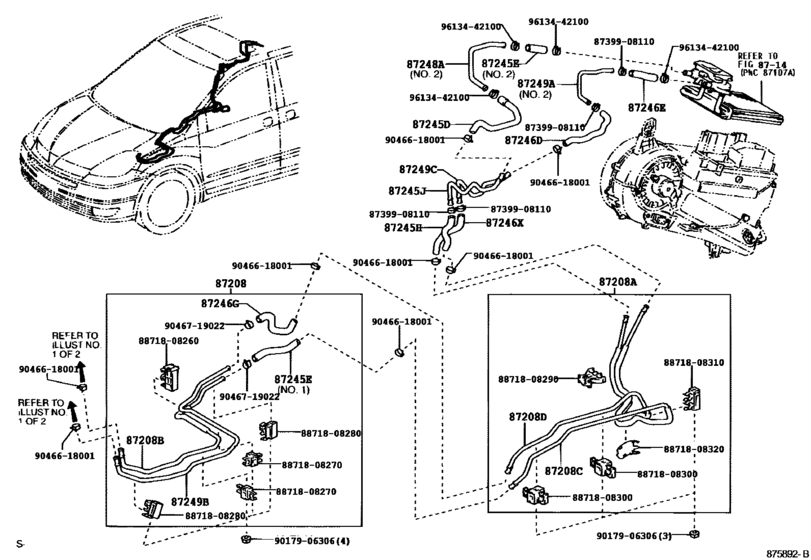

Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612)) 31

#	OEM	Part name
87208	87208-08030	Pipe Sub-Assy, Heater Water
87208	87208-08040	Pipe Sub-Assy, Heater Water, A
87208	87208-08050	Pipe Sub-Assy, Heater Water, B
87208	87208-08060	Pipe Sub-Assy, Heater Water, C
87208	87208-08070	Pipe Sub-Assy, Heater Water, D
87245	87245-08170	Hose, Heater Water, Inlet D
87245	87245-08120	Hose, Heater Water, Inlet E
87245	99556-30100	Hose, Water Inlet
87245	87245-08130	Hose, Heater Water, Inlet H
87245	87248-08070	Hose, Heater Water, Inlet J
87246	87245-08150	Hose, Heater Water, Outlet D
87246	87245-08160	Hose, Heater Water, Outlet E
87246	87245-08110	Hose, Heater Water, Outlet G
87246	87245-08140	Hose, Heater Water
87248	87248-08100	Pipe, Heater Water Inlet, A
87248	87248-60460	Pipe Sub-Assy, Heater Water
87249	87248-08090	Pipe, Heater Water Outlet, A
87249	87248-08060	Pipe, Heater Water Outlet, B
87249	87248-08080	Pipe, Heater Water Outlet, C
8739908110	87399-08110	Band Assy (for Combustion Heater)
8871808260	88718-08260	Pipe, Cooler Refrigerant Suction, No.2
8871808270	88718-08270	Pipe, Cooler Refrigerant Suction, No.2
8871808280	88718-08280	Pipe, Cooler Refrigerant Suction, No.2
8871808290	88718-08290	Pipe, Cooler Refrigerant Suction, No.2
8871808300	88718-08300	Pipe, Cooler Refrigerant Suction, No.2
8871808310	88718-08310	Pipe, Cooler Refrigerant Suction, No.2
8871808320	88718-08320	Pipe, Cooler Refrigerant Suction, No.2
9017906306	90179-06306	NUT
9046618001	90466-18001	CLIP HOSE
9046719022	90467-19022	Clip(For Ventilation Hose No.2)
9613442100	96134-42100	Clip(For Water By-Pass Hose Assy)

OEM	Part name	Category
87208-08030	Pipe Sub-Assy, Heater Water	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87208-08040	Pipe Sub-Assy, Heater Water, A	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87208-08050	Pipe Sub-Assy, Heater Water, B	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87208-08060	Pipe Sub-Assy, Heater Water, C	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87208-08070	Pipe Sub-Assy, Heater Water, D	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87245-08110	Hose, Heater Water, Outlet G	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87245-08120	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87245-08130	Hose, Heater Water, Inlet H	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87245-08140	Hose, Heater Water	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87245-08150	Hose, Heater Water, Outlet D	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87245-08160	Hose, Heater Water, Outlet E	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87245-08170	Hose, Heater Water, Inlet D	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87248-08060	Pipe, Heater Water Outlet, B	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87248-08070	Hose, Heater Water, Inlet J	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87248-08080	Pipe, Heater Water Outlet, C	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87248-08090	Pipe, Heater Water Outlet, A	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87248-08100	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87248-60460	Pipe Sub-Assy, Heater Water	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
87399-08110	Band Assy (for Combustion Heater)	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
88718-08260	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
88718-08270	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
88718-08280	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
88718-08290	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
88718-08300	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
88718-08310	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
88718-08320	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
90179-06306	NUT	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
90466-18001	CLIP HOSE	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
90467-19022	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
96134-42100	Clip(For Water By-Pass Hose Assy)	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
99556-30100	Hose, Water Inlet	Heating & Air Conditioning - Water Piping ([01.2003 - 12.2006] REAR (0301-0612))
