Search › Model › MCL20

MCL20

Toyota SIENNA · 2003 · 5,791 parts · 230 categories

5,791 items

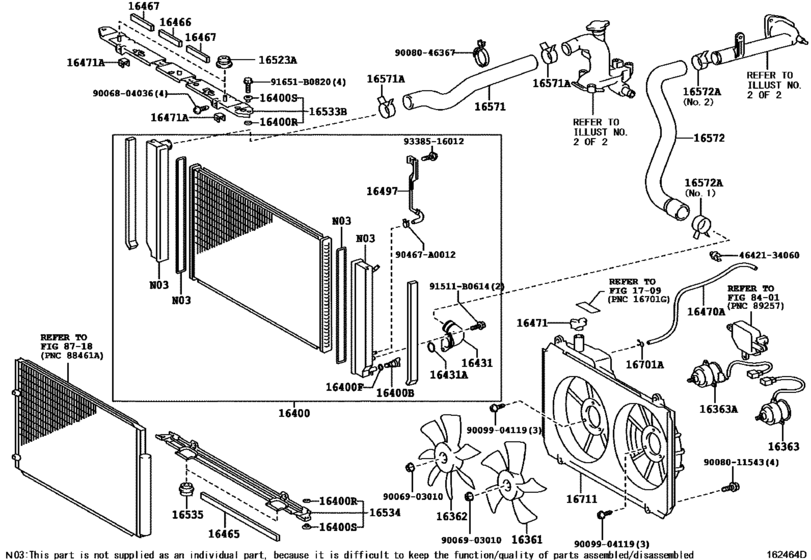

Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE) 62

#	OEM	Part name
16361	16361-0A140	Fan
16361	16361-0A200	Fan
16362	16361-0A150	Fan, No.2
16362	16361-0A230	Fan, No.2
16363	16363-0A120	Motor, Cooling Fan
16363	16363-0A140	Motor, Cooling Fan
16363	16363-0A150	Motor, Cooling Fan
16363	16363-0A130	Motor, Cooling Fan, No.2
16363	16363-0A210	Motor, Cooling Fan, No.2
16400	16041-0A380	Radiator Assy
16400	16041-0A390	Radiator Assy
16400	16041-0A402	Radiator Assy
16400	16041-0A391	Radiator Assy
16400	16041-0A400	Radiator Assy
16400	16041-0A401	Radiator Assy
16400	16041-0A403	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	90910-09054	Plug, Radiator Drain Cock
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16400	96711-19007	Packing(For Radiator Drain Cock)
16400	16444-0F020	Bushing(For Radiator)
16400	16444-75180	Bushing(For Radiator)
16400	16445-75180	Collar(For Radiator)
16431	16377-0A403	Inlet, Radiator Water
16431	16431-31480	Inlet, Radiator Water
16431	16492-0A380	Ring, O(For Radiator Water Inlet)
16465	16465-0A380	Packing, Radiator
16466	16466-0A380	Seal, Radiator
16467	16467-0A380	Side Seal
16470	16472-0A380	Hose Or Pipe(For Radiator Reserve Tank)
16471	16471-0A030	Cap Sub-Assy, Reserve Tank
16471	16406-0A380	Support Sub-Assy
16497	16495-0A140	Inlet Sub-Assy
16523	16523-0A020	Cushion, Radiator Support
16533	16505-0A090	Support, Radiator, No.1
16533	16505-0A110	Support, Radiator, No.1
16534	16506-0A090	Support, Radiator, No.2
16534	16506-0A110	Support, Radiator, No.2
16535	16535-0A090	Support, Radiator, Lower
16571	16571-AA020	Hose, Radiator, Inlet
16571	16571-AA021	Hose, Radiator, Inlet
16571	16571-AA040	Hose, Radiator, Inlet
16571	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-AA020	Hose, Radiator, Outlet
16572	16572-AA021	Hose, Radiator, Outlet
16572	90466-41006	Clamp Or Clip, Hose(For Radiator Inlet)
16701	90068-35004	Clamp Or Clip(For Radiator Reserve Tank Hose)
16711	16711-0A210	Shroud, Fan
16711	16711-0A220	Shroud, Fan
16711	16711-0A221	Shroud, Fan
16711	16711-0A240	Shroud, Fan
90467	90467-A0012	Clip(For Water Inlet Hose)
91511	91511-B0614	BOLT, FLANGE
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
4642134060	46421-34060	Clamp, No.8(For Parking Brake Cable)
9006804036	90068-04036	BOLT
9006903010	90069-03010	NUT
9008011543	90080-11543	New Genuine Part
9008046367	90080-46367	New Genuine Part
9009904119	90099-04119	BOLT WASHER HEAD
9338516012	93385-16012	New Genuine Part

OEM	Part name	Category
16041-0A380	Radiator Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16041-0A390	Radiator Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16041-0A391	Radiator Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16041-0A400	Radiator Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16041-0A401	Radiator Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16041-0A402	Radiator Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16041-0A403	Radiator Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16361-0A140	Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16361-0A150	Fan, No.2	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16361-0A200	Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16361-0A230	Fan, No.2	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16363-0A120	Motor, Cooling Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16363-0A130	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16363-0A140	Motor, Cooling Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16363-0A150	Motor, Cooling Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16363-0A210	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16377-0A403	Inlet, Radiator Water	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16406-0A380	Support Sub-Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16431-31480	Inlet, Radiator Water	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16444-0F020	Bushing(For Radiator)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16444-75180	Bushing(For Radiator)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16445-75180	Collar(For Radiator)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16465-0A380	Packing, Radiator	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16466-0A380	Seal, Radiator	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16467-0A380	Side Seal	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16471-0A030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16472-0A380	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16492-0A380	Ring, O(For Radiator Water Inlet)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16495-0A140	Inlet Sub-Assy	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16505-0A090	Support, Radiator, No.1	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16505-0A110	Support, Radiator, No.1	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16506-0A090	Support, Radiator, No.2	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16506-0A110	Support, Radiator, No.2	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16523-0A020	Cushion, Radiator Support	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16535-0A090	Support, Radiator, Lower	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16571-AA020	Hose, Radiator, Inlet	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16571-AA021	Hose, Radiator, Inlet	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16571-AA040	Hose, Radiator, Inlet	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16572-AA020	Hose, Radiator, Outlet	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16572-AA021	Hose, Radiator, Outlet	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16711-0A210	Shroud, Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16711-0A220	Shroud, Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16711-0A221	Shroud, Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
16711-0A240	Shroud, Fan	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
46421-34060	Clamp, No.8(For Parking Brake Cable)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90068-04036	BOLT	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90068-35004	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90069-03010	NUT	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90080-11347	New Genuine Part	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90080-11543	New Genuine Part	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90080-46367	New Genuine Part	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90466-41006	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90467-A0012	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
90910-09054	Plug, Radiator Drain Cock	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
91511-B0614	BOLT, FLANGE	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
93385-16012	New Genuine Part	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([09.2005 - ] (0509- )3MZFE)
