MCL10

Toyota SIENNA · 1997 · 6,093 parts · 243 categories
MCL10 ×

← Back to categories

6,093 items

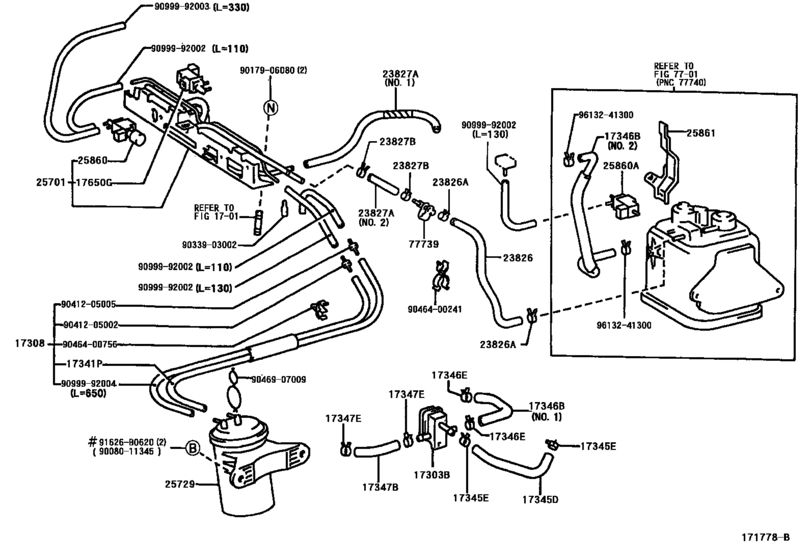

Vacuum Piping ([08.1998 - 08.2000] (9808-0008)) 48
#OEMPart name
17303 17303-0A010 Pipe Sub-Assy, Air, No.1
17303 17303-20010 Pipe Sub-Assy, Air, No.1
17308 17308-20050 Hose Sub-Assy, Vacuum(For Idle-Up)
17308 17308-20150 Hose Sub-Assy, Vacuum(For Idle-Up)
17341 17341-20040 Hose, Air
17341 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
17345 17345-0A020 Hose, Air, No.5
17345 17345-0A030 Hose, Air, No.5
17345 17345-20030 Hose, Air, No.5
17345 90467-16003 Clip Or Clamp(For Ventilation Hose)
17345 96133-41500 Clamp Or Clip(For Air Hose, No.5)
17345 96134-51500 Clip(For Ventilation Hose No.2)
17346 17346-0A010 Hose, Air, No.6
17346 17346-20040 Hose, Air, No.6
17346 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
17346 96132-51300 Clip(For Ventilation Hose No.2)
17346 90467-13070 Clip(For Air Hose No.6)
17347 17347-0A010 Hose, Air, No.7
17650 90910-12150 Valve, Duty Vacuum Switching
17650 90910-12196 Valve, Duty Vacuum Switching
17650 90910-12241 Valve, Duty Vacuum Switching
23826 23826-0A020 Hose, Fuel Vapor Feed, No.1
23826 96132-51100 Clip (For Hose)
23827 23827-0A020 Hose, Fuel Vapor Feed, No.2
23827 23827-20020 Hose, Fuel Vapor Feed, No.2
23827 23827-20030 Hose, Fuel Vapor Feed, No.2
25701 25701-20100 Valve Set, Emission Control
25701 25701-20160 Valve Set, Emission Control
25729 25729-0A010 Tank, Vacuum Surge W/bracket
25729 25729-20030 Tank, Vacuum Surge W/bracket
25860 25860-62010 Valve Assy, Vacuum Switching
25860 90910-12130 Valve, Vacuum Switching
25860 90910-12268 Valve, Vacuum Switching
25861 25861-20050 Bracket, Vacuum Switching Valve
77739 77739-06010 Valve, Evap Service Port
91626 91626-B0620 BOLT WWASHER
91626 91621-B0616 Bolt
9008011345 90080-11345 New Genuine Part
9017906080 90179-06080 NUT
9033903002 90339-03002 PLUG
9041205002 90412-05002 Way, 2(For Fuel Expansion Tank)
9041205005 90412-05005 New Genuine Part
9046400241 90464-00241 New Genuine Part
9046400756 90464-00756 New Genuine Part
9046907009 90469-07009 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
