Search › Model › MCL10

MCL10

Toyota SIENNA · 1997 · 6,093 parts · 243 categories
MCL10 ×

← Back to categories

6,093 items

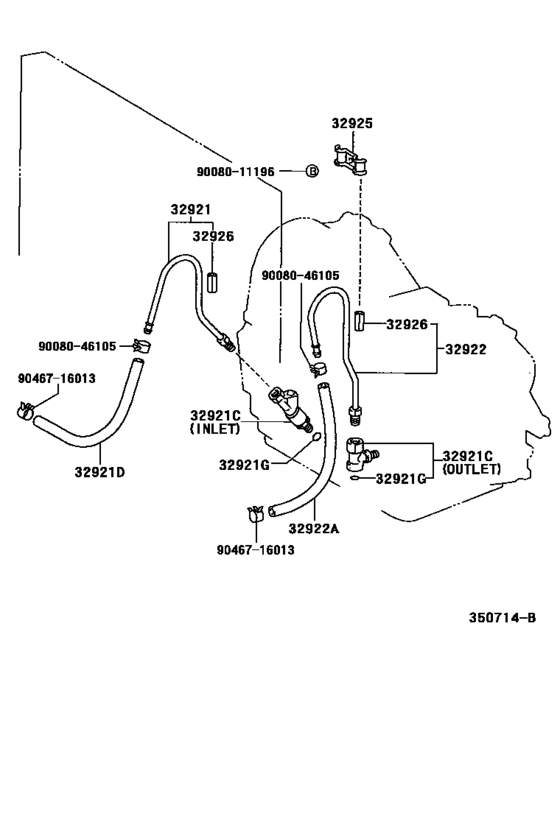

Oil Cooler & Tube (Atm) ([08.1997 - 08.2000] A540E (9708-0008)) 18
#OEMPart name
32921 32921-06060 Tube, Oil Cooler Inlet, No.1
32921 32921-08010 Tube, Oil Cooler Inlet, No.1
32921 32901-32050 Union(For Oil Cooler Tube)
32921 32918-45010 Union(For Oil Cooler Tube)
32921 90404-16031 Union(For Transaxle Housing)
32921 32941-06020 Hose(For Oil Cooler Inlet)
32921 90301-10189 Ring, O(For Oil Cooler Tube Union)
32922 32922-06060 Tube, Oil Cooler Outlet, No.1
32922 90080-44029 Hose(For Oil Cooler Inlet)
32922 90080-44077 Hose(For Oil Cooler Outlet)
32925 90462-12074 Clamp, Automatic Transmission Oil Cooler Tube
32926 32926-04010 Cushion, Oil Cooler Tube(Atm)
32926 32926-08010 Cushion, Oil Cooler Tube(Atm)
9008011196 90080-11196 New Genuine Part
9008046105 90080-46105 Clip(For Oil Cooler Hose)
9008046105 90467-A0012 Clip(For Water Inlet Hose)
9046716013 90467-16013 Clip(For Oil Return Hose)
9046716013 90467-16022 Clip(For Water Inlet Hose)
