Search › Model › MCL10

MCL10

Toyota SIENNA · 1997 · 6,093 parts · 243 categories
MCL10 ×

← Back to categories

6,093 items

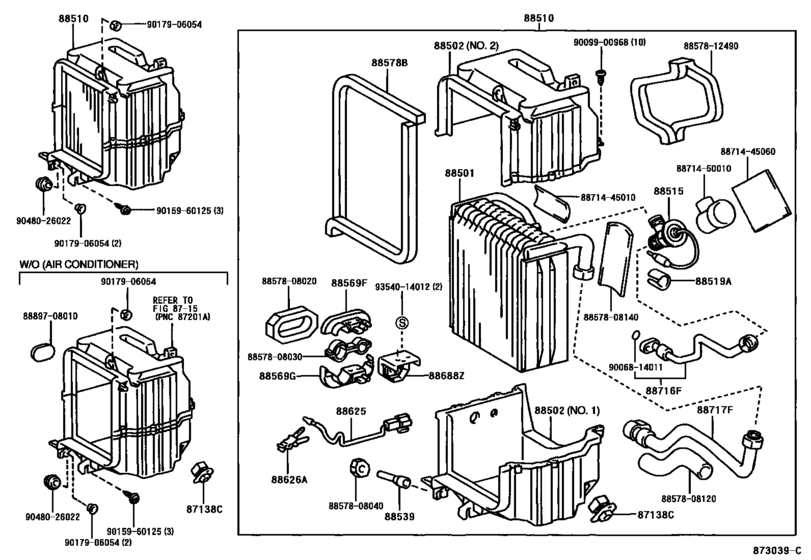

Heating & Air Conditioning - Cooler Unit ([08.1997 - 08.2000] FRONT (9708-0008)) 45
#OEMPart name
87138 87138-08010 Resistor, Blower
88501 88501-08020 Evaporator Sub-Assy, Cooler, No.1
88501 88501-08050 Evaporator Sub-Assy, Cooler, No.1
88502 88502-08020 Case Sub-Assy, Cooling Unit
88502 88502-08030 Case Sub-Assy, Cooling Unit
88502 88502-08040 Case Sub-Assy, Cooling Unit
88502 88521-08040 Case Sub-Assy, Cooling Unit
88502 88521-08080 Case Sub-Assy, Cooling Unit
88510 88510-08010 Unit Assy, Cooler
88510 88510-08040 Unit Assy, Cooler
88510 88510-08050 Unit Assy, Cooler
88515 88515-08050 Valve, Cooler Expansion
88515 88515-08060 Valve, Cooler Expansion
88519 88519-08010 Holder, Remote Bulb, Parts
88539 88539-89108 Hose, Cooler Unit Drain, No.1
88569 88569-08040 Clamp
88569 88569-08030 Clamp
88578 88578-20470 Packing, Cooling Unit, No.1
88625 88625-16210 Thermistor, Cooler, No.1
88625 88625-52020 Thermistor, Cooler, No.1
88626 88626-28010 Holder, Thermistor
88688 88688-45010 Bracket
88716 88716-08020 Pipe, Cooler Refrigerant Liquid, F
88716 88716-08190 Pipe, Cooler Refrigerant Liquid, F
88717 88717-08020 Pipe, Cooler Refrigerant Suction, F
88717 88717-08320 Pipe, Cooler Refrigerant Suction, F
8857808020 88578-08020 Paking, Cooler Air Duct
8857808030 88578-08030 Paking, Cooler Air Duct
8857808040 88578-08040 Paking, Cooler Air Duct
8857808120 88578-08120 Packing, Cooler Pipe, No.1
8857808140 88578-08140 Paking, Cooler Air Duct
8857812490 88578-12490 Packing, Cooling Unit, No.2
8871445010 88714-45010 Hose, Cooler Refrigerant Liquid, No.1
8871445010 88714-45050 Hose, Cooler Refrigerant Liquid, No.1
8871445060 88714-45060 Hose, Cooler Refrigerant Liquid, No.1
8871450010 88714-50010 Hose, Cooler Refrigerant Liquid, No.1
8889708010 88897-08010 Valve, Cooler Magnet
9006814011 90068-14011 New Genuine Part
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9015960125 90159-60125 New Genuine Part
9015960125 90159-60383 SCREW WWASHER
9017906054 90179-06054 NUT
9017906054 90179-06314 NUT
9048026022 90480-26022 Grommet (For Cooler Unit)
9354014012 93540-14012 Screw
Source
Public OEM parts-catalog data
Variants
1 / 10
Category
243
Collected
2026-08-04
