MCL10

Toyota SIENNA · 1997 · 6,093 parts · 243 categories
MCL10 ×

← Back to categories

6,093 items

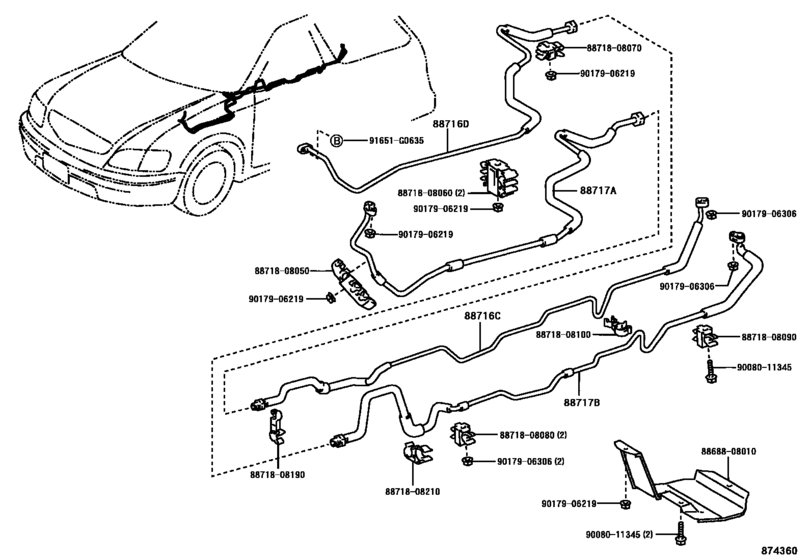

Heating & Air Conditioning - Cooler Piping ([08.2000 - ] REAR (0008- )) 25
#OEMPart name
88716 88715-08090 Pipe, Cooler Refrigerant Liquid, C
88716 88716-08170 Pipe, Cooler Refrigerant Liquid, C
88716 88715-08060 Pipe, Cooler Refrigerant Liquid, D
88716 88715-08100 Pipe, Cooler Refrigerant Liquid, D
88716 88716-08160 Pipe, Cooler Refrigerant Liquid, D
88717 88717-08180 Pipe, Cooler Refrigerant Suction, A
88717 88717-08240 Pipe, Cooler Refrigerant Suction, A
88717 88717-08330 Pipe, Cooler Refrigerant Suction, A
88717 88717-08210 Pipe, Cooler Refrigerant Suction, B
88717 88717-08250 Pipe, Cooler Refrigerant Suction, B
88717 88717-08300 Pipe, Cooler Refrigerant Suction, B
91651 91651-G0635 New Genuine Part
8868808010 88688-08010 Bracket, Cooler Diaphragm
8871808050 88718-08050 Pipe, Cooler Refrigerant Suction, No.2
8871808060 88718-08060 Pipe, Cooler Refrigerant Suction, No.2
8871808070 88718-08070 Pipe, Cooler Refrigerant Suction, No.2
8871808080 88718-08080 Pipe, Cooler Refrigerant Suction, No.2
8871808090 88718-08090 Pipe, Cooler Refrigerant Suction, No.2
8871808100 88718-08100 Pipe, Cooler Refrigerant Suction, No.2
8871808190 88718-08190 Pipe, Cooler Refrigerant Suction, No.2
8871808210 88718-08210 Pipe, Cooler Refrigerant Suction, No.2
9008011345 90080-11345 New Genuine Part
9017906219 90179-06219 Nut
9017906219 90182-A0005 Nut
9017906306 90179-06306 NUT
