MCL10

Toyota SIENNA · 1997 · 6,093 parts · 243 categories

6,093 items

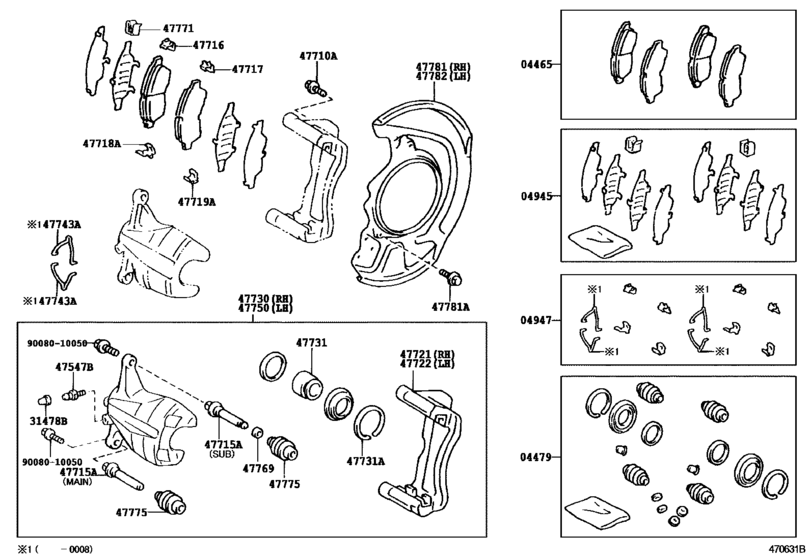

Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- )) 48

#	OEM	Part name
4465	04465-45020	Pad Kit, Disc Brake, Front
4465	04465-45021	Pad Kit, Disc Brake, Front
4479	04479-06060	Cylinder Kit, Disc Brake, Front
4479	04478-08081	Cylinder Kit, Disc Brake, Front
4479	04479-08010	Cylinder Kit, Disc Brake, Front
4479	04479-08020	Cylinder Kit, Disc Brake, Front
4945	04945-06040	Shim Kit, Anti Squeal, Front
4945	04945-45010	Shim Kit, Anti Squeal, Front
4947	04947-08010	Fitting Kit, Disc Brake, Front
4947	04947-08020	Fitting Kit, Disc Brake, Front
4947	04947-08030	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47710	90080-10067	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-06020	Pin, Front Disc Brake Cylinder Slide
47715	47715-06030	Pin, Front Disc Brake Cylinder Slide
47716	47716-08010	Plate, Pad Support, No.1(For Front Disc Brake)
47716	47716-08011	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47716-08020	Plate, Pad Support, No.2(For Front Disc Brake)
47717	47716-08021	Plate, Pad Support, No.2(For Front Disc Brake)
47718	47717-08010	Plate, Pad Support, No.3(For Front Disc Brake)
47718	47717-08011	Plate, Pad Support, No.3(For Front Disc Brake)
47719	47717-08020	Plate, Pad Support, No.4(For Front Disc Brake)
47719	47717-08021	Plate, Pad Support, No.4(For Front Disc Brake)
47721	47721-08010	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-08011	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-08010	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-08011	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-08010	Cylinder Assy, Front Disc Brake, Rh
47730	47730-08020	Cylinder Assy, Front Disc Brake, Rh
47731	47731-08010	Piston, Front Disc Brake
47731	47731-08020	Piston, Front Disc Brake
47731	90080-52079	Ring, Set(For Front Disc Brake Piston)
47731	90080-52108	Ring, Set(For Front Disc Brake Piston)
47743	47743-06010	Spring, Anti-Squeal(For Front Disc Brake)
47750	47750-08010	Cylinder Assy, Disc Brake, Lh
47750	47750-08020	Cylinder Assy, Disc Brake, Lh
47769	47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-50010	Plate, Pad Wear Indicator, No.1
47775	47775-06030	Boot, Bush Dust(For Front Disc Brake)
47781	47781-06020	Cover, Disc Brake Dust, Front Rh
47781	47781-08010	Cover, Disc Brake Dust, Front Rh
47781	90080-11429	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47781	90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782	47782-06020	Cover, Disc Brake Dust, Front Lh
47782	47782-08010	Cover, Disc Brake Dust, Front Lh
9008010050	90080-10050	Bolt(For Front Disc Brake Cylinder Slide)
9008010050	90016-AA103	Bolt(For Front Disc Brake Cylinder Slide)

OEM	Part name	Category
04465-45020	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04465-45021	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04478-08081	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04479-06060	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04479-08010	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04479-08020	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04945-06040	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04945-45010	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04947-08010	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04947-08020	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
04947-08030	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47715-06020	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47715-06030	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47716-08010	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47716-08011	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47716-08020	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47716-08021	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47717-08010	Plate, Pad Support, No.3(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47717-08011	Plate, Pad Support, No.3(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47717-08020	Plate, Pad Support, No.4(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47717-08021	Plate, Pad Support, No.4(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47721-08010	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47721-08011	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47722-08010	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47722-08011	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47730-08010	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47730-08020	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47731-08010	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47731-08020	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47743-06010	Spring, Anti-Squeal(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47750-08010	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47750-08020	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47771-50010	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47775-06030	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47781-06020	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47781-08010	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47782-06020	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
47782-08010	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
90016-AA103	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
90080-10050	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
90080-10067	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
90080-11429	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
90080-52079	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
90080-52108	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([08.1997 - ] (9708- ))
