MCL10

Toyota SIENNA · 1997 · 6,093 parts · 243 categories

6,093 items

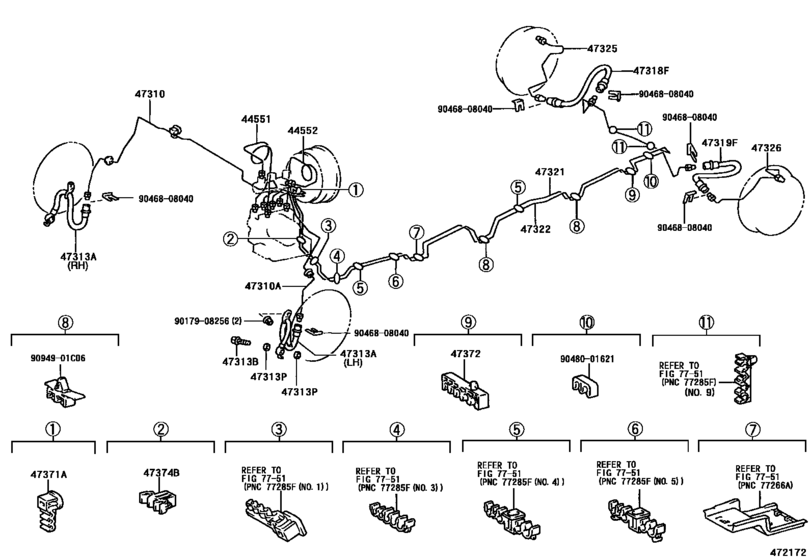

Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107)) 31

#	OEM	Part name
44551	44551-08010	Tube, Brake Actuator, No.1
44552	44552-08010	Tube, Brake Actuator, No.2
47310	47310-08010	Tube Assy, Brake, No.1
47310	47310-08012	Tube Assy, Brake, No.1
47310	47310-08021	Tube Assy, Brake, No.1
47310	47320-08010	Tube Assy, Brake, No.2
47310	47320-08012	Tube Assy, Brake, No.2
47310	47320-08021	Tube Assy, Brake, No.2
47313	90080-44075	Hose, Flexible, No.1(For Front)
47313	90080-44076	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47318	90080-44074	Hose, Flexible(For Rear Rh)
47321	47321-08010	Tube, Rear Brake, No.1
47321	47321-08030	Tube, Rear Brake, No.1
47321	47321-08031	Tube, Rear Brake, No.1
47321	47321-08041	Tube, Rear Brake, No.1
47322	47322-08010	Tube, Rear Brake, No.2
47322	47322-08030	Tube, Rear Brake, No.2
47322	47322-08031	Tube, Rear Brake, No.2
47322	47322-08041	Tube, Rear Brake, No.2
47325	47325-08010	Tube, Rear Brake, No.5
47326	47326-08010	Tube, Rear Brake, No.6
47371	47371-08020	Clamp, Brake Tube, No.1
47371	47371-08021	Clamp, Brake Tube, No.1
47372	47371-08031	Clamp, Brake Tube, No.2
47374	77285-08030	Clamp, Brake Tube, No.1
9094901	90949-01C06	Clamp, Brake Tube, No.6
9017908256	90179-08256	NUT
9046808040	90468-08040	CLIP
9048001621	90480-01621	Grommet(For Front Brake Tube)

OEM	Part name	Category
44551-08010	Tube, Brake Actuator, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
44552-08010	Tube, Brake Actuator, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47310-08010	Tube Assy, Brake, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47310-08012	Tube Assy, Brake, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47310-08021	Tube Assy, Brake, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47320-08010	Tube Assy, Brake, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47320-08012	Tube Assy, Brake, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47320-08021	Tube Assy, Brake, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47321-08010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47321-08030	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47321-08031	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47321-08041	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47322-08010	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47322-08030	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47322-08031	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47322-08041	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47325-08010	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47326-08010	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47371-08020	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47371-08021	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
47371-08031	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
77285-08030	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90080-44074	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90080-44075	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90080-44076	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90179-08256	NUT	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90468-08040	CLIP	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90480-01621	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
90949-01C06	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.2000 - 07.2001] (0008-0107))
