Search › Model › MCL10
MCL10

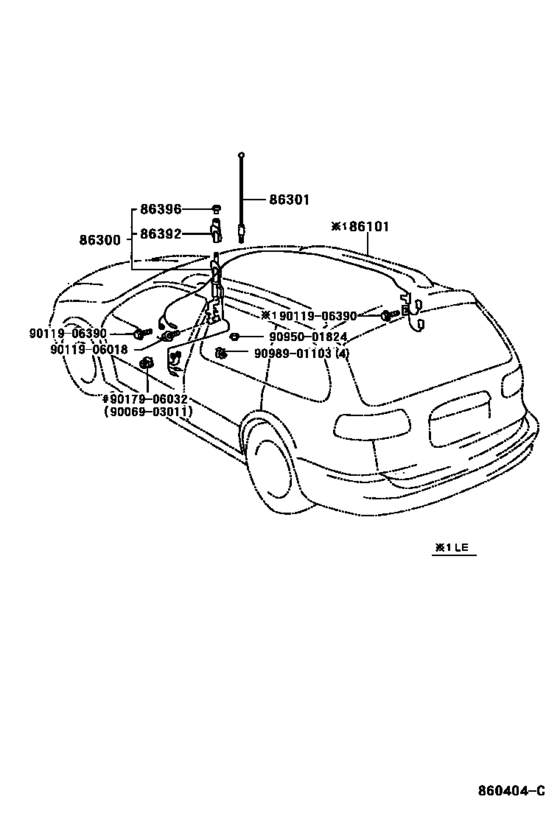

Antenna ([08.1997 - ] (9708- )) 15
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-08010 | Cord Sub-Assy, Antenna |
| 86101 | 86101-08020 | Cord Sub-Assy, Antenna |
| 86300 | 86300-08010 | Antenna Assy, W/holder |
| 86300 | 86300-08020 | Antenna Assy, W/holder |
| 86301 | 86309-AA040 | Pole Sub-Assy, Antenna - PULL TOP ANTENNA |
| 86301 | 86309-0C020 | Pole Sub-Assy, Pull Top Antenna |
| 86392 | 86392-08010 | Ornament, Antenna |
| 86396 | 86396-08010 | Nut, Antenna |
| 9006903011 | 90069-03011 | Nut (for Oil Cooler Tube) |
| 9006903011 | 90179-06274 | Nut |
| 9011906018 | 90119-06018 | New Genuine Part |
| 9011906390 | 90119-06390 | BOLT WWASHER |
| 9017906032 | 90179-06032 | Direct |
| 9095001824 | 90950-01824 | PLUG HOLE |
| 9098901103 | 90989-01103 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 86101-08010 | Cord Sub-Assy, Antenna | Antenna ([08.1997 - ] (9708- )) |
| 86101-08020 | Cord Sub-Assy, Antenna | Antenna ([08.1997 - ] (9708- )) |
| 86300-08010 | Antenna Assy, W/holder | Antenna ([08.1997 - ] (9708- )) |
| 86300-08020 | Antenna Assy, W/holder | Antenna ([08.1997 - ] (9708- )) |
| 86309-0C020 | Pole Sub-Assy, Pull Top Antenna | Antenna ([08.1997 - ] (9708- )) |
| 86309-AA040 | Pole Sub-Assy, Antenna - PULL TOP ANTENNA | Antenna ([08.1997 - ] (9708- )) |
| 86392-08010 | Ornament, Antenna | Antenna ([08.1997 - ] (9708- )) |
| 86396-08010 | Nut, Antenna | Antenna ([08.1997 - ] (9708- )) |
| 90069-03011 | Nut (for Oil Cooler Tube) | Antenna ([08.1997 - ] (9708- )) |
| 90119-06018 | New Genuine Part | Antenna ([08.1997 - ] (9708- )) |
| 90119-06390 | BOLT WWASHER | Antenna ([08.1997 - ] (9708- )) |
| 90179-06032 | Direct | Antenna ([08.1997 - ] (9708- )) |
| 90179-06274 | Nut | Antenna ([08.1997 - ] (9708- )) |
| 90950-01824 | PLUG HOLE | Antenna ([08.1997 - ] (9708- )) |
| 90989-01103 | New Genuine Part | Antenna ([08.1997 - ] (9708- )) |
