Search › Model › MC3
MC3

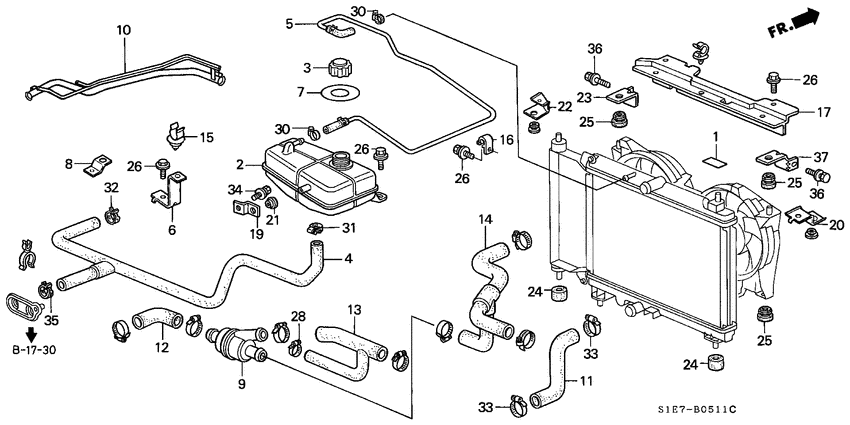

Radiator hose (DIESEL) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 19018-P42-G00 | Mark - FAN CAUTION |
| 2 | 19101-P9M-E00 | Tank comp. - EXPANSION |
| 3 | 19102-P5T-G00 | Cap - EXPANSION TANK |
| 6 | 19108-P9M-E01 | Stay - PIPE CLAMP |
| 7 | 19110-SK4-E00 | Label - EXPANSION TANK |
| 8 | 19114-P9M-E00 | Stay - CLAMP |
| 9 | 19302-P5T-G01 | Thermostat |
| 10 | 19500-P5T-G00 | Pipe comp - COOLANT & FUEL |
| 12 | 19504-P5T-G00 | Hose - THERMOSTAT |
| 13 | 19505-P5T-G01 | Hose - WATER PUMP |
| 14 | 19506-P5T-G00 | Hose - WATER OUTLET |
| 15 | 19519-P9M-E00 | Clamp - WATER HOSE |
| 16 | 32175-P5T-G00 | Clip - HARNESS |
| 17 | 74148-S74-E01 | Panel - BLANK |
| 19 | 74175-S74-G00 | Bracket - EXPANSION TANK |
| 20 | 74176-S74-E00 | Bracket - R. RADIATOR MOUNTING UPPER |
| 21 | 74177-S74-G00 | Grommet - TANK SETTING |
| 22 | 74178-S74-E00 | Bracket - L. RADIATOR MOUNTING UPPER |
| 26 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) |
| 28 | 90609-P5T-G00 | Clip - HOUE |
| OEM | Part name | Category |
|---|---|---|
| 19018-P42-G00 | Mark - FAN CAUTION | Radiator hose (DIESEL) |
| 19101-P9M-E00 | Tank comp. - EXPANSION | Radiator hose (DIESEL) |
| 19102-P5T-G00 | Cap - EXPANSION TANK | Radiator hose (DIESEL) |
| 19108-P9M-E01 | Stay - PIPE CLAMP | Radiator hose (DIESEL) |
| 19110-SK4-E00 | Label - EXPANSION TANK | Radiator hose (DIESEL) |
| 19114-P9M-E00 | Stay - CLAMP | Radiator hose (DIESEL) |
| 19302-P5T-G01 | Thermostat | Radiator hose (DIESEL) |
| 19500-P5T-G00 | Pipe comp - COOLANT & FUEL | Radiator hose (DIESEL) |
| 19504-P5T-G00 | Hose - THERMOSTAT | Radiator hose (DIESEL) |
| 19505-P5T-G01 | Hose - WATER PUMP | Radiator hose (DIESEL) |
| 19506-P5T-G00 | Hose - WATER OUTLET | Radiator hose (DIESEL) |
| 19519-P9M-E00 | Clamp - WATER HOSE | Radiator hose (DIESEL) |
| 32175-P5T-G00 | Clip - HARNESS | Radiator hose (DIESEL) |
| 74148-S74-E01 | Panel - BLANK | Radiator hose (DIESEL) |
| 74175-S74-G00 | Bracket - EXPANSION TANK | Radiator hose (DIESEL) |
| 74176-S74-E00 | Bracket - R. RADIATOR MOUNTING UPPER | Radiator hose (DIESEL) |
| 74177-S74-G00 | Grommet - TANK SETTING | Radiator hose (DIESEL) |
| 74178-S74-E00 | Bracket - L. RADIATOR MOUNTING UPPER | Radiator hose (DIESEL) |
| 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Radiator hose (DIESEL) |
| 90609-P5T-G00 | Clip - HOUE | Radiator hose (DIESEL) |
