Search › Model › MC3
MC3

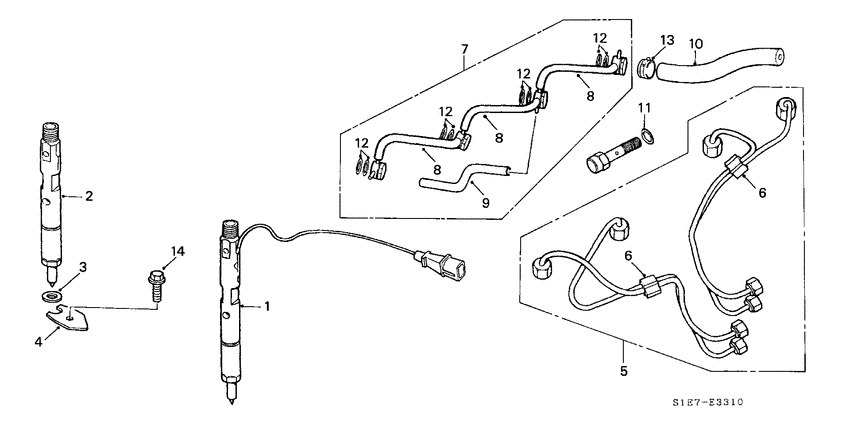

Fuel injector (DIESEL) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 16450-P5T-G01 | Injector - FUEL MAIN |
| 2 | 16450-P5T-G11 | Sub injector - FUEL |
| 3 | 16472-P5T-G00 | Washer - INJECTOR SEAL |
| 4 | 16474-P5T-G00 | Clamp - INJECTOR |
| 5 | 16610-P5T-G01 | Pipe comp - FUEL |
| 6 | 16611-P5T-G00 | Clip A - FUEL PIPE |
| 7 | 16750-P5T-G01 | Pipe assy. - FUEL RETURN |
| 8 | 16751-P5T-G00 | Hose a - FUEL RETURN |
| 9 | 16752-P5T-G00 | Hose b - FUEL RETURN |
| 10 | 16756-P5T-G00 | Hose c - FUEL RETURN |
| 11 | 90404-P5T-G00 | Washer |
| 12 | 90405-P5T-G00 | Washer |
| 13 | 90602-P5T-G00 | Clip - FUEL RETURN HOSE |
| OEM | Part name | Category |
|---|---|---|
| 16450-P5T-G01 | Injector - FUEL MAIN | Fuel injector (DIESEL) |
| 16450-P5T-G11 | Sub injector - FUEL | Fuel injector (DIESEL) |
| 16472-P5T-G00 | Washer - INJECTOR SEAL | Fuel injector (DIESEL) |
| 16474-P5T-G00 | Clamp - INJECTOR | Fuel injector (DIESEL) |
| 16610-P5T-G01 | Pipe comp - FUEL | Fuel injector (DIESEL) |
| 16611-P5T-G00 | Clip A - FUEL PIPE | Fuel injector (DIESEL) |
| 16750-P5T-G01 | Pipe assy. - FUEL RETURN | Fuel injector (DIESEL) |
| 16751-P5T-G00 | Hose a - FUEL RETURN | Fuel injector (DIESEL) |
| 16752-P5T-G00 | Hose b - FUEL RETURN | Fuel injector (DIESEL) |
| 16756-P5T-G00 | Hose c - FUEL RETURN | Fuel injector (DIESEL) |
| 90404-P5T-G00 | Washer | Fuel injector (DIESEL) |
| 90405-P5T-G00 | Washer | Fuel injector (DIESEL) |
| 90602-P5T-G00 | Clip - FUEL RETURN HOSE | Fuel injector (DIESEL) |
